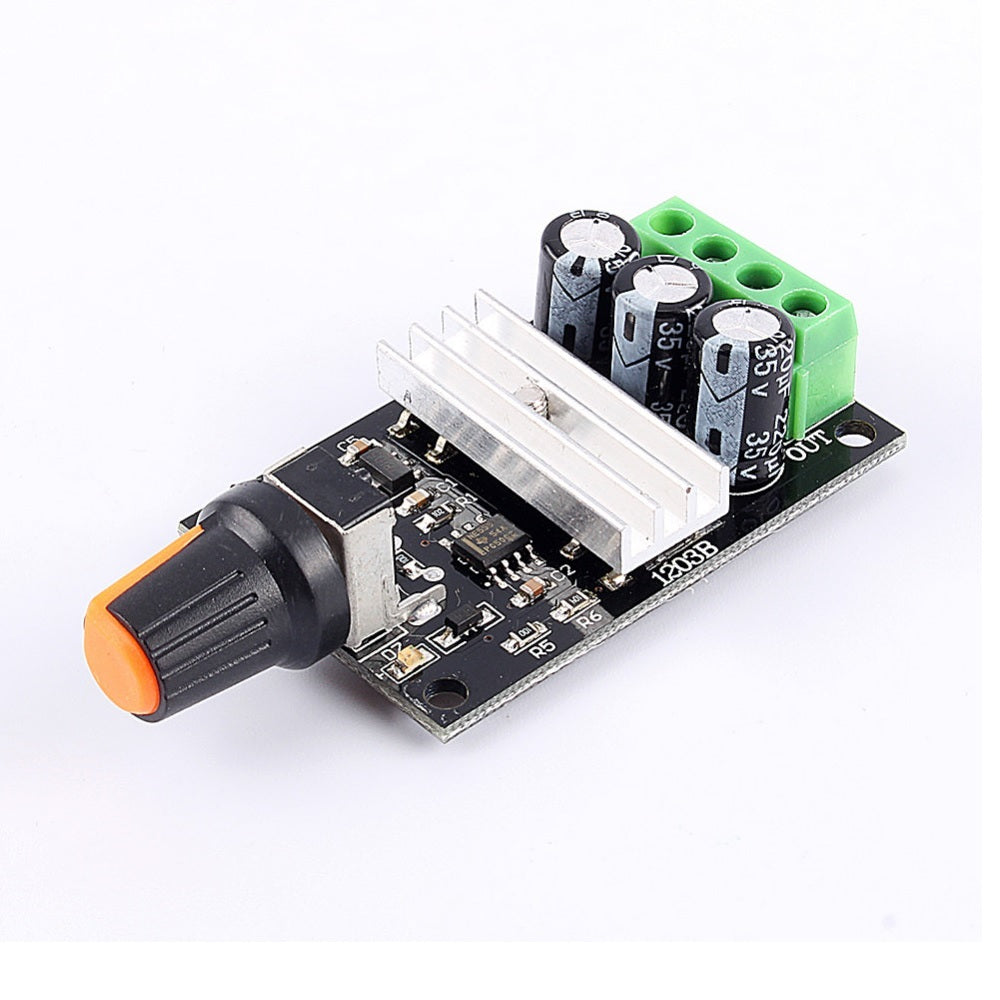

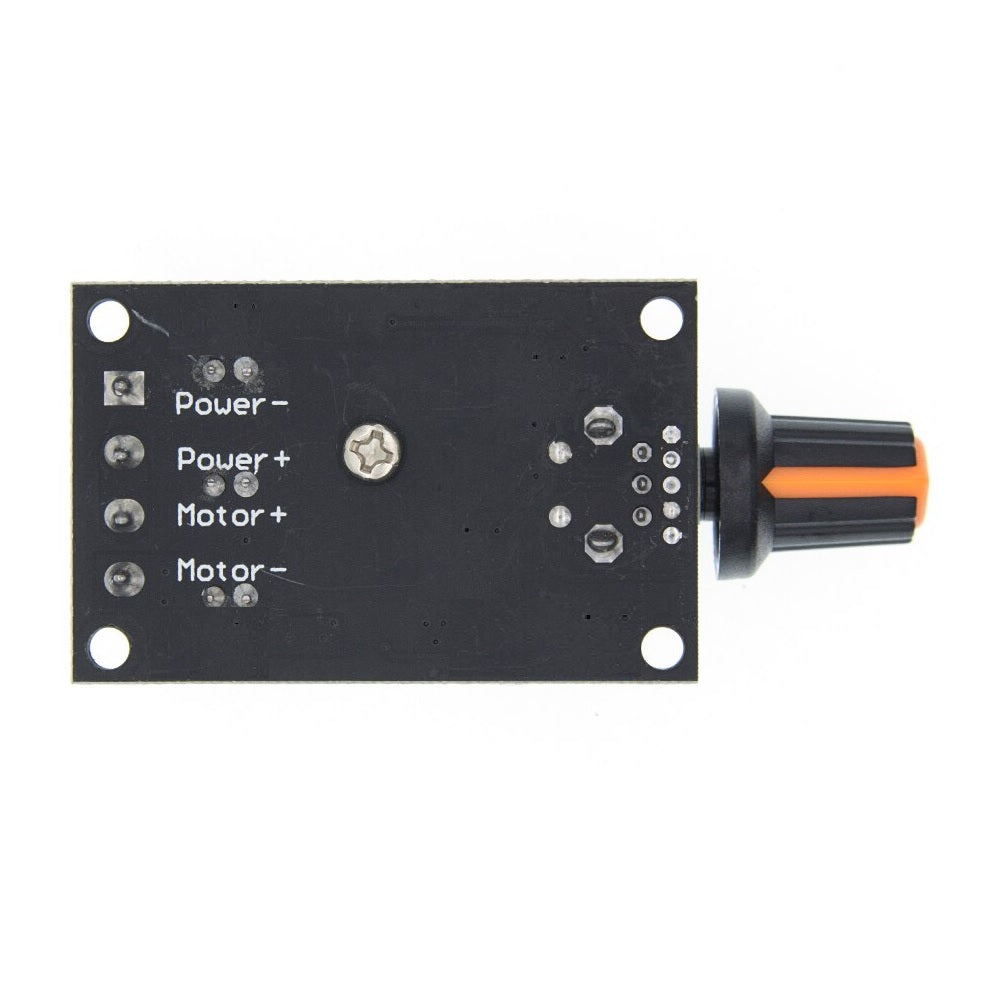

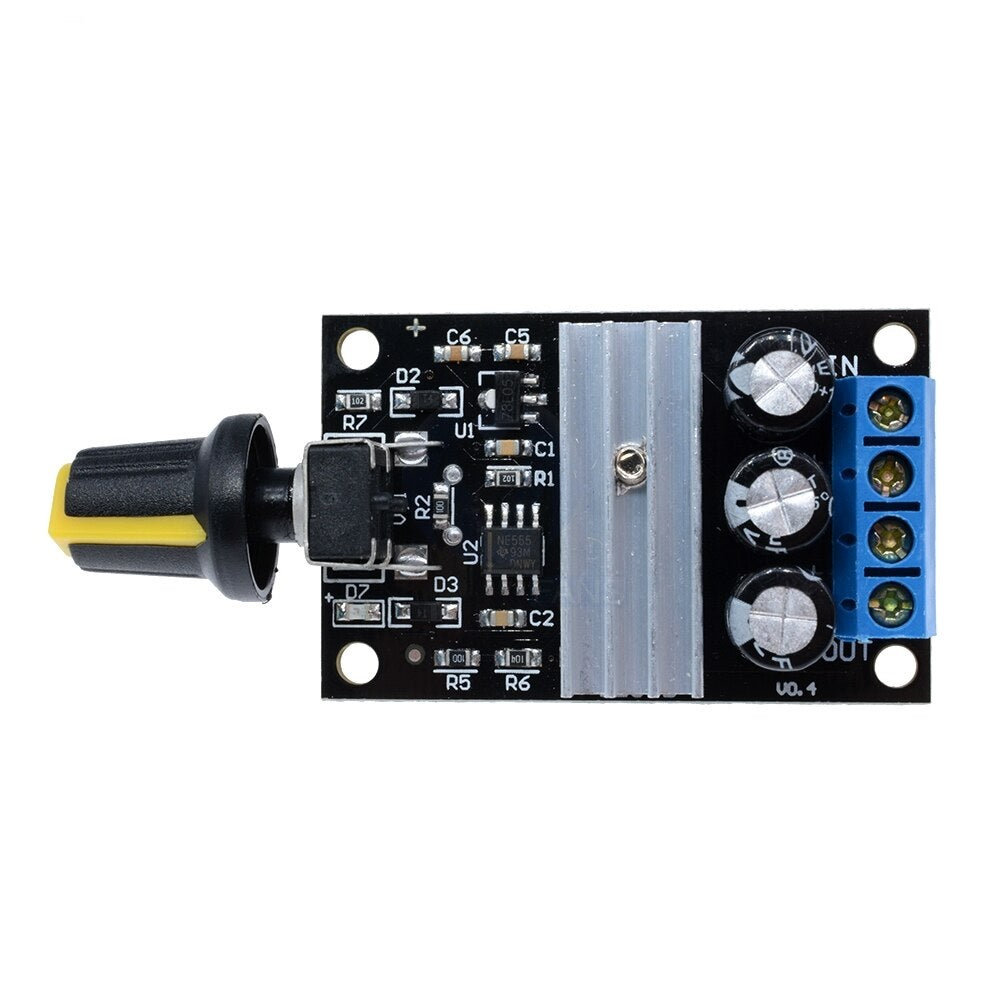

PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator

SKU: VM340

Send Inquiry

Description

This PWM 6V 12V 24V 28V 3A DC Motor Speed Regulator allows controlling the speed of a motor.

Technical Specification:

  • Voltage range: DC6V – 28V
  • Current range: Within 3A
  • Switch function: None
  • Speed range: 0-100%
  • Size: 65 x 30 x 15mm

Features:

  • With this controller, you can easily control the DC motor speed between 6V and 28V
  • It is a card that produces high efficiency, high torque, low heat
  • Reverse polarity protection, high current protection
  • With the potentiometer on the circuit you can change the motor speed from 0% to 100%
  • In addition to DC motor speed controls, you can also provide cooling control by setting the cooling power to a potentiometer depending on the current power in your Peltier cooling / heating projects

Applications:

  • For Speed Control Of all Types of DC Brush Motors
  • For Controlling Automotive Cooling Fan Speed, Auto Fan Speed, Windshield Wipers, Auto Air Conditioning
  • For Controlling Belt Speed, Pipeline Exhaust Fan Speed, Treadmill Speed, Multi-Speed Parallel Computer Fan, Electronic Fan Speed
