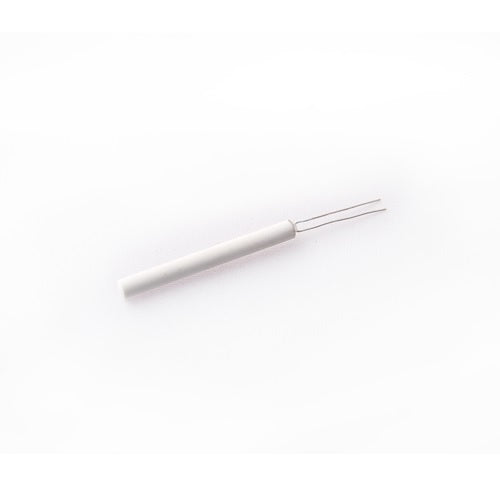

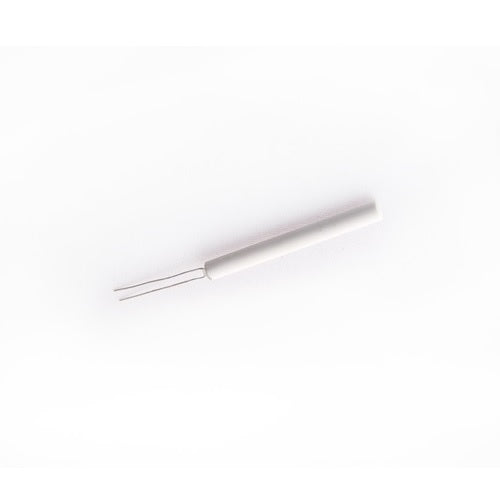

PT100 Ceramic RTD Temperature Sensor

SKU: VS00089

Send Inquiry


An RTD sensor (Resistance Temperature Detector) is a platinum resistance thermometer, also known as an platinum sensor or PT100 sensor. These sensors have been designed to meet the challenge of accurate temperature.  PT100 RTD elements measure temperature by the change in resistance values of the platinum wires during heating or cooling.

Technical Specification:

  • Sensor Type: PT100
  • Probe Length: 35mm
  • Probe Diameter: 5mm
  • Minimum Temperature Sensed: -50°C
  • Maximum Temperature Sensed: +450°C
  • Termination Type: Lead Wire
  • Cable Length: 450mm
  • Probe Material: Platinum
  • Process Connection: Probe
  • Number Of Wires: 4


  • High stability thin film sensing element with a precision output
  • Protective ceramic sheath


  • Air conditioning and refrigeration
  • Chemical industry
  • Plastics processing
  • Stoves and grills
  • Air, gas and liquid temperature measurement
  • Exhaust gas temperature measurement
  • Food processing
  • Laboratories
