Description

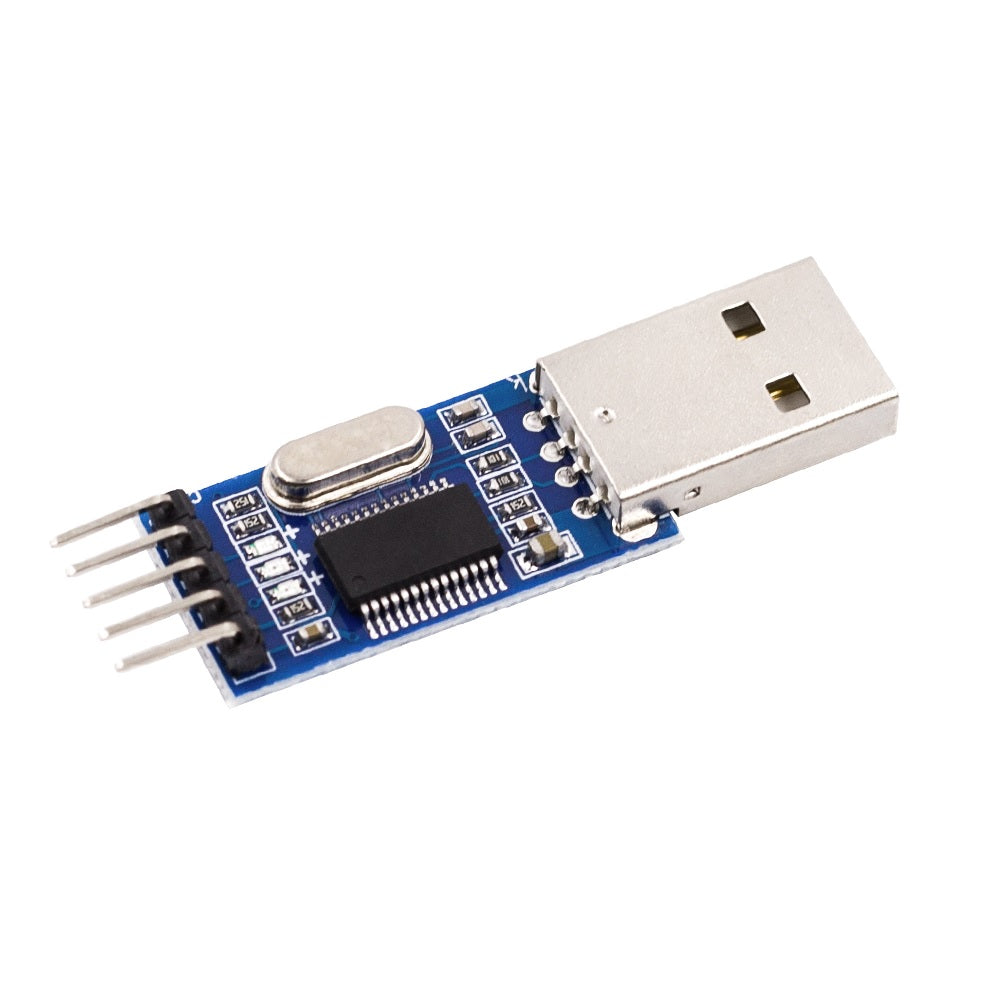

datahe PL-2303HX is a low cost and high performance USB-to-Serial Bridge Controller. The PL-2303HX provides a convenient solution for connecting an RS-232 full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. The PL-2303HX highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready. The PL-2303HX is exclusively designed for mobile and embedded solutions in mind, providing a small footprint that could easily fit in to any connectors and handheld devices.
Technical Specification:
- Model :PL2303H
- Operating Temperature : -40°C to 85° C
- Input supply voltage(v):3 ~ 5
- Size: 5mm*6.5mm (L*W)
Features:
- Built-in USB to TTL Transfer chip
- Designed to be used for USB to TTL electronic projects
- TTL interface output, easy to connect to your MCU
- Status LED
- Plastic coating protection from standard wear and tear
- Adopt imported controller PL2303HX,which can stabilize the flash with high speed
- 500mA self recovery fuse for protection
- The entire board is coated by the high quality transparent heat-shrinkable sleeve, making the PCB in insulation state from outside,
- Electrostatic package ensures the board will not be damaged before use
- Compact size
- Minimal external components required
Applications:
- Debug purpose in the development
- Microcontroller to PC communication
- Programming related purposes
- Microcontroller to PC communication or data transfer
- Debug purpose in the development
- All kinds of satellite set-top box upgrade
