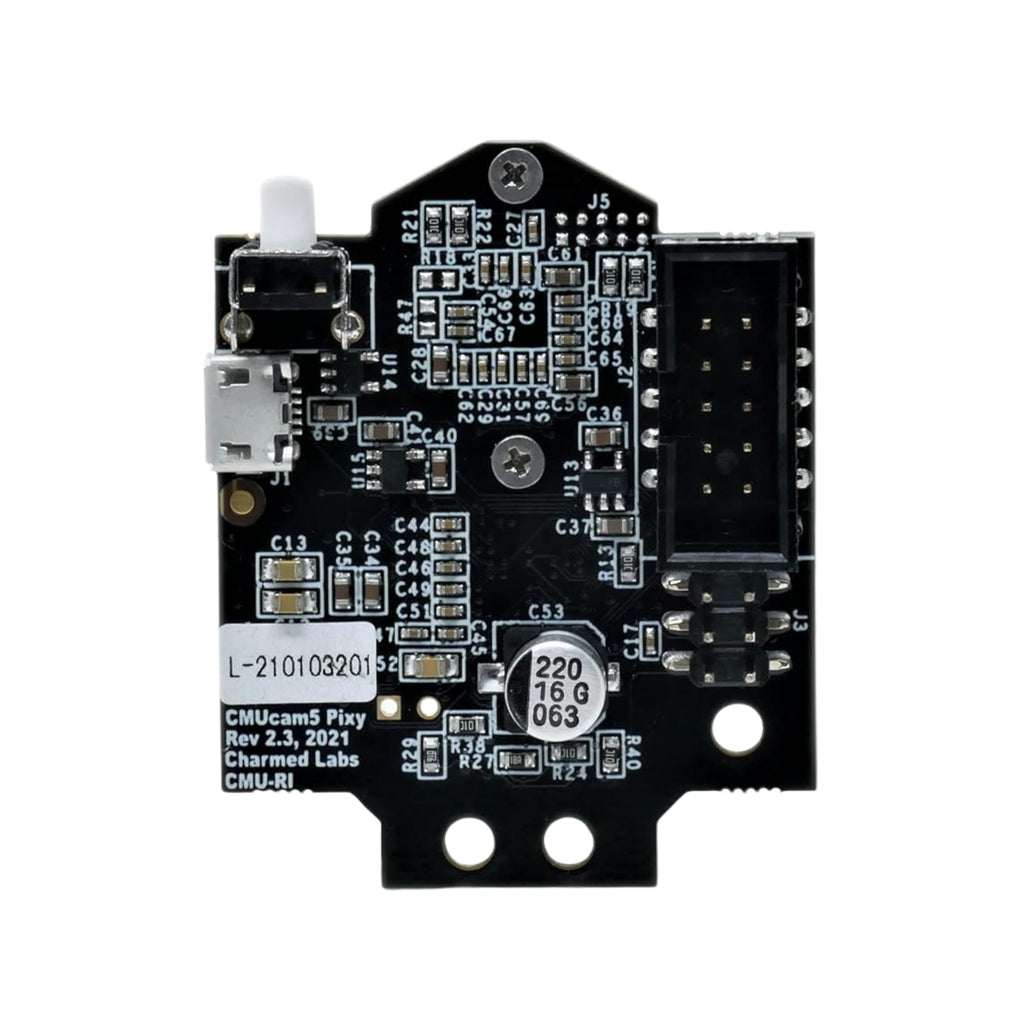

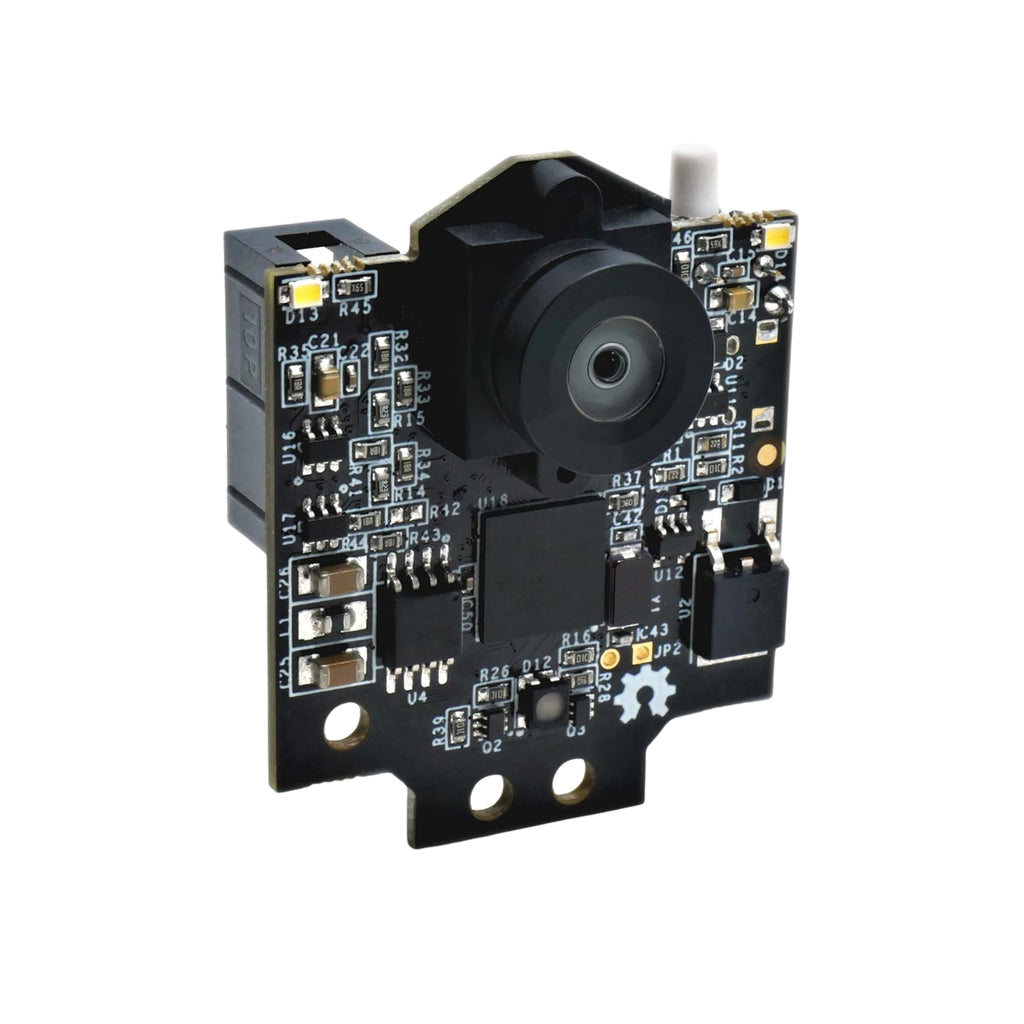

Pixy 2.1 Smart Vision Sensor Smart Object Tracking Camera

Pixy 2.1 is a fast, compact smart vision camera designed for real-time object detection and tracking. It processes images internally using an onboard processor, allowing microcontrollers to receive high-level vision data instead of raw images. Pixy 2.1 is optimized for speed and simplicity, making it ideal for robotics and embedded projects where quick visual response is required.

Technical Specifications:

• Processor: Dual-core microcontroller with image signal processing
• Camera Resolution: 1296 × 976 pixels
• Frame Rate: Up to 60 frames per second
• Lens: Wide-angle lens with adjustable focus
• Operating Voltage: 5 V
• Interfaces: SPI, I2C, UART, USB
• Color Detection: RGB color-based tracking
• Lighting: Built-in RGB LED indicators
• Mounting: Standard mounting holes
• Compatibility: Arduino, Raspberry Pi, ESP32, microcontrollers and PCs

Features:

• High-speed object detection and tracking
• Onboard image processing reduces MCU load
• Multiple interfaces for flexible integration
• Supports color signatures, line tracking, and barcode detection
• Improved tracking algorithms over previous Pixy versions
• Configurable via PixyMon software
• Compact and lightweight design

Applications:

• Line-following and autonomous robots
• Object tracking and sorting systems
• Educational robotics and STEM projects
• Industrial automation prototypes
• Interactive installations
• Research and rapid vision prototyping
