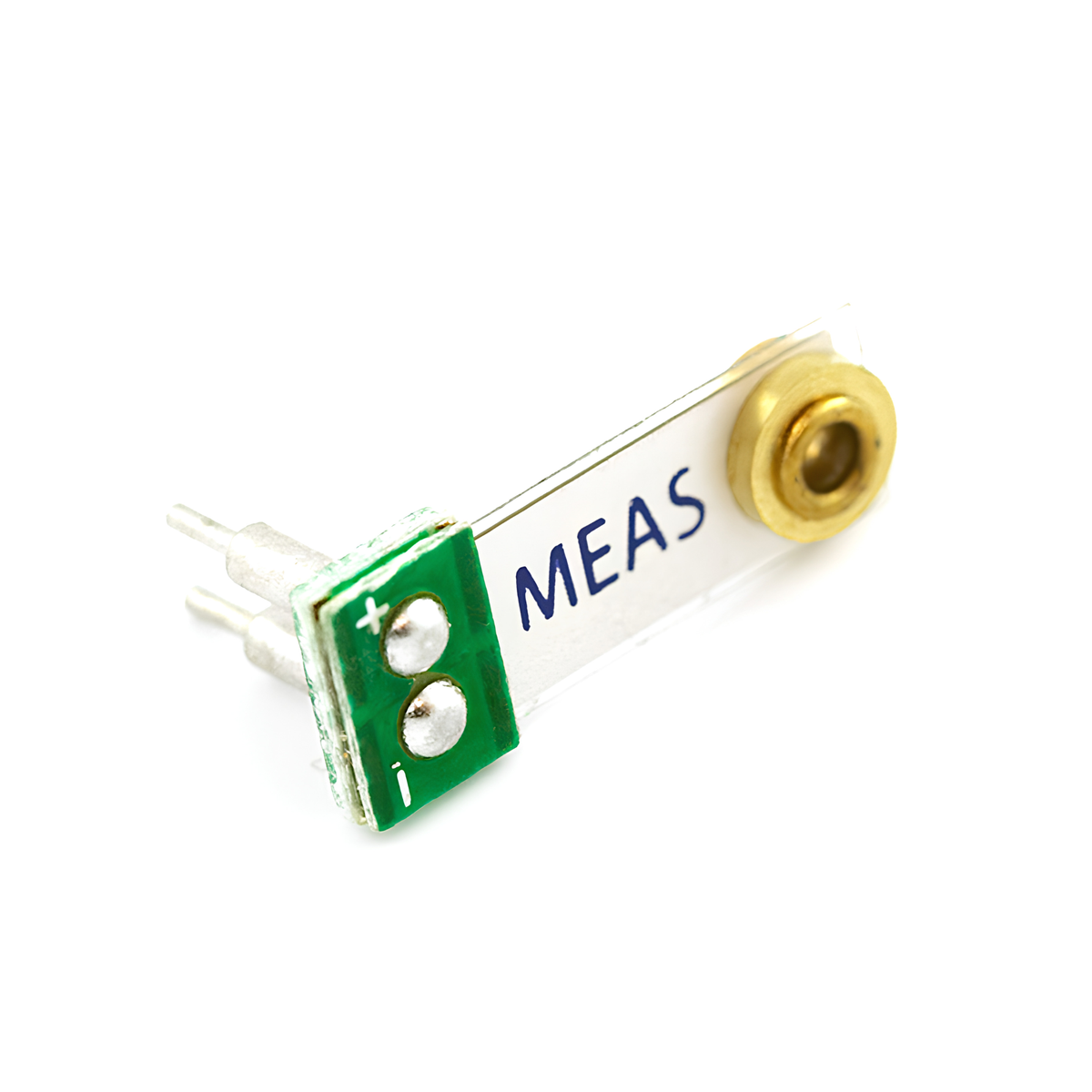

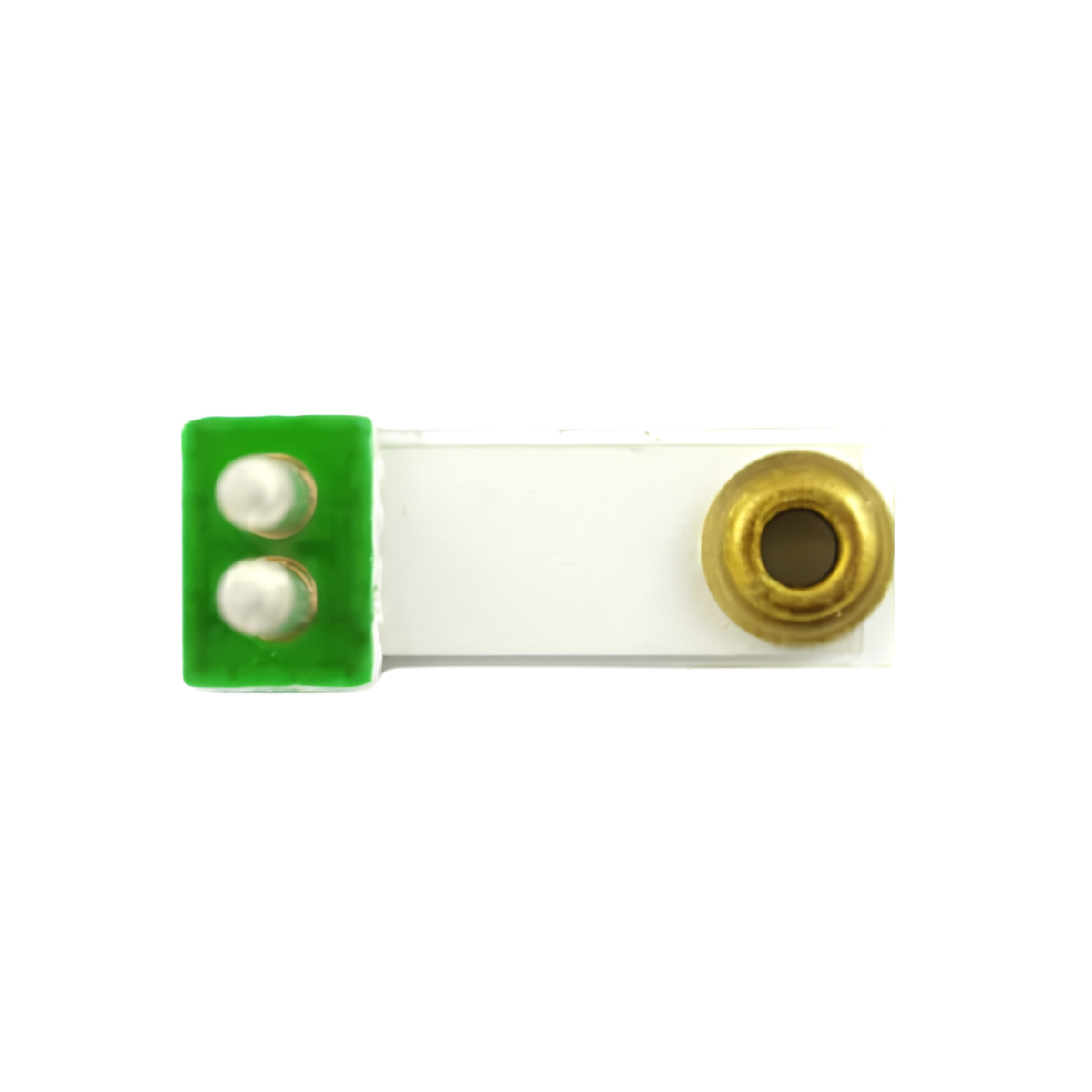

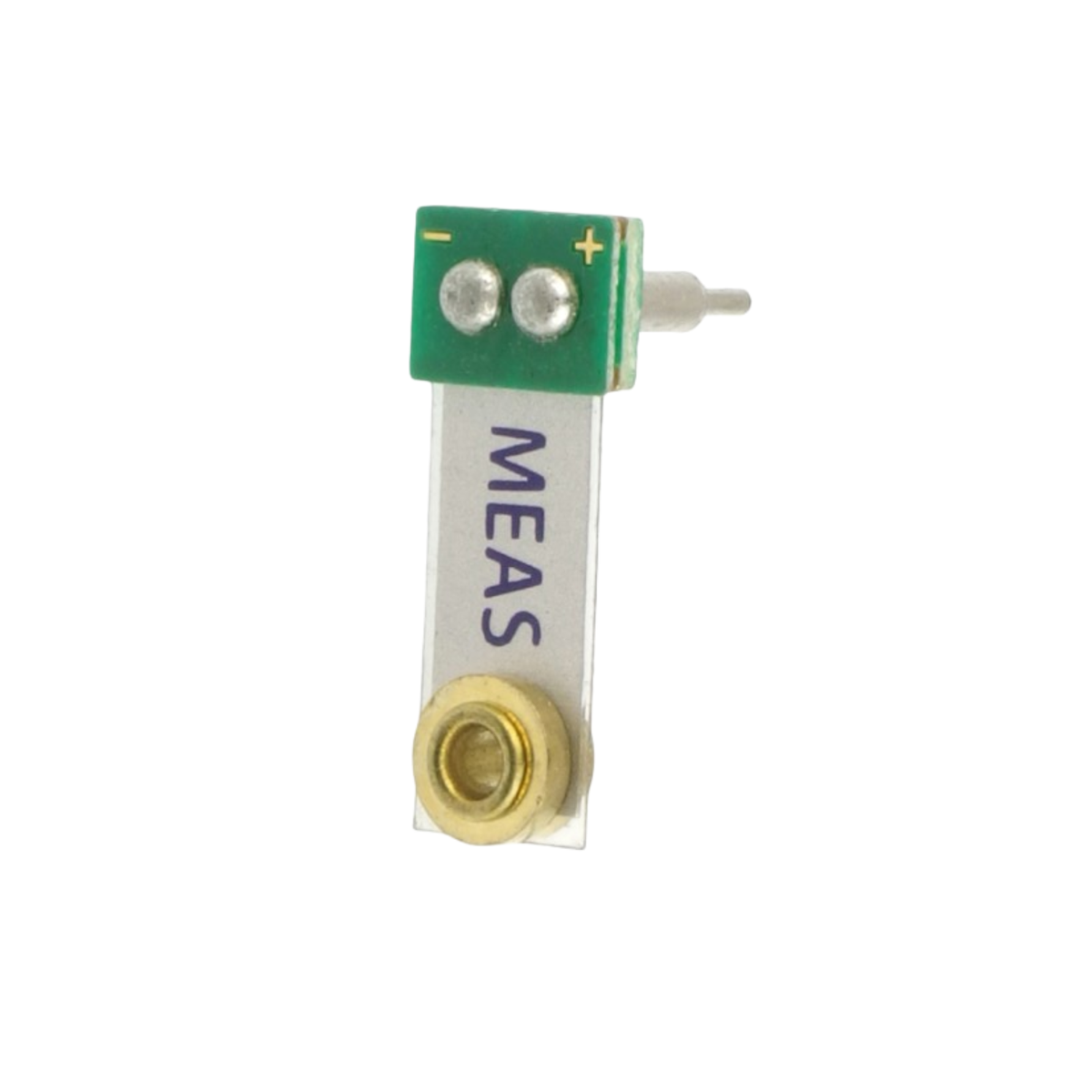

The Piezo Vibration MEAS Sensor is a compact piezoelectric sensor designed for detecting vibration, movement, impact and mechanical bending. It uses a flexible piezoelectric film that generates an electrical signal when the sensing element is displaced or vibrated. The mass attached near the end of the sensor increases its response to movement, making it suitable for low-power vibration detection, alarms, motion sensing and electronic monitoring applications.

Technical Features:

• Sensor Type: Piezoelectric Vibration Sensor
• Sensing Technology: PVDF Piezoelectric Polymer Film
• Output Type: Analog Voltage Signal
• Connection: 2 Solder Tabs
• Configuration: Mass-Loaded Cantilever Type
• Operating Temperature: 0°C to 85°C
• Storage Temperature: -40°C to 85°C
• Power Requirement: Self-Generating Piezoelectric Element

Features:

• High sensitivity to vibration and mechanical movement
• Generates an electrical signal without an external sensor supply
• Integrated mass improves response to low-frequency vibration
• Thin and lightweight piezoelectric film construction
• Fast response to impact, bending and vibration
• Simple two-terminal connection for circuit integration
• Suitable for compact and low-power sensing systems

Applications:

• Vibration detection systems
• Security and alarm systems
• Impact and shock detection
• Machine and equipment vibration monitoring
• Movement and body-motion sensing
• Low-power wake-up circuits
• Robotics and electronic projects
• Flexible switch and touch sensing applications
