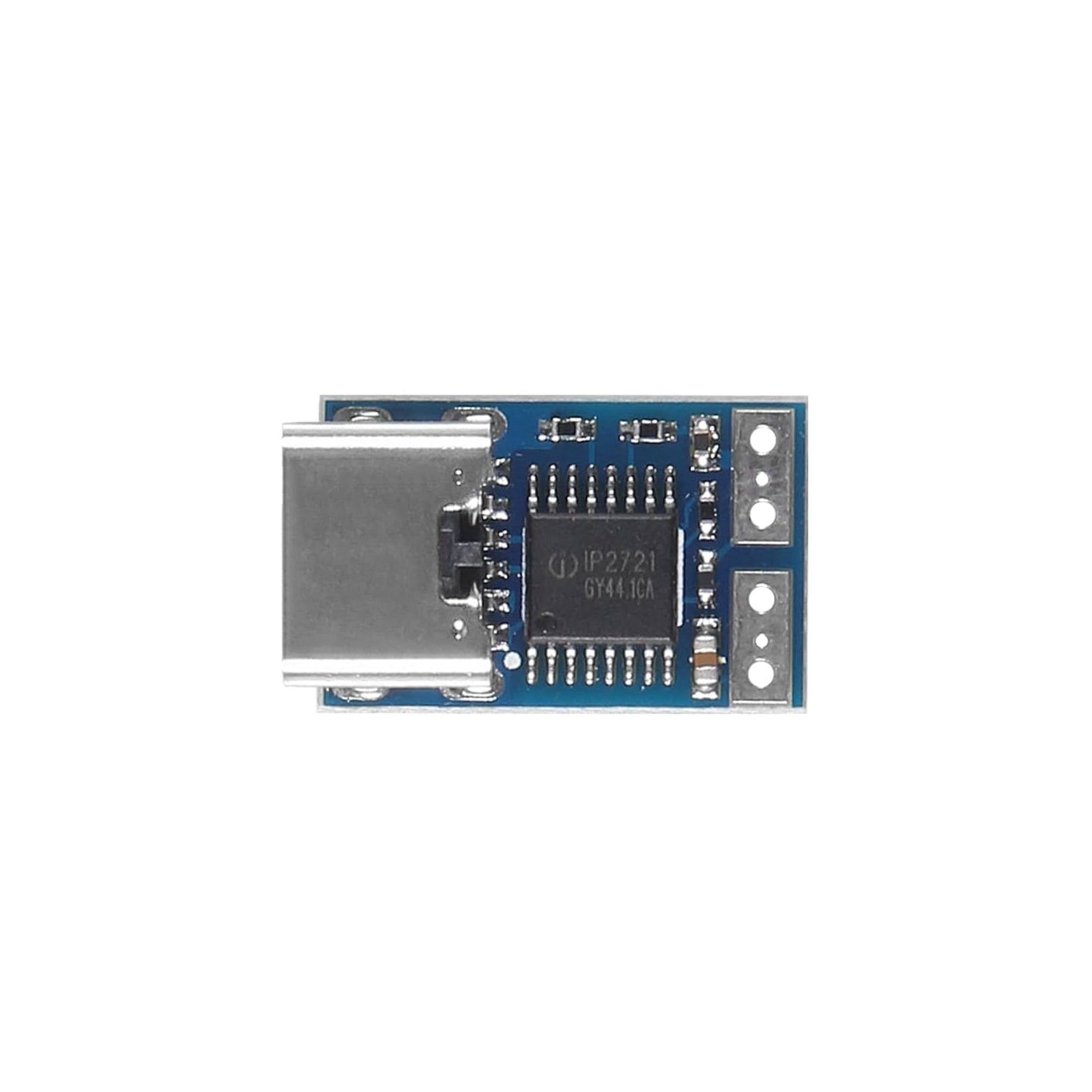

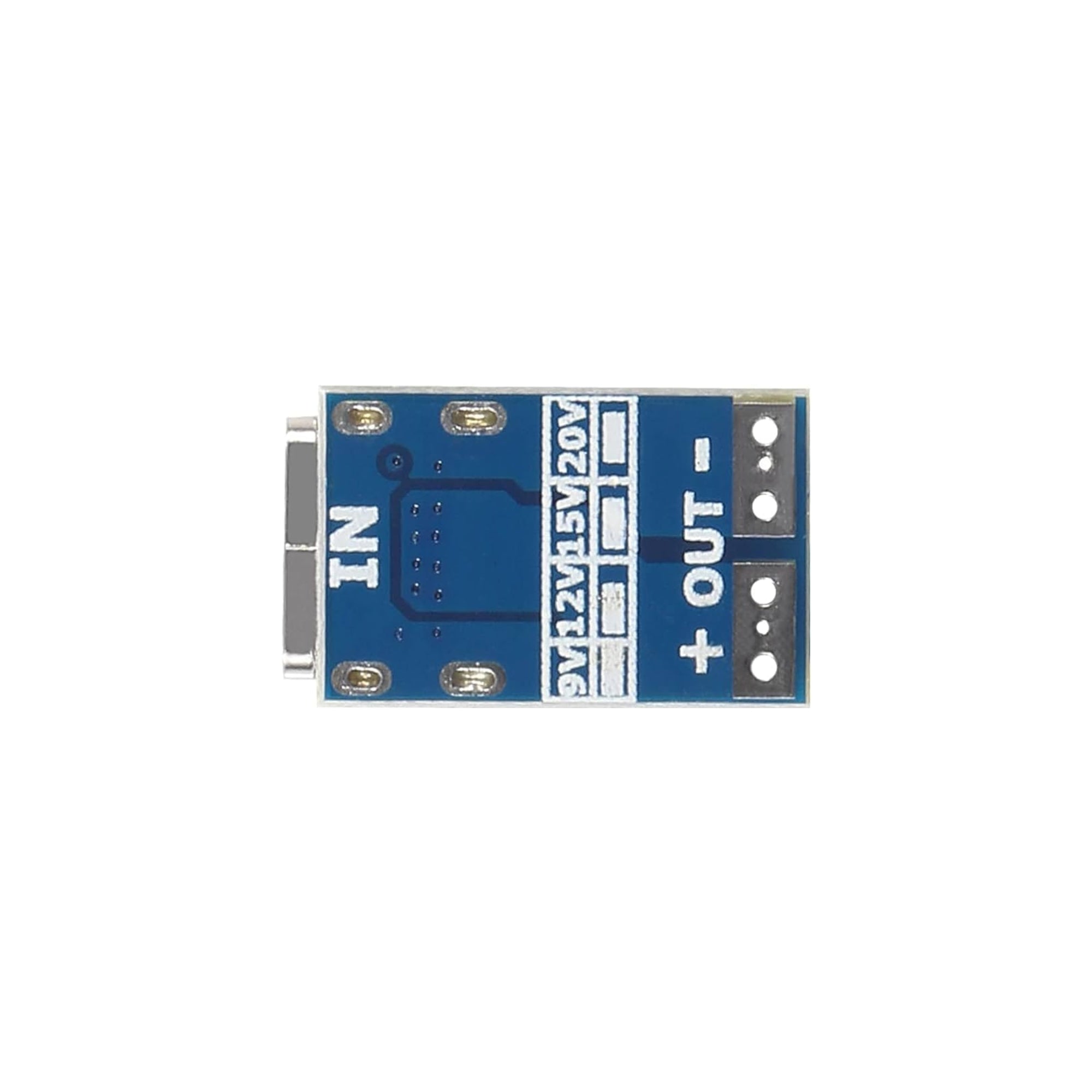

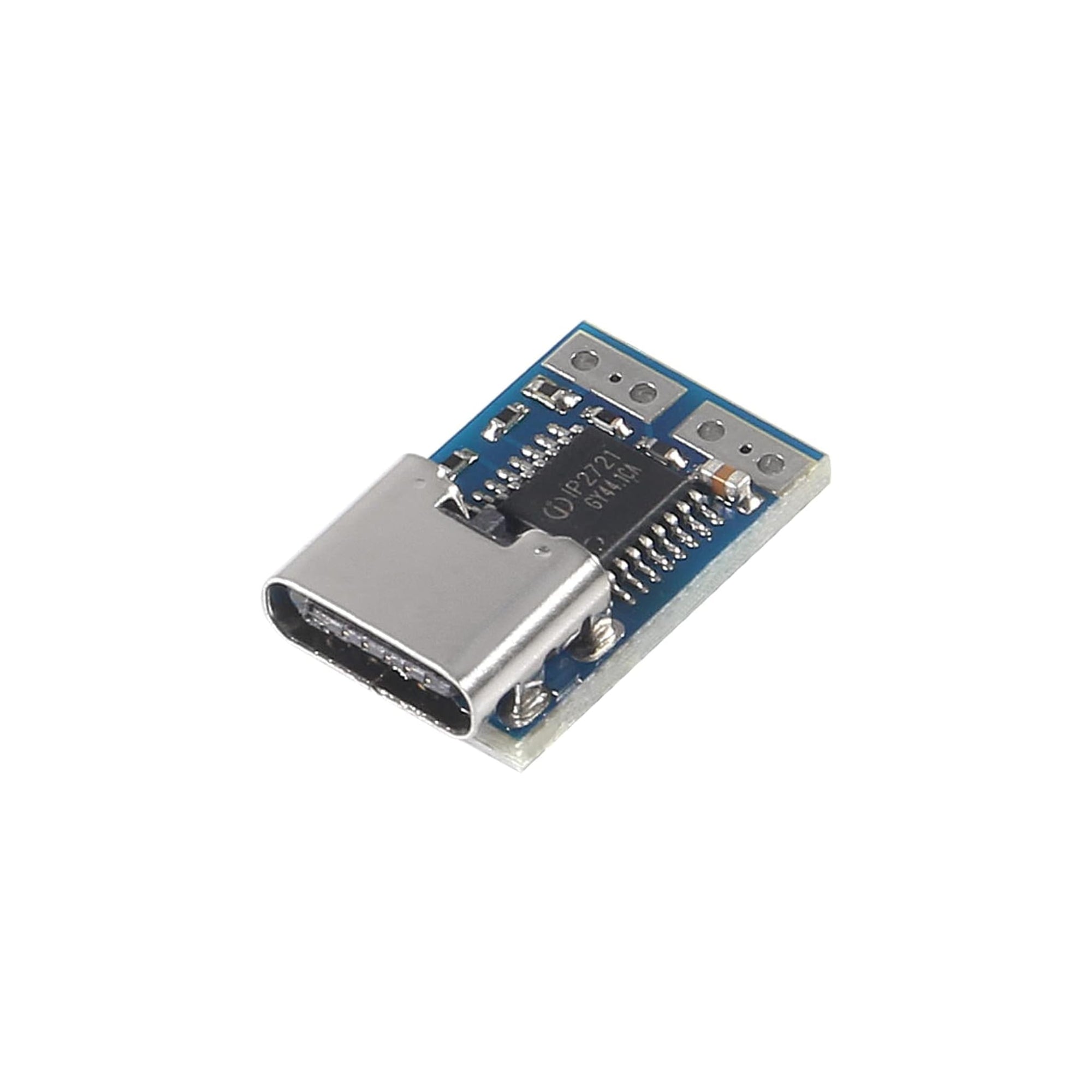

PDC004-PD 9V PD23.0 Decoy Module

The PDC004-PD PD Decoy Module 9V is a compact USB Type-C Power Delivery trigger board designed to negotiate and request a fixed 9V output from compatible USB-C PD chargers or power banks. Using the onboard IP2721 PD trigger IC, the module communicates with PD-enabled power sources and converts the default 5V USB-C output into a stable 9V DC supply.

This module is ideal for powering DIY electronics, routers, embedded systems, soldering tools, portable devices, and custom projects directly from USB-C PD adapters without requiring a dedicated DC power supply.

Technical Specifications:

• Model: PDC004-PD
• Controller IC: IP2721
• Input Interface: USB Type-C Female
• Output Voltage: Fixed 9V DC
• Supported Protocols: USB PD2.0 / PD3.0
• Maximum Current: Up to 5A (depends on charger capability)
• Maximum Power: Up to 45W typical

Features:

• Fixed 9V USB-C PD trigger output
• Based on IP2721 PD negotiation chip
• Supports USB Power Delivery 2.0 and 3.0
• Compact low-profile PCB design
• No programming required
• Plug-and-play operation
• High current handling capability
• Stable hardware-based PD negotiation
• Ideal for portable electronics projects
• Easy solder-pad output connection

Applications:

• USB-C powered DIY electronics
• Portable 9V power supply projects
• Embedded system development
• Router and networking device powering
• USB-C PD battery projects
• Portable soldering tools
• IoT and automation systems
• Power bank voltage trigger applications
• Custom electronics prototyping
• Laboratory and testing applications
