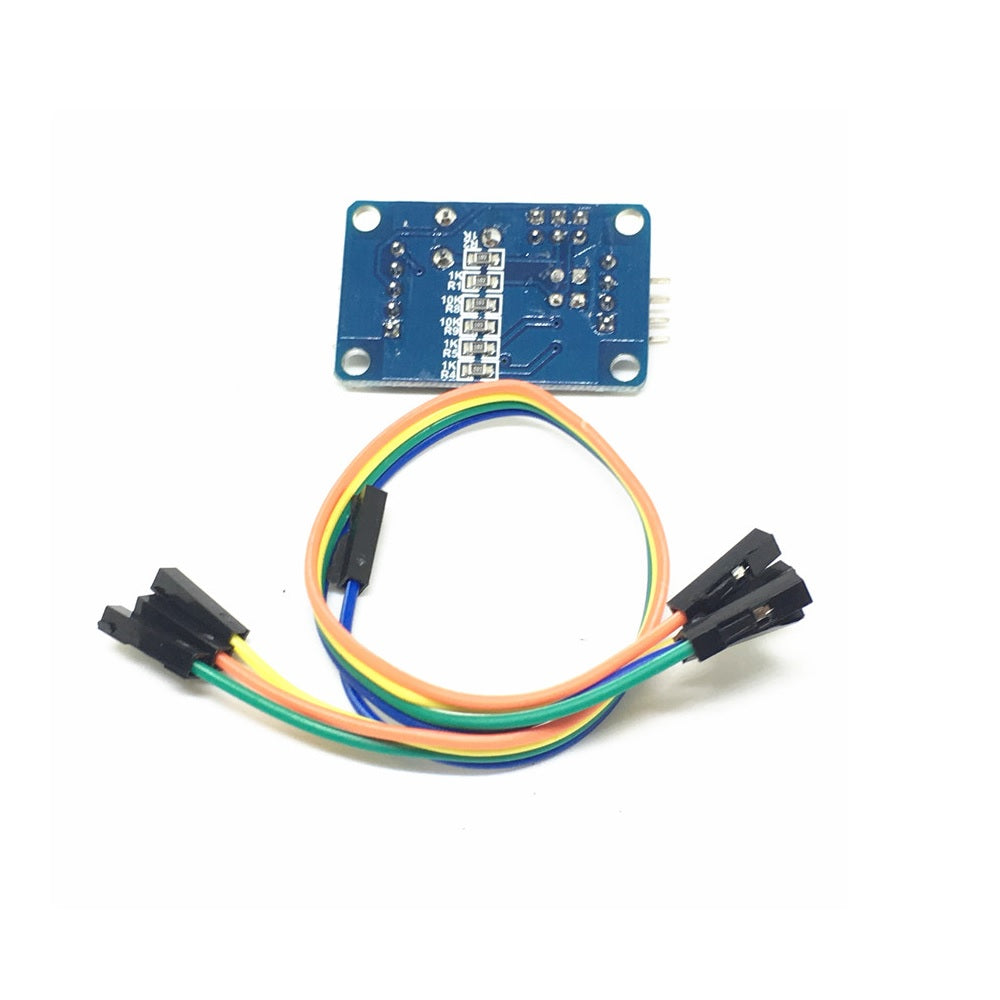

PCF8591 ADC DAC AD/DA Analog-Digital Converter Module

SKU: VM270

Price:
Sale priceRs. 150

Description

The PCF8591 is a monolithically integrated, and a separate power supply, low-power, 8-bit CMOS data acquisition devices. The PCF8591 has the four analog inputs, one analog output and a serial I2C bus interface. PCF8591 three address pins A0, A1 and A2 can be used in hardware address programmed 8 PCF8591 device allows access to the same I2C bus, without the need for additional hardware. On the PCF8591 device input and output of the address, control and data signals are transmitted in serial fashion via the two-wire bidirectional I2C bus.

Technical Specification:

  • IC Chip:PCF8951
  • Operating Voltage (VDC):2.5 ~ 6
  • PCB Size:35mm * 23mm( L * W )

Features:

PCF8591 IC Features:

  • Low standby current
  • Via I2C bus serial input / output
  • PCF8591 by 3 hardware address pins addressing
  • PCF8591 I2C bus speed sampling rate decided
  • 4 analog inputs programmable single-ended or differential input
  • Automatic incremental channel selection

Module Features:

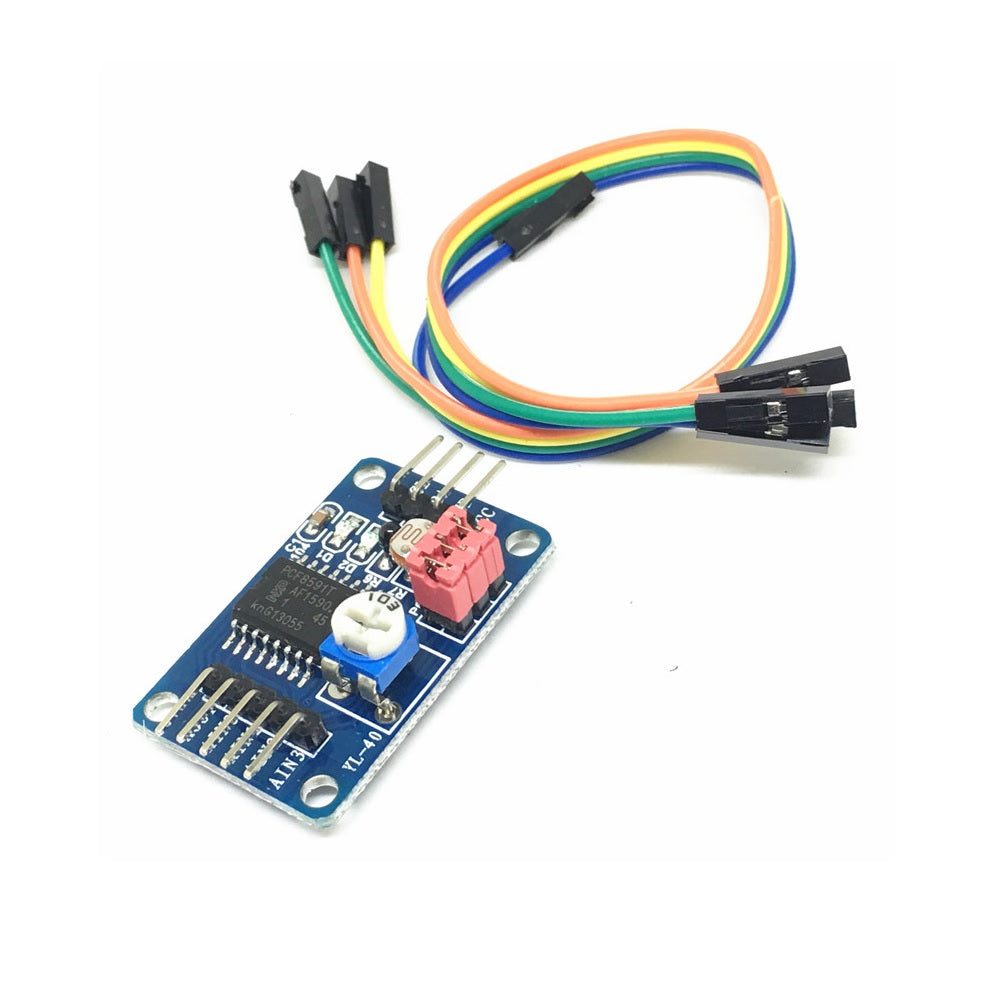

  • The module integrated photoresistor by AD collection precise value of the ambient light intensity
  • Module integrated thermistor by the precise value of the ambient temperature of the AD acquisition
  • Module integrated 1 channel 0-5V voltage input acquisition (the blue potentiometer to adjust the input voltage)
  • Modules with power indicator (for the module power supply indicator lights)
  • Modules with DA output indicator, when the module DA output interface voltage reaches a certain value, will be lit panel the DA output indicator, the higher the voltage, the more obvious indicator brightness

Applications:

  • Supply monitoring
  • Reference setting
  • Analog control loop
