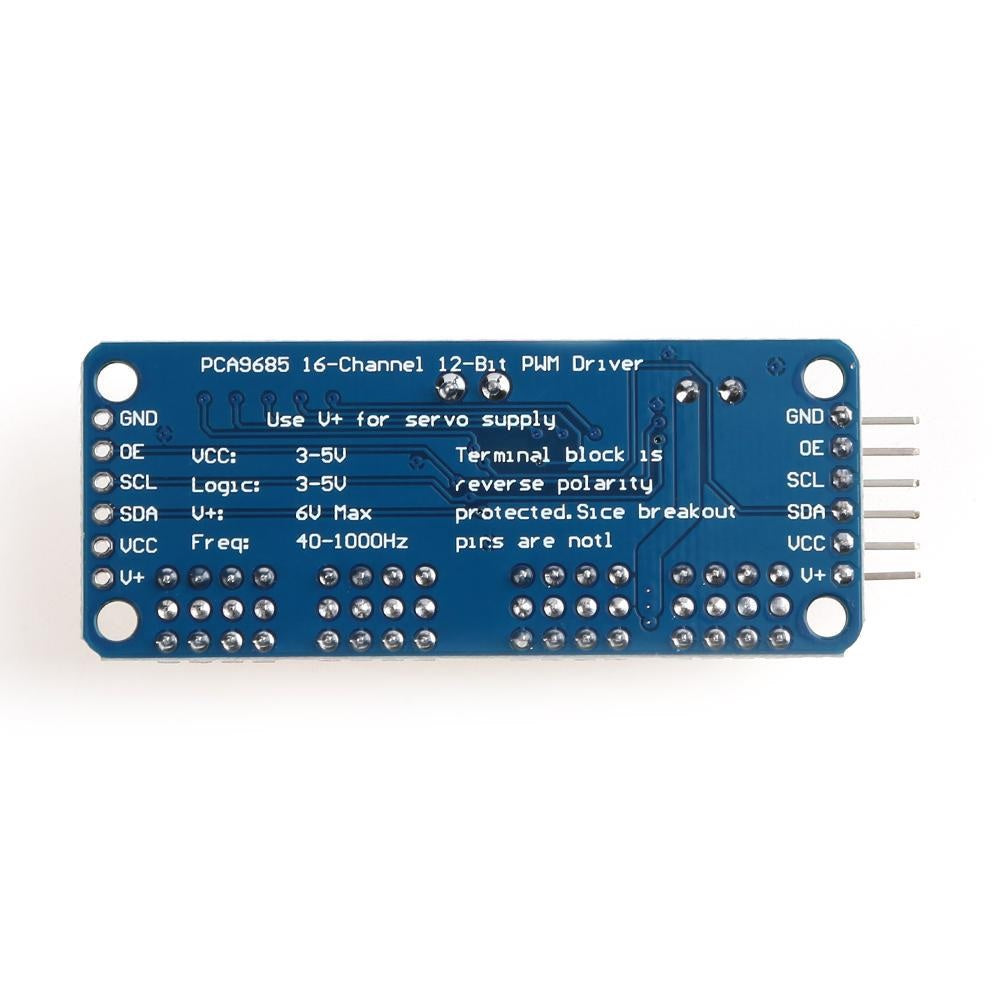

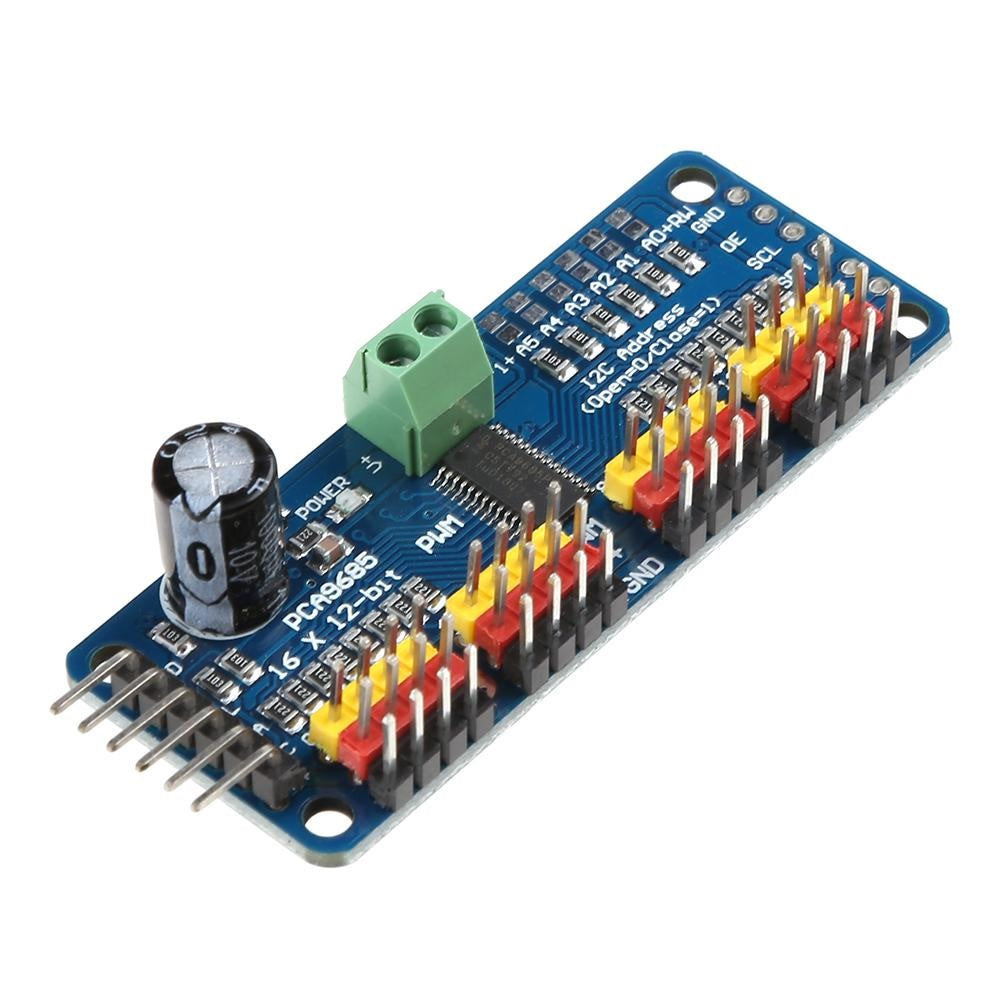

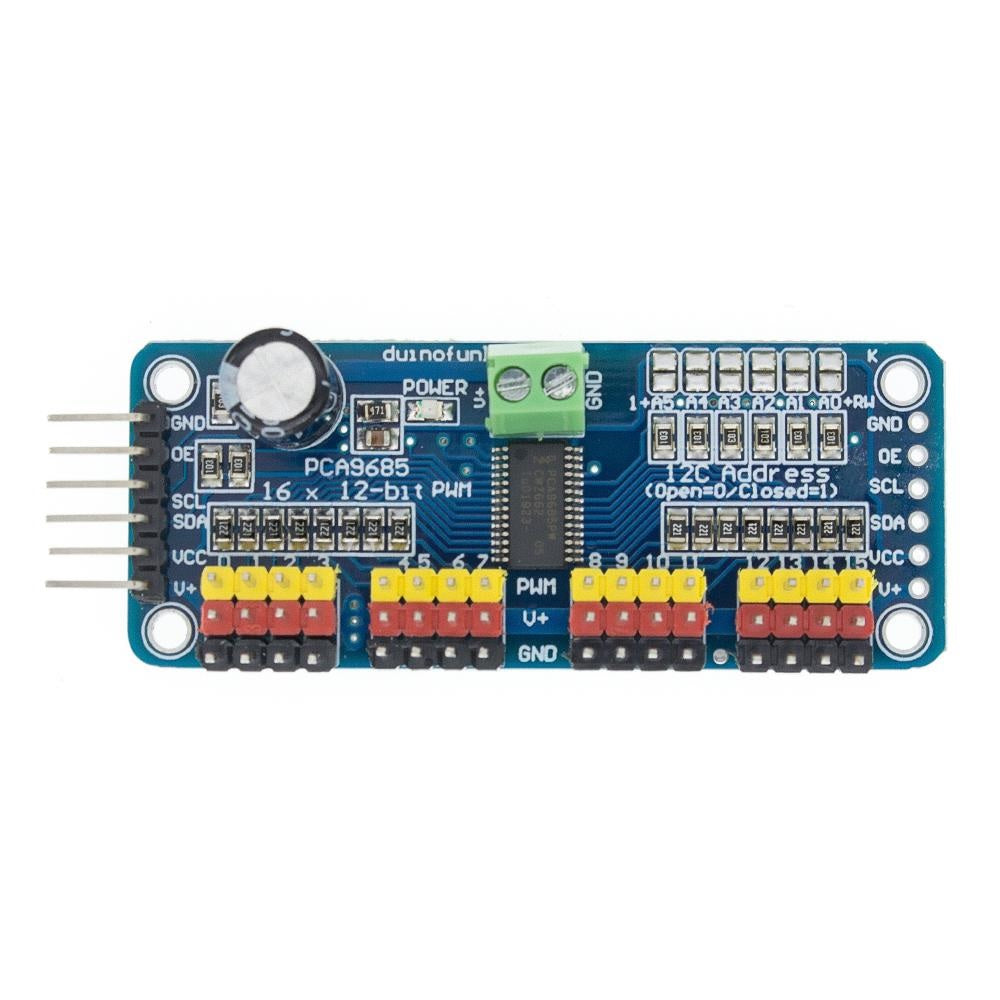

PCA9685 - 16 Channel 12-Bit PWM Servo Motor Driver I2C Module

SKU: VM508

Send Inquiry

Description

The PCA9685 is a 16-channel I2C-bus controlled LED controller optimized for Red/Green/Blue/Amber (RGBA) color backlighting applications. Each LED output has individual 12-bit resolution (4096 steps) PWM controller with a fixed frequency. The controller operates at a programmable frequency from a typical 24 Hz to 1526 Hz with a duty cycle that is adjustable from 0% to 100% so the LED can be set to output a specific brightness. All outputs are set to the same PWM frequency.

With the PCA9685 as the master chip, the 16-channel 12-bit PWM Servo Driver only needs 2 pins to control 16 servos, thus greatly reducing the occupant I/Os. Moreover, it can be connected to 62 driver boards at most in a cascade way, which means it will be able to control 992 servos in total.

 Technical Specification:

  • Driver IC: PCA9685
  • Size: 62mm*25mm*15mm(L*W*H)

Features:

  • Contains an I2C-controlled PWM driver with a built-in clock. It means, unlike the TLC5940 family, you do not need to continuously send it signals tying up your microcontroller; it's completely free running!
  • 5V compliant, which means you can control it from a 3.3V microcontroller, which is good when you want to control white or blue LEDs with a 3.4V+ forward voltage
  • Supports using only two pins to control 16 free-running PWM outputs – you can even chain up 62 breakouts to control up to 992 PWM outputs.
  • 3 pin connectors in 4 groups, so you can plug in 16 servos at one time (Servo plugs are slightly wider than 0.1" so you can only stack 4 adjacent ones on 0.1"-hole female headers
  • 12-bit resolution for each output - for servos, that means about 4us resolution at an update rate of 60Hz

Applications:

  • RGB or RGBA LED drivers
  • LED status information
  • LED displays
  • LCD backlights
  • Keypad backlights for cellular phones or handheld devices
