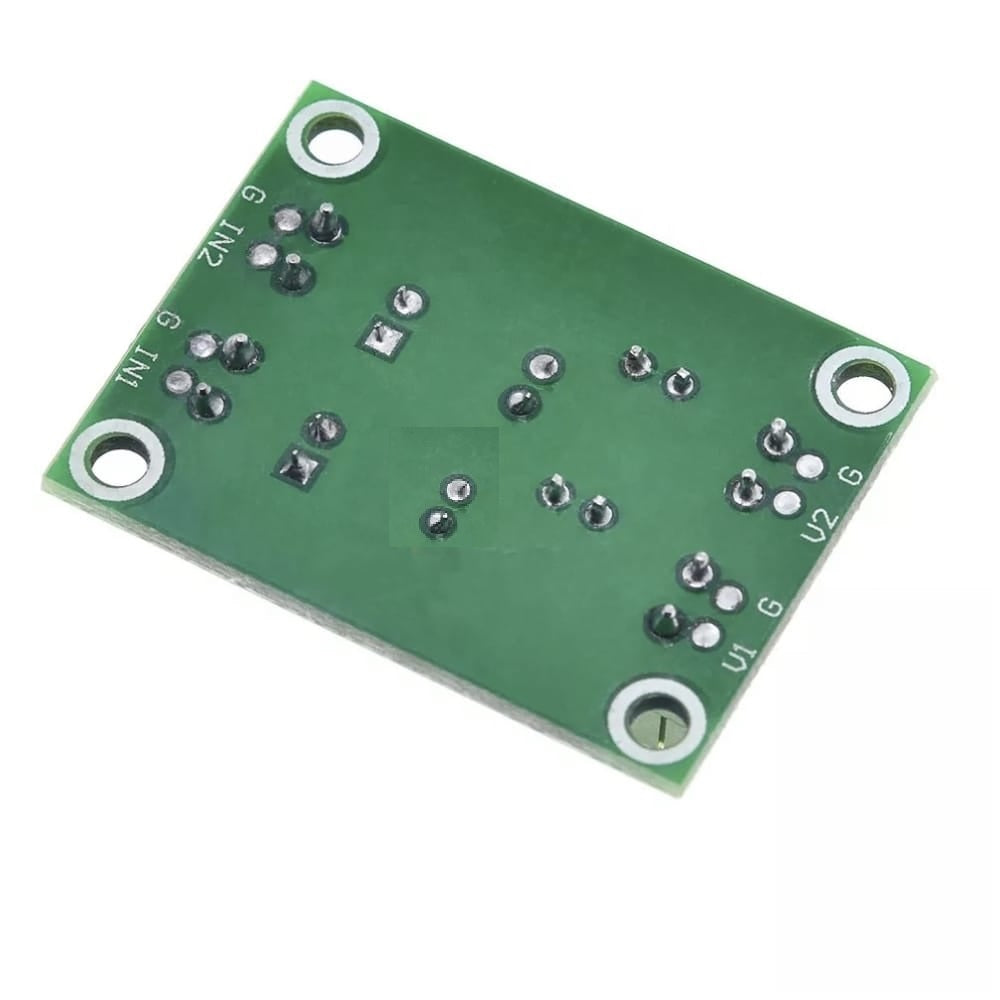

PC817 2 Channel Optocoupler Isolation Module

SKU: VM864

Send Inquiry

Description

This module is helpful in connecting digital systems (eg 5V microcontrollers) to a high-voltage system. The board electrically isolates the controller from the high-efficiency circuit by means of an optical-isolation IC. The IC has built-in two LEDs and two photodiodes. This allows the low voltage side to control the high voltage side.

Technical Specification:

  • No. of Channels: 2
  • Input Voltage: 3.6-24 VDC
  • Output Voltage: 3.6-30 V
  • Size: 38m*29mm*12mm (L*W*H)

 Features:

  • Output Can Be Switched From Pull-Up or Pull-Down With Jumpers
  • This breakout board helps to add opto isolation to any circuit with minimum amount of wiring

 Applications:

  • Computer terminals
  • System appliances, measuring instruments
  • Registers, copiers, automatic vending machines
  • Electric home appliances
