Description

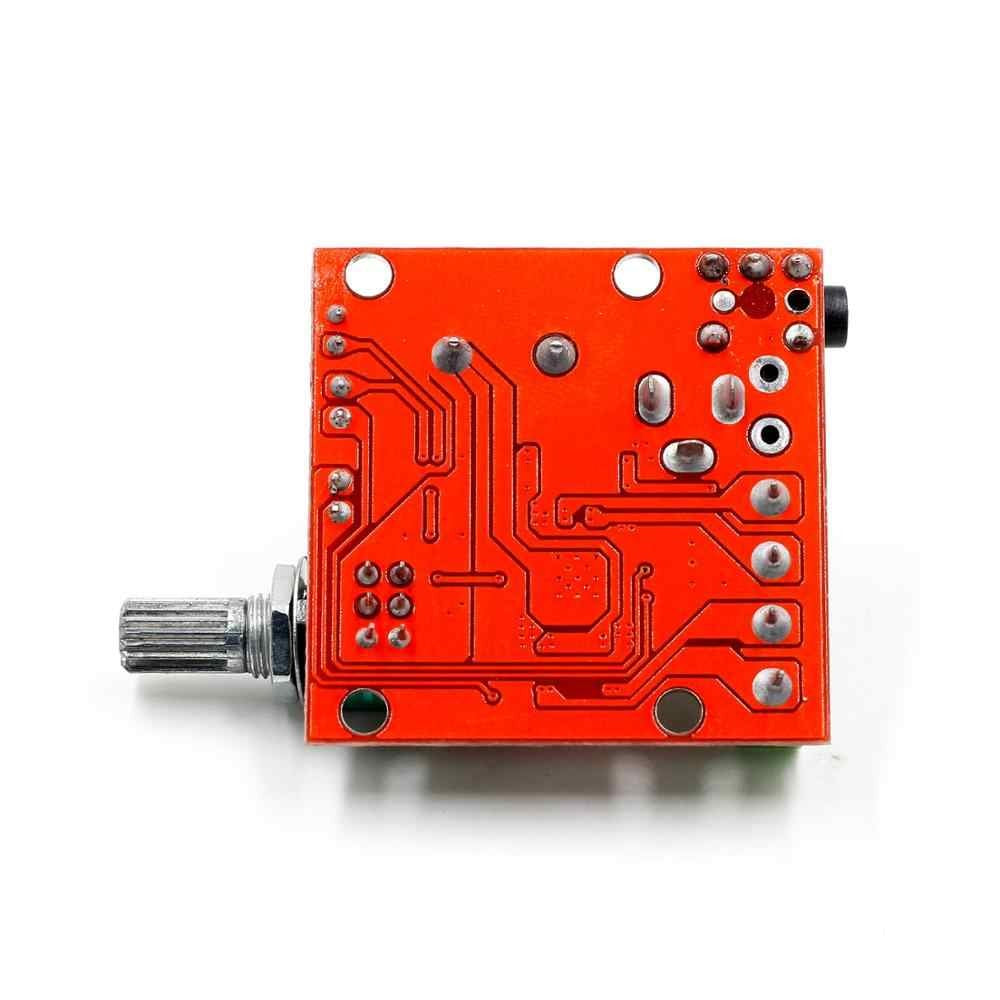

This PAM8610 module is a 10W, class-D stereo audio amplifier. It offers low THD+N, allowing it to achieve high-quality sound reproduction, all in a compact form factor. It can operate from a 9V or 12V power supply or batteries, and includes power switch and mute switch connectors, a volume control potentiometer and speaker connector screw terminals for ease of use.
Technical Specification:
- Model: PAM 8610
- Power Interface: 5.5 socket
- Input Voltage: 7~15V
- Quiescent current: 20mA
- Efficiency: 90%
- Rated output power: 10W +10W
- Frequency response: 20Hz to 50KHz
- Working Mode: Class D (PWM modulation type)
- Working Mode: Class D (PWM modulation type)
- Size: 40.mm*40mm*23.5mm (L*W*H)
Features:
- Noise cancelling circuit built into the amplifier board
- Screw terminals for easy speaker connection - no soldering needed
- No popping noise when Power on/off
- Power switch and mute switch connectors and volume control potentiometer
- Short-circuit current protection: under-voltage lockout and over-temperature protection
Applications:
- Flat Monitor /LCD TVS
- Multi-Media Speaker System
- DVD Players, Game Machines
- Boom Box
- Music Instruments
