Description
OWON HDS272S 70 MHz Handheld Digital Oscilloscope
The OWON HDS272S is a portable dual-channel digital oscilloscope designed for versatility and ease of use in various applications. With a bandwidth of 70 MHz, it integrates the functionalities of an oscilloscope, a digital multimeter (DMM), and a waveform generator (AWG) in a compact, handheld design. The device features a 3.5" high-contrast color display, making it suitable for outdoor use and ensuring clear visibility in various lighting conditions.
The OWON HDS272S is an excellent choice for professionals needing reliable performance in diverse environments, offering a blend of portability, functionality, and advanced features.
Technical Specifications:
- Type: Handheld Digital Oscilloscope
- Channels: 2
- Bandwidth: 70 MHz
- Vertical Resolution: 8 bits
- Sample Rate: Up to 250 MSa/s
- Memory Depth: 8 k points per channel
- Input Coupling: AC, DC, GND
- Maximum Input Voltage: 400 V (DC + AC peak)
- Input Impedance: 1 MΩ ± 2%
- Time Base Range: 5 ns/div to 50 s/div
- Display: 3.5" color LCD (320 x 240 pixels)
- Power Supply: Dual 18650 lithium batteries (4400 mAh)
- Battery Life: Approximately 6 hours of continuous use
- Dimensions: 198 mm x 96 mm x 38 mm
- Weight: Approximately 600 g (without batteries)
Features:
- Multi-functionality: Combines oscilloscope, DMM, and AWG in one device
- High Refresh Rate: Capable of capturing fast signals with a maximum waveform refresh rate of up to 10,000 wfms/s
- Auto Measurement Functions: Includes various automatic measurement capabilities for quick analysis
- Cursor Measurement Functionality: Allows precise measurements of voltage and time between cursors
- Waveform Storage and Export: Save waveforms as images or CSV files and export via USB to a PC host
- USB-C Connectivity: Supports connection to PCs for data transfer and control
- Compact Design: Lightweight and portable for easy field use
Applications:
- Field Testing and Maintenance: Ideal for on-site measurements in automotive and industrial applications
- Education and Training: Suitable for teaching electronics concepts in academic settings
- Signal Analysis: Useful for analyzing electronic signals in various applications, including telecommunications
- Rapid Prototyping and Development: Assists engineers in testing and debugging prototypes
Package Includes:

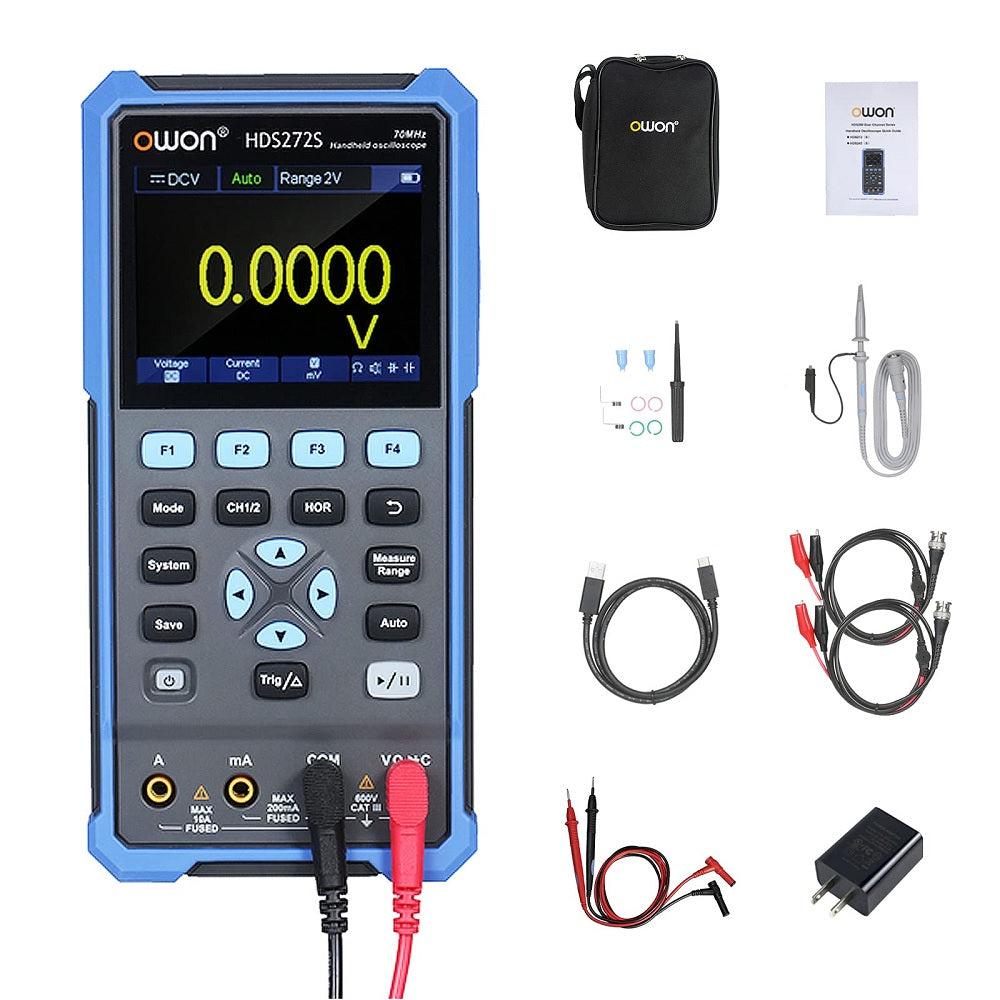

- OWON HDS272S Handheld Digital Oscilloscope
- Two 18650 lithium batteries
- USB-C cable
- User manual
