OWON HDS242 Handheld Digital Oscilloscope Bandwidth: 40 MHz, 2 - Channel, Sample rate: 250 MSa/s (single channel), 125 MSa/s (dual channel)
The OWON HDS242 is a compact handheld digital oscilloscope designed for portability and versatility. With a bandwidth of 40 MHz and dual-channel capability, it can also function as a multimeter, making it an ideal tool for fieldwork and electronics testing. The oscilloscope features a 3.5-inch high-contrast color display, allowing for clear visibility in various lighting conditions. Powered by rechargeable 18650 batteries, it offers up to 6 hours of continuous operation and supports USB-C connectivity for data transfer and software integration.
Technical Specifications:
- Model Number: HDS242
- Bandwidth: 40 MHz
- Sample Rate:
- 250 MSa/s (single channel)
- 125 MSa/s (dual channel)
- Channels: 2
- Record Length: Up to 8 k data points
- Display:
- Type: 3.5-inch color LCD
- Resolution: 320 x 240 pixels
- Input Coupling: AC, DC, GND
- Input Impedance: 1 MΩ ± 2% // 15 pF ± 3 pF
- Max Input Voltage: 400 V (DC + AC Peak)
- Vertical Sensitivity: Not specified (typical ranges from mV/div to V/div)
- Power Supply: Powered by two 18650 batteries (approx. 6 hours of use)
- Connectivity: USB-C for PC connection and power bank use
Features:
- Dual Functionality: Operates as both an oscilloscope and a multimeter with auto-ranging capabilities
- High Contrast Display: Suitable for outdoor use, providing clear visibility in various lighting conditions
- Data Recording and Exporting: Capable of recording signals and storing them as images or CSV files, which can be exported via USB
- Portable Design: Lightweight and compact, making it easy to carry for fieldwork
- Multimeter Capabilities: Measures voltage, current, resistance, capacitance, continuity, and diodes with a resolution of 20,000 counts
Applications:
- Field Testing and Troubleshooting: Ideal for engineers and technicians conducting on-site measurements
- Educational Use: Useful in teaching environments for demonstrating basic electronics principles
- General Electronics Testing: Suitable for testing various electronic circuits and components

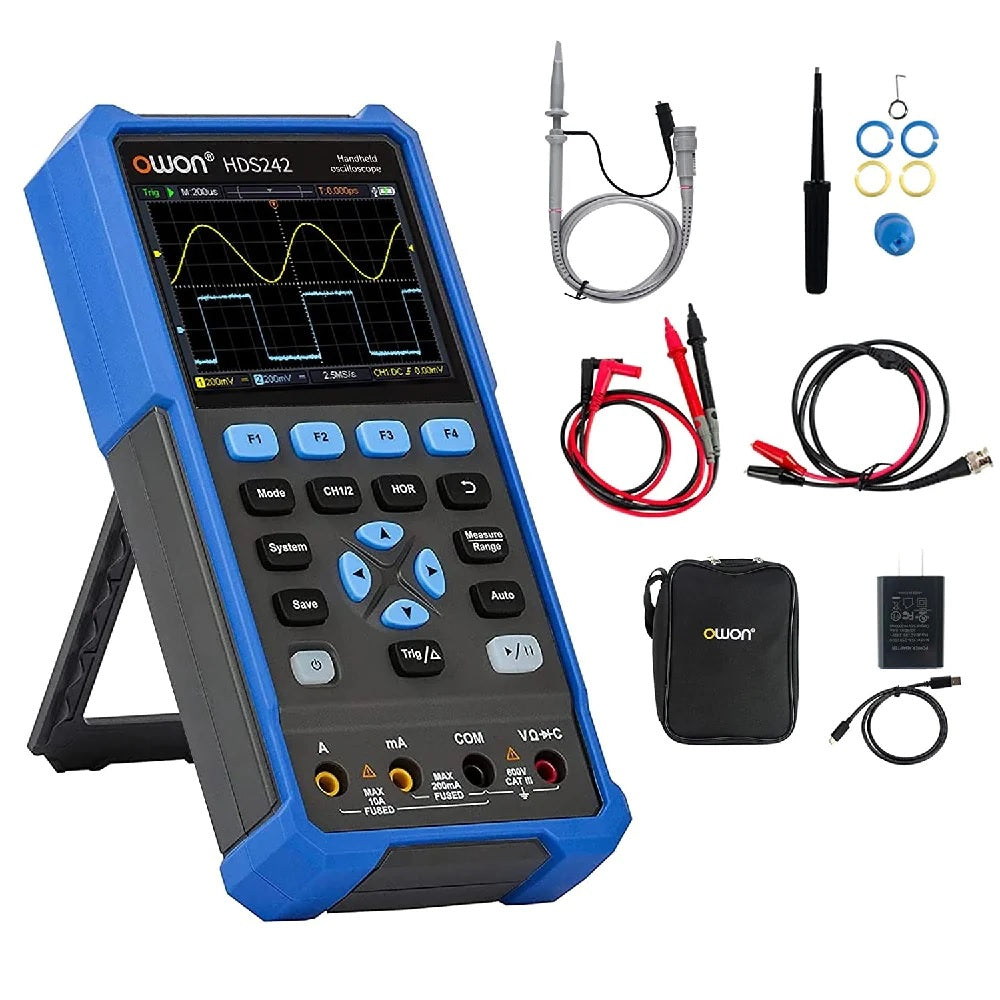

Package Includes:
- OWON HDS242 Handheld Oscilloscope Unit
- USB-C Cable
- Probe Set (typically includes two passive probes)
- User Manual
