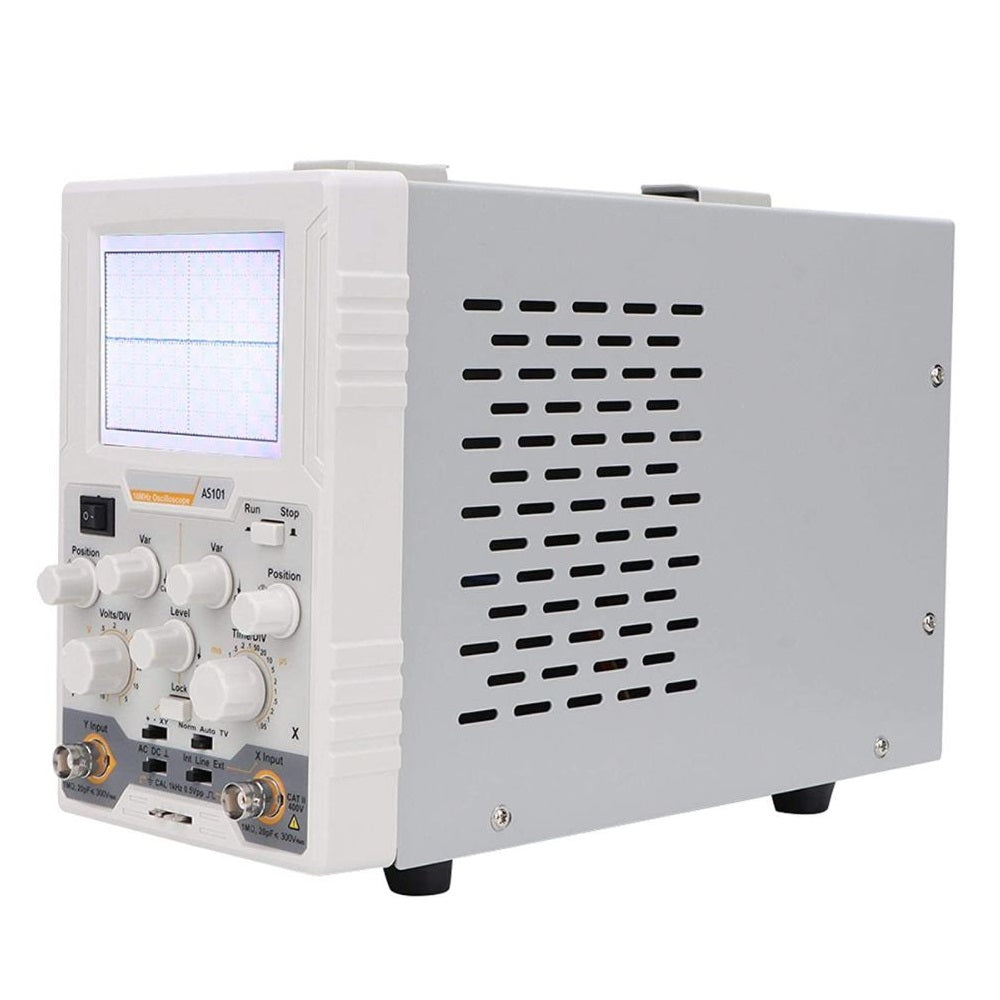

OWON AS101/MTQ1016B Single Channel Oscilloscope : Bandwidth: 10 MHz, 1-Channel, Sample rate: 100MS/s
The OWON AS101/MTQ1016B is a compact and reliable analogue oscilloscope designed for basic waveform analysis and troubleshooting in electronic circuits. With a bandwidth of 10 MHz and a single channel, it is ideal for educational purposes, hobbyists, and simple testing tasks.
The OWON AS101/MTQ1016B is an excellent choice for users needing a straightforward, effective tool for basic electronic measurements. Its blend of functionality and simplicity makes it accessible for beginners while still being useful for experienced technicians.
Technical Specifications:
- Type: Analogue Oscilloscope
- Channels: 1
- Bandwidth: 10 MHz
- Input Sensitivity: 5 mV/div to 5 V/div
- Time Base Range: 0.1 ms/div to 0.5 s/div
- Vertical Resolution: Typically 8 bits (depends on the specific model)
- Maximum Input Voltage: 400 V (DC + AC peak)
- Input Impedance: 1 MΩ
- Trigger Modes: Edge triggering
- Display Type: CRT (Cathode Ray Tube)
- Power Supply: AC 100V - 240V, 50/60 Hz
- Dimensions: Approx. 320 mm x 150 mm x 350 mm
- Weight: Approximately 3 kg
Features:
- Simple Operation: User-friendly interface for quick setup and measurement
- Portable Design: Lightweight and compact, suitable for fieldwork
- Analog Display: Provides real-time waveform visualization
- Adjustable Trigger Level: For stable waveform display
- Calibration Functionality: Ensures accurate measurements over time
- Built-in Probe Compensation: For optimal signal integrity
Applications:
- Educational Use: Ideal for teaching basic electronics and oscilloscope operation
- Basic Circuit Testing: Suitable for troubleshooting and testing simple electronic circuits
- Hobbyist Projects: Useful for DIY electronics enthusiasts working on various projects
- Signal Monitoring: Can be used in various applications requiring signal observation
Package Includes:
- OWON AS101/MTQ1016B Analogue Oscilloscope
- Power Cable
- User Manual
