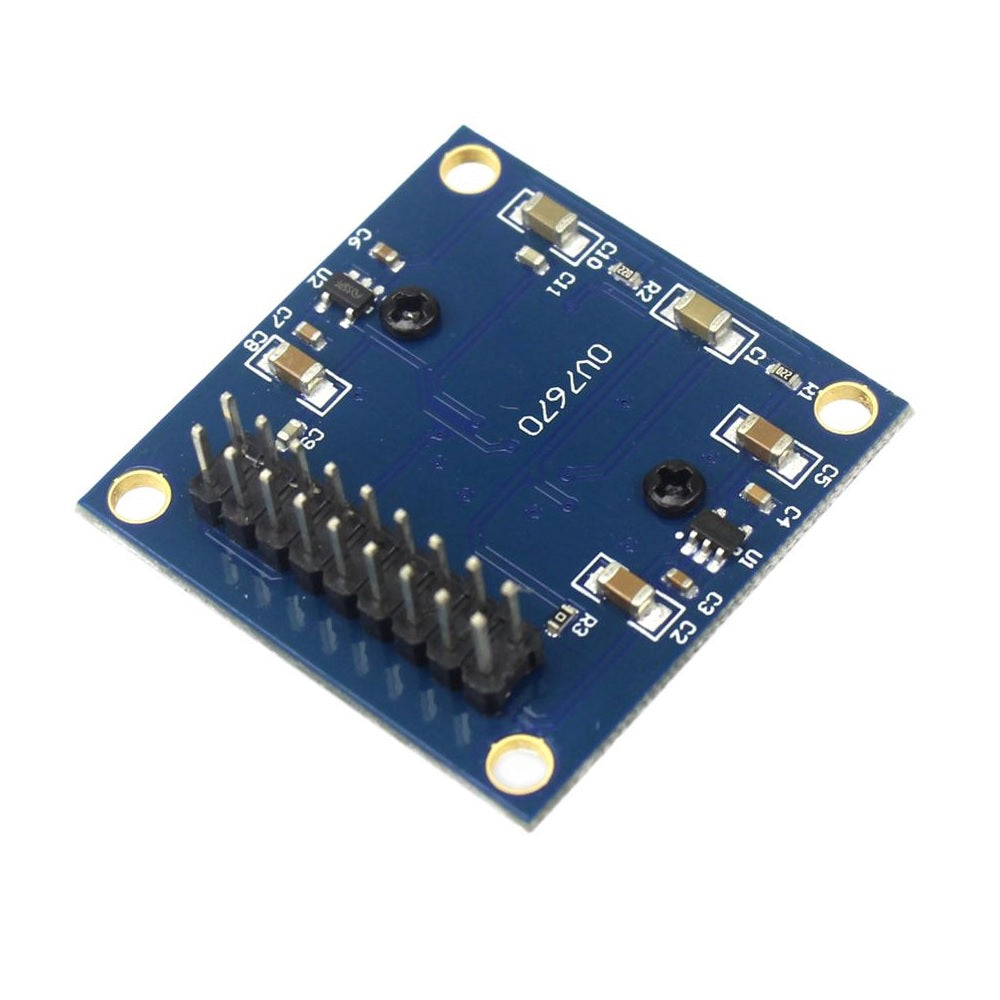

OV7670 640×480 VGA CMOS Camera Sensor Module

The OV7670 camera module is a CMOS image sensor that provides full-frame windowed 8-bit images in a wide range of image formats. The OV7670 sensor is controlled using Serial Camera Control Bus (SCCB) which is an I2C interface.

The OV7670 CAMERACHIPTM is a low voltage CMOS image sensor that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package. The OV7670 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This product has an image array capable of operating at up to 30 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface. In addition, OV7670 use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image.

 Technical Specification:

• Operating voltage: 3.3V DC
• Resolution: 640x480 VGA
• Optical Size: ⅙ inch
• Power Consumption: 60mW
• High-quality F1.8 / 6mm lens
• Output support for Raw RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
• S/N Ratio: 46 dB
• Maximum Image Transfer rate: 30 FPS for VGA
• Supports image sizes: VGA, CIF, and any size scaling down from CIF to 40x30

Features:

• Standard SCCB interface compatible with I2C interface
• Lens shading correction Flicker (50/60 Hz) auto-detection
• Saturation level auto adjust (UV adjust)
• Edge enhancement level auto adjust
• Easy to use
• Output support for Raw RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
• Supports LED and flash strobe mode
• Supports scaling

Applications:

1. Cellular phone
2. Facial Recognition
3. Document scanning
4. Surveillance systems
5. Obstacle avoidance
