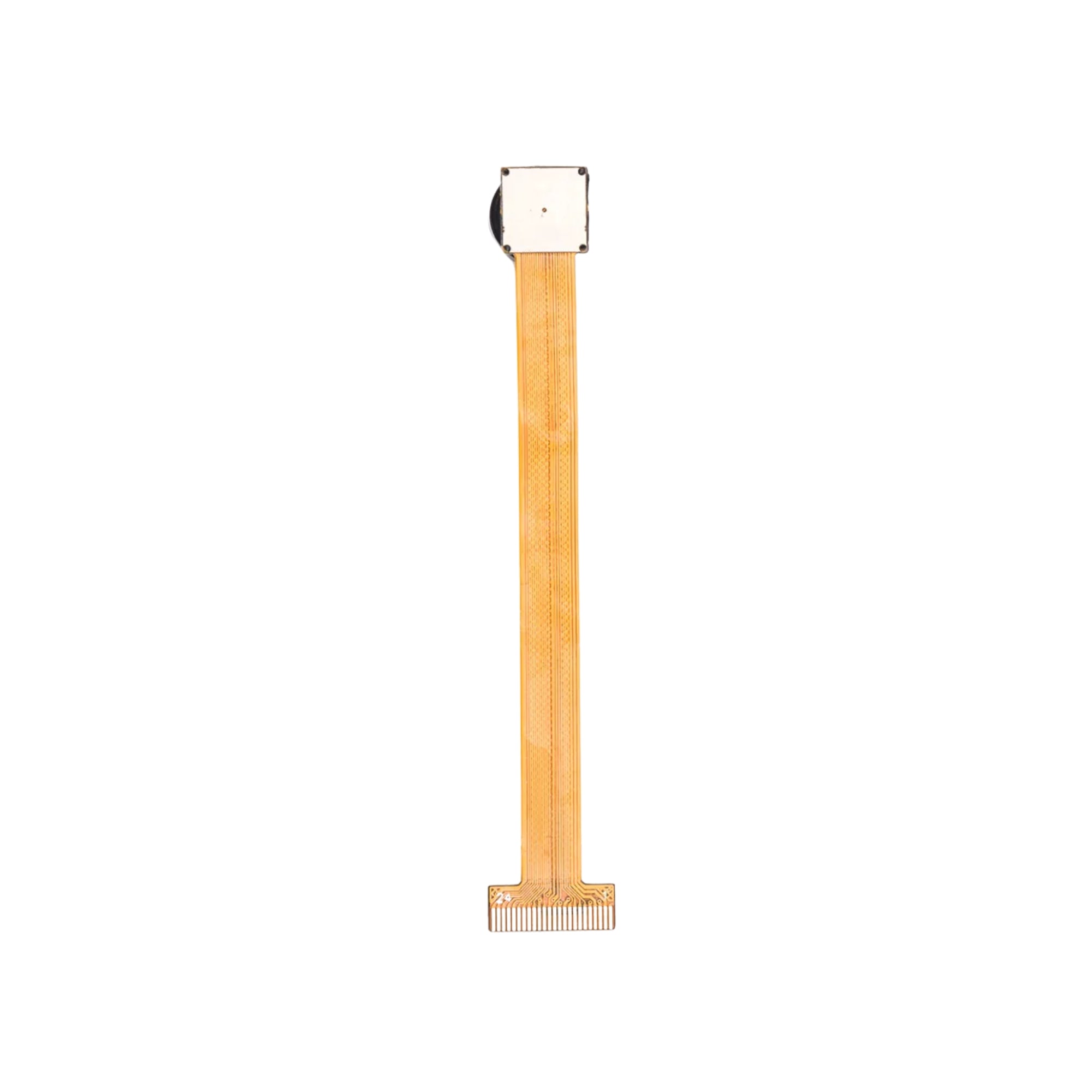

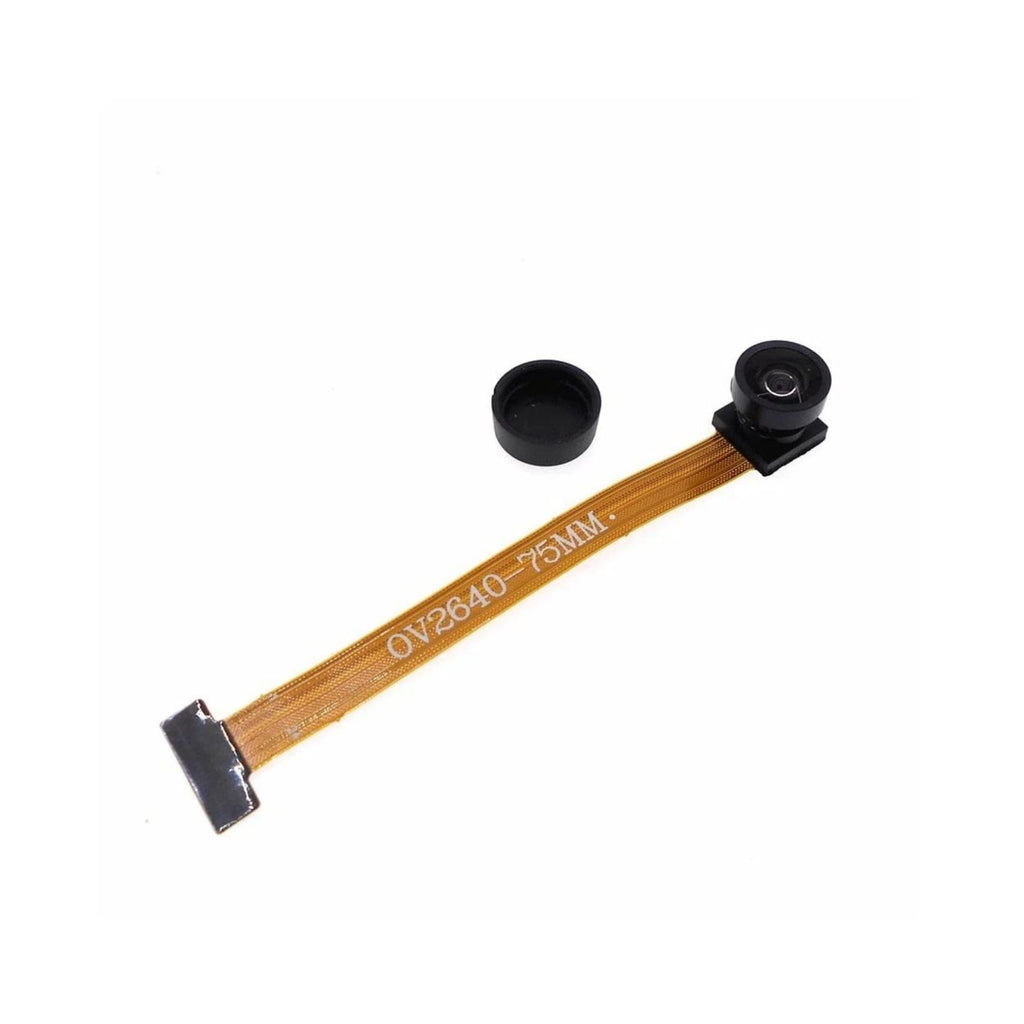

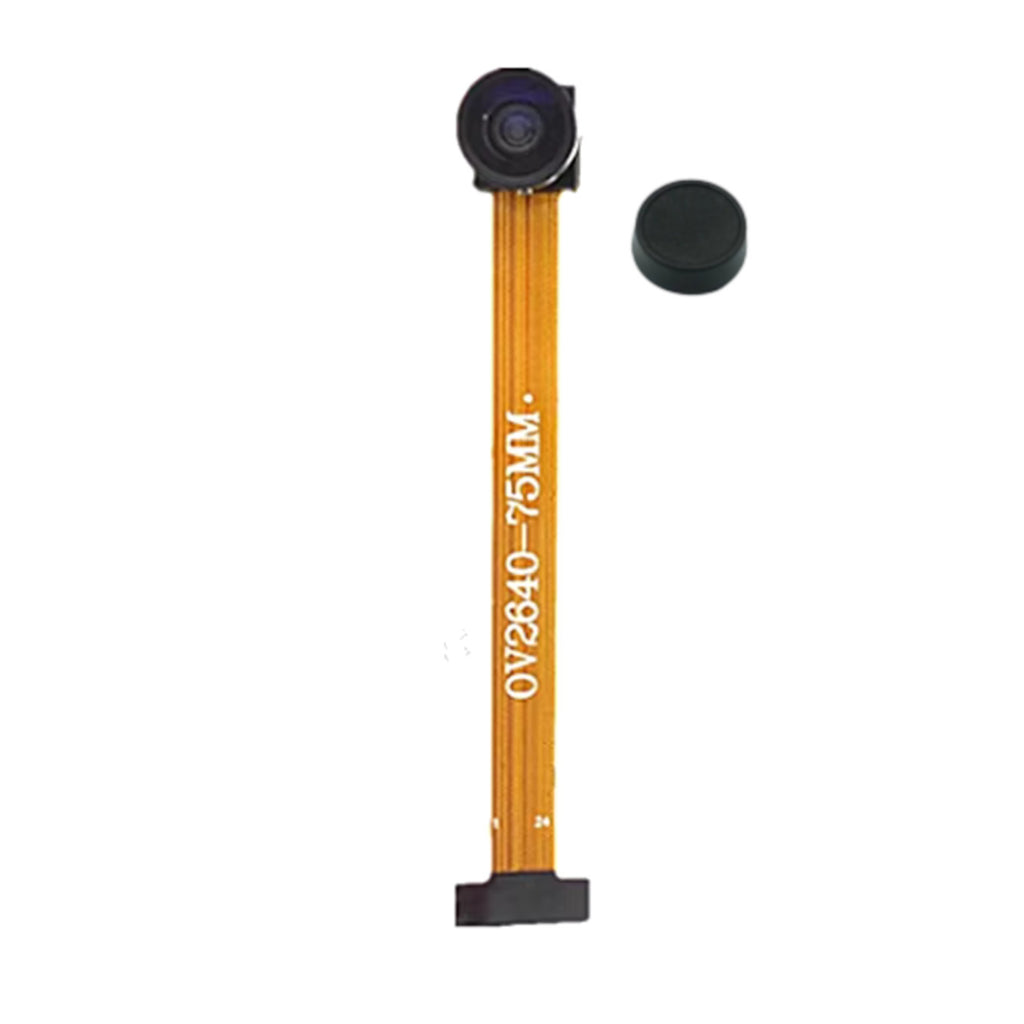

OV2640 160 Degree Wide Angle Lens 2MP Camera Module 24pin 75mm

The OV2640 75mm 160° Camera Module is a compact 2 MP CMOS camera featuring a wide-angle lens and flexible ribbon cable for easy integration into embedded systems. It delivers high-quality image capture, supports JPEG compression, and is widely used in IoT, robotics, surveillance, and machine vision applications where a broad field of view and compact size are required.

Technical Specifications:

• Image Sensor: OV2640 CMOS sensor
• Resolution: Up to 2 MP (1600 × 1200)
• Viewing Angle: 160° wide-angle lens
• Cable Length: 75 mm flexible FPC ribbon cable
• Interface: DVP (Digital Video Port) camera interface

Features:

• Compact camera module with ultra-wide 160° field of view
• Supports JPEG image compression and video streaming
• Low power consumption for embedded applications
• Flexible ribbon cable for easy integration in space-constrained designs
• Lightweight and compact form factor

Applications:

• ESP32-CAM and embedded vision projects
• Robotics and autonomous navigation
• Smart home monitoring systems
• IoT image capture and surveillance devices
• Machine vision and object detection applications
