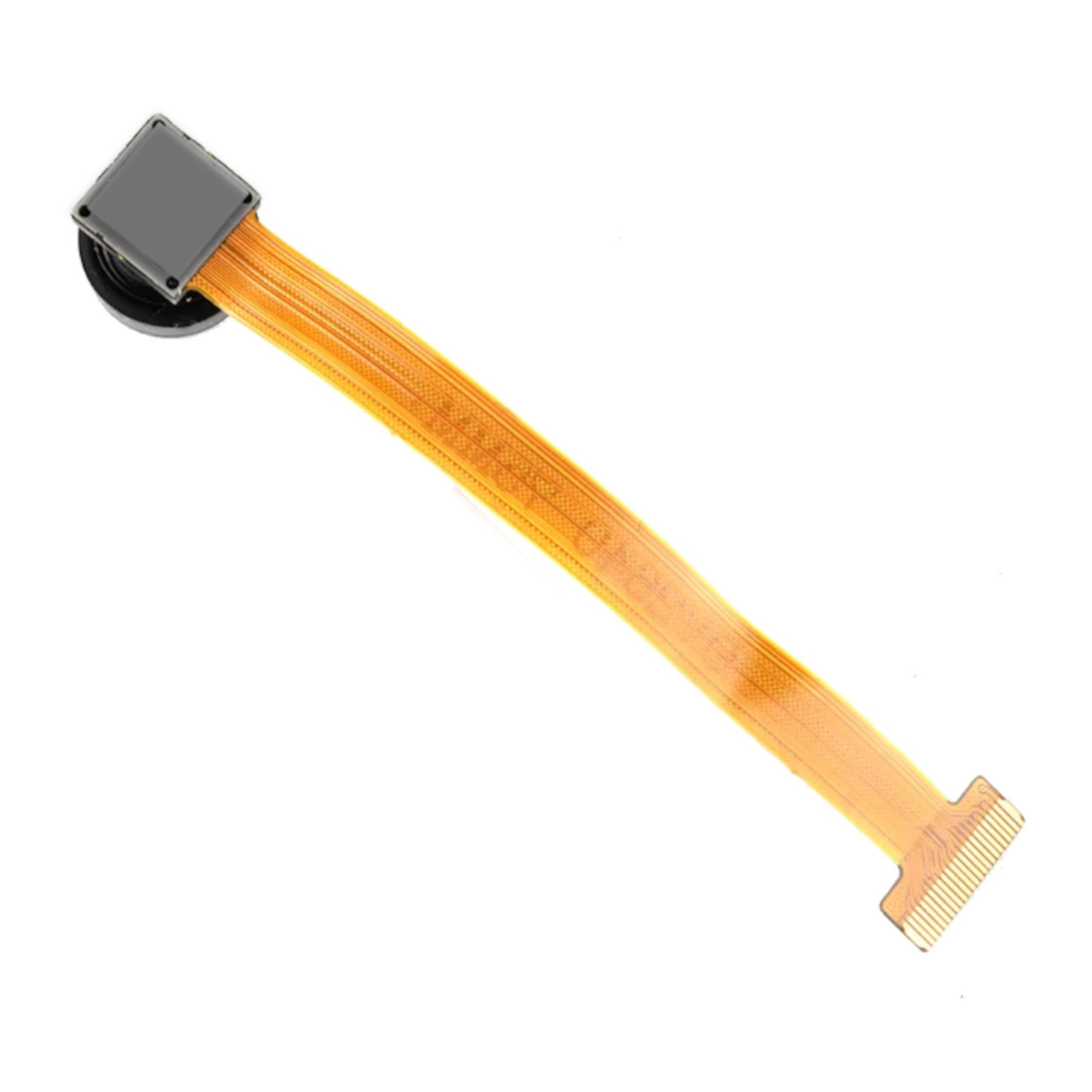

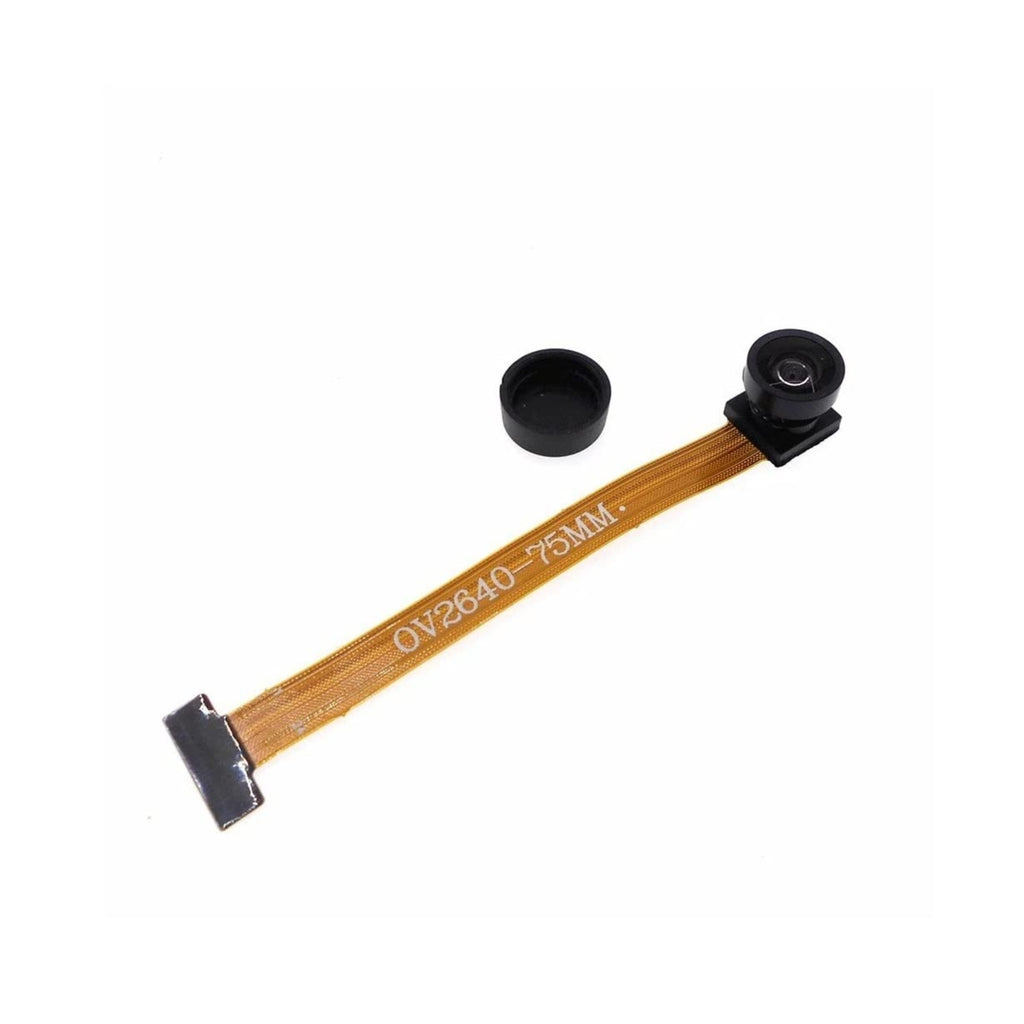

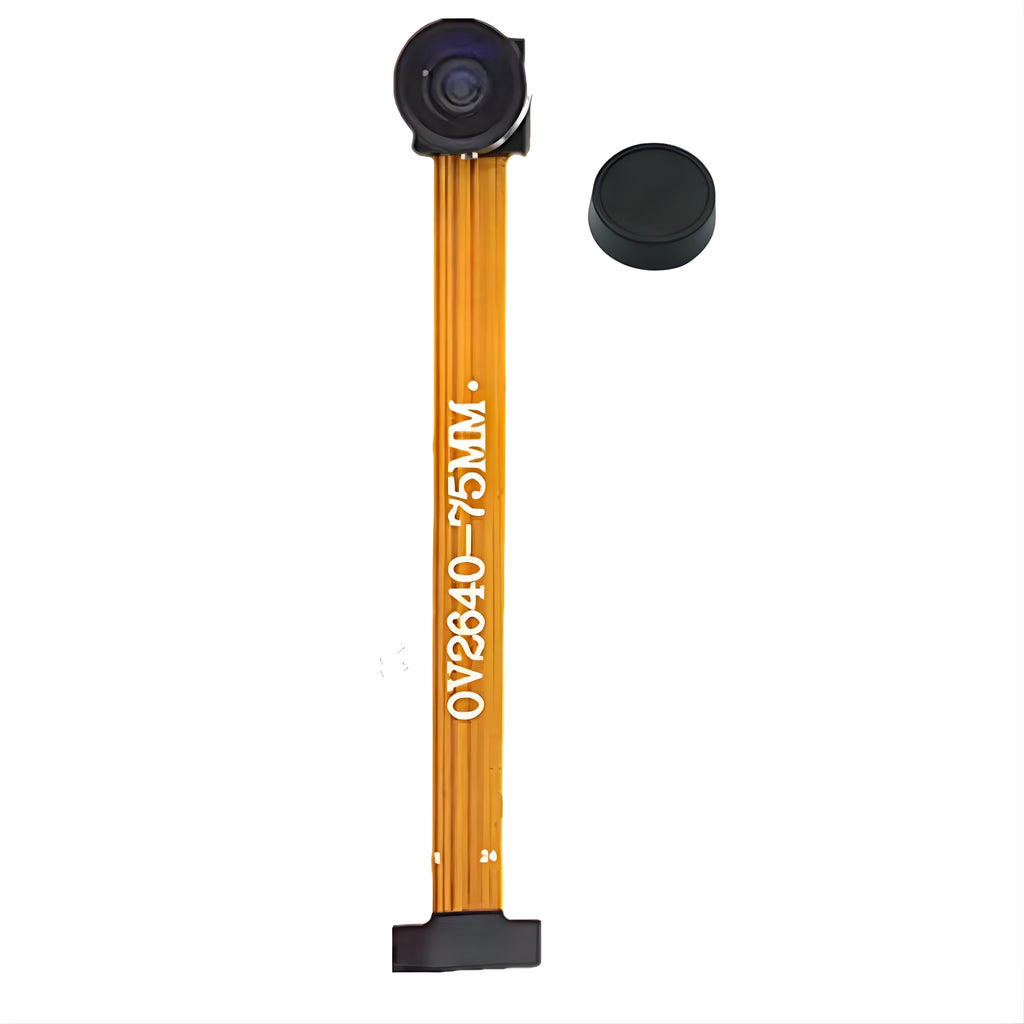

OV2640 160 Degree Wide Angle Lens 2MP Camera Module 24pin 75mm

The OV2640 2 MP Camera Module with 160° Wide Angle Lens is a compact and high-performance CMOS image sensor module designed for embedded vision and imaging applications. It features the OmniVision OV2640 sensor capable of capturing high-quality images and video with a wide 160-degree field of view. The flexible flat cable (FPC) with a 24-pin interface and 75 mm length allows easy integration with development boards such as ESP32-CAM and other compatible platforms. This module is ideal for projects requiring wide-area coverage in a small form factor.

Technical Specifications:

• Image Sensor: OmniVision OV2640
• Resolution: 2 Megapixel (1600 × 1200)
• Lens Type: Wide angle lens
• Field of View: 160°
• Interface: 24-pin FPC
• FPC Length: 75 mm
• Pixel Size: 2.2 µm × 2.2 µm
• Output Formats: JPEG, YUV, RGB
• Frame Rate: Up to 30 fps (VGA)
• Power Supply: 2.5 V – 3.0 V (core), 1.8 V (I/O)
• Image Sensor Type: CMOS
• Focus Type: Fixed focus

Features:

• 2 MP CMOS image sensor for clear image capture
• Ultra-wide 160-degree field of view
• Compact and lightweight camera module
• 24-pin FPC interface for easy connectivity
• Supports multiple image output formats
• Low power consumption
• Suitable for embedded vision applications

Applications:

• ESP32-CAM and microcontroller-based camera projects
• Surveillance and security systems
• Robotics and machine vision
• Smart home and IoT devices
• Wide-angle monitoring applications
• DIY electronics and prototyping
• Educational and research projects
