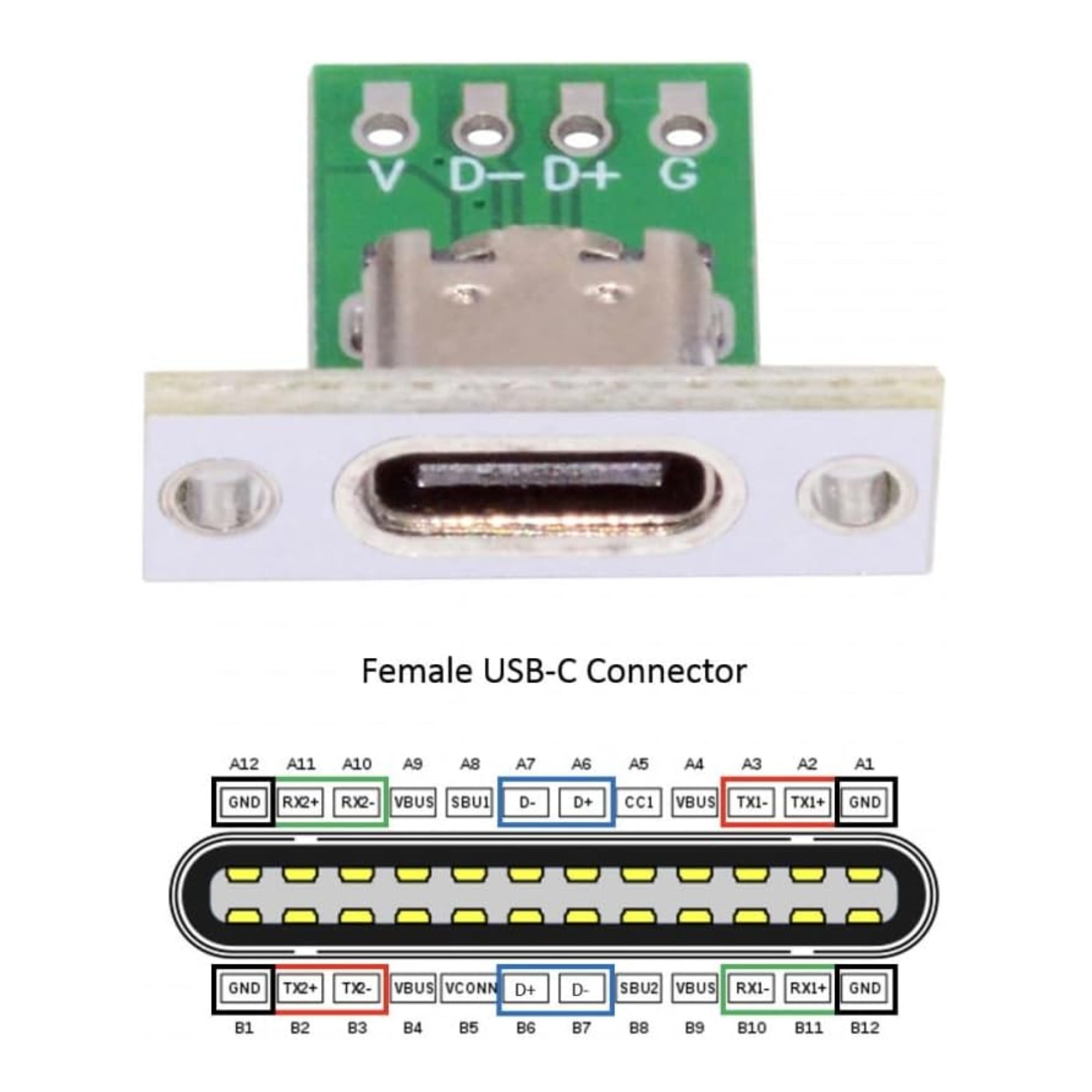

OEM Type C Female Socket Connector Panel Mount Type with PC Board 24pin USB 2.0 Pinout

The USB Type-C Female PMT Module is a compact panel-mount breakout board designed to provide easy access to USB Type-C power and data connections. It converts a USB Type-C female connector into clearly labeled solder pads or pins, making it ideal for custom enclosures, DIY electronics, and embedded projects where a fixed USB-C port is required. The module supports basic USB power and data lines and is well suited for low-power applications.

Technical Specifications:

• Connector Type: USB Type-C female
• Mounting Type: Panel mount (PMT) PCB
• Exposed Pins: V+, D+, D−, GND
• USB Standard Support: USB 2.0
• Rated Voltage: Up to 20 V (USB-C specification, application dependent)
• Current Rating: Up to 3 A (trace and wiring dependent)
• PCB Material: FR-4
• Connector Orientation: Vertical / panel-mount
• Solder Interface: Through-hole / solder pads

Features:

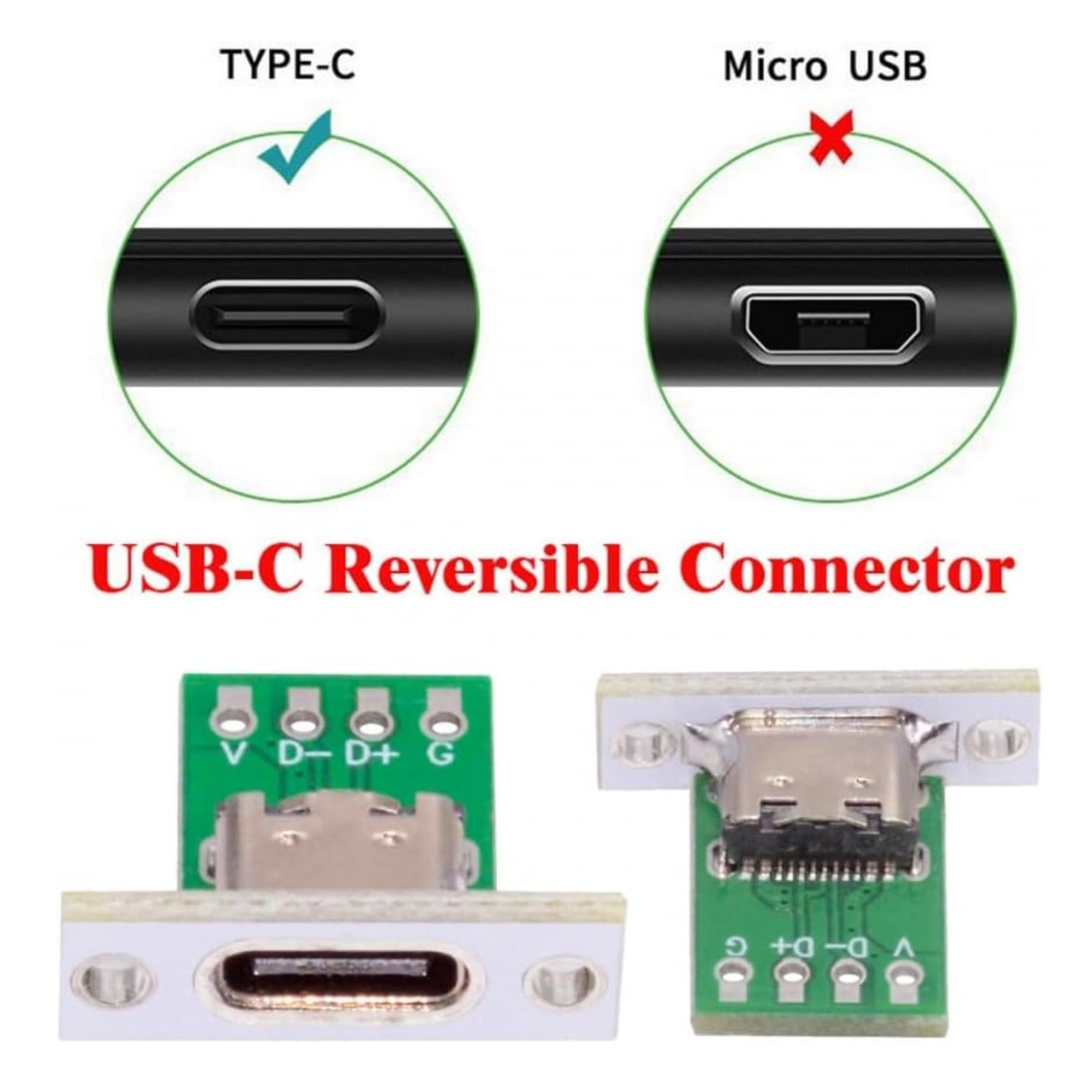

• USB Type-C female connector for modern devices
• Compact and lightweight PCB design
• Easy panel mounting for enclosures and cases
• Clearly labeled power and data pads
• Suitable for power input and basic data applications
• Ideal for prototyping and custom hardware builds
• Durable connector with good mechanical strength

Applications:

• DIY electronics and prototyping
• Power input port for embedded systems
• Custom enclosures and control panels
• USB-powered projects and devices
• Arduino, ESP32, and Raspberry Pi accessories
• Repair and replacement of USB-C ports
