Description

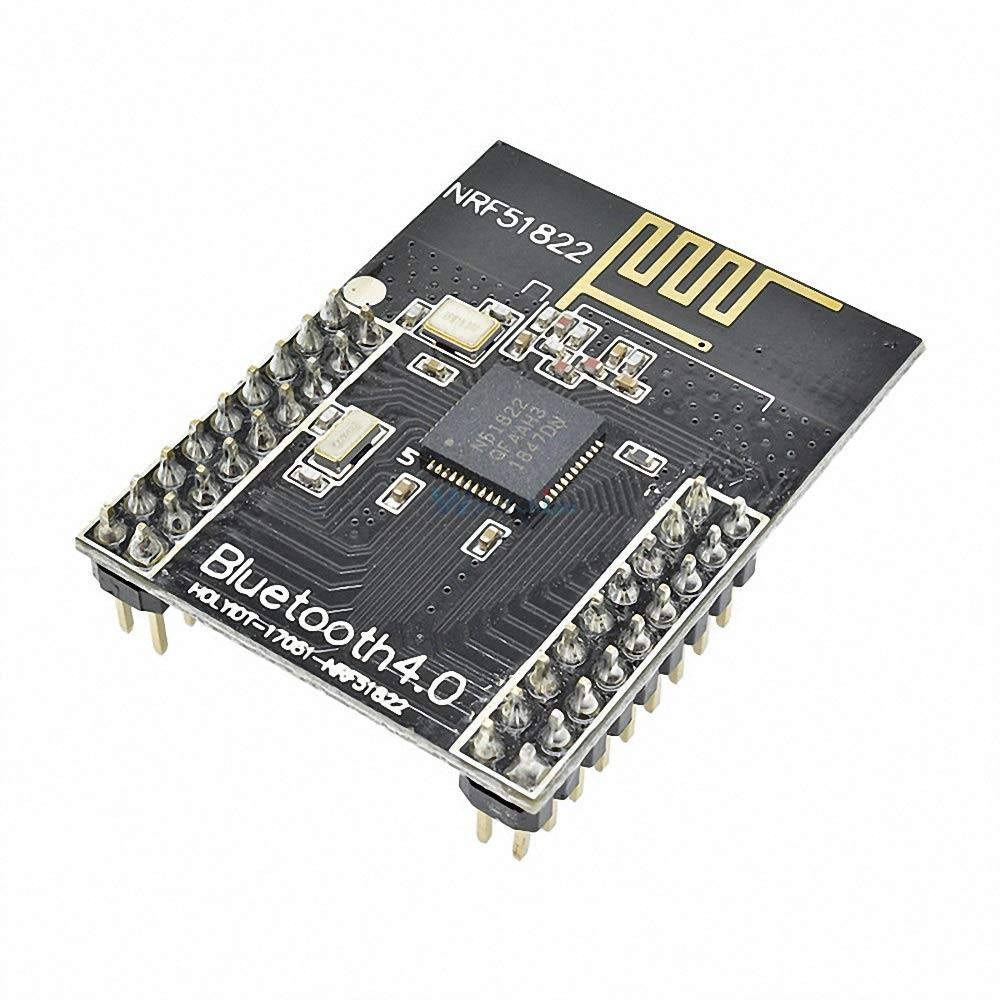

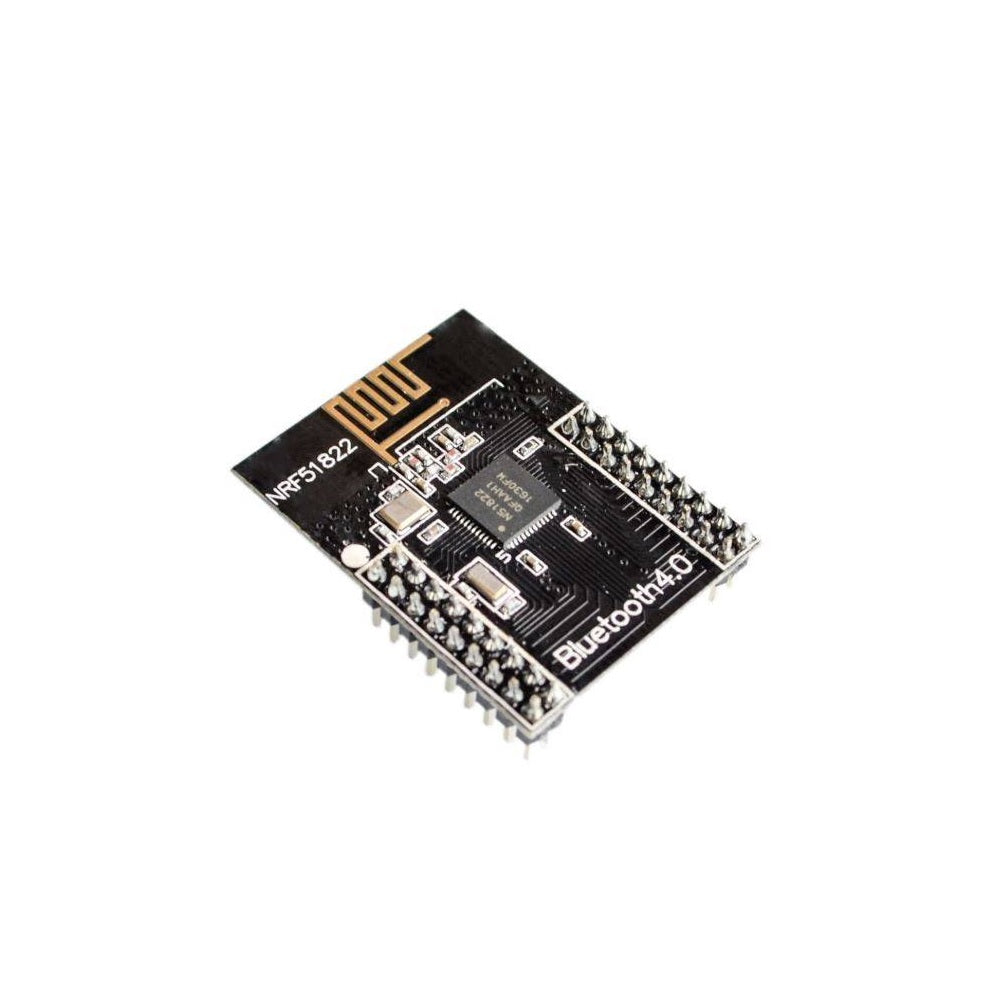

This module called the CORE51822 is a wireless module based on nRF51822 - the Multiprotocol Bluetooth 4.0 low energy/2.4 GHz RF SoC IC designed for ULP (ultra low power) wireless applications. The NRF51822 is a one the most popular BLE ICs available. Its huge popularity ensures, you will find numerous resources, tutorials and sample codes for the module. Nordic also provides a lot of sample codes to demonstrate everything from blinking LEDs to communicating with smartphones through BLE. This makes it easy to start development with the NRF51822 IC and get your product ready faster.
Technical Specification:
- Operating voltage: 1.8 V ~ 3.6 V
- Onboard chip: nRF51822
- Communication distance (open outdoor@1M data rate): 30 m
- Frequency range: 2.4GHz
- Operating voltage: 2.0 Volts to 3.6 volts
- Operating temperature: -40° ~ 85°

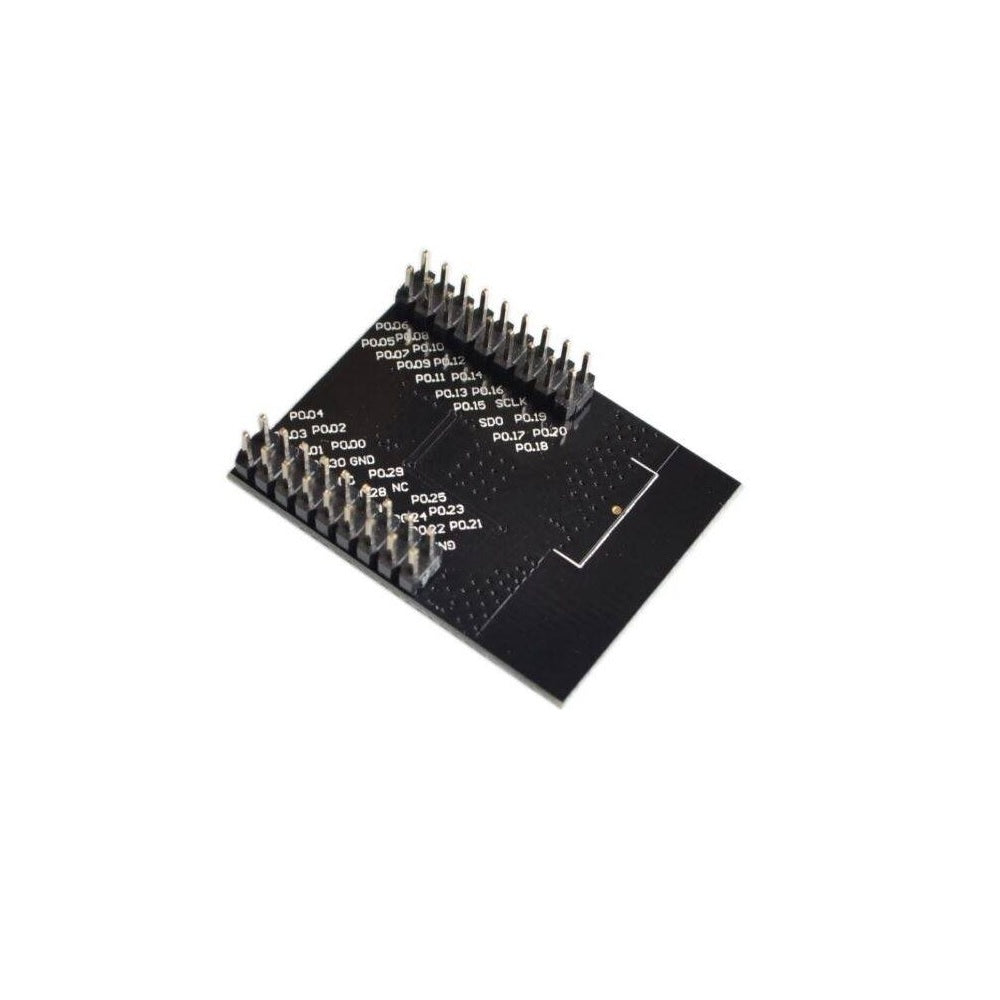

- Expansion pin header: all the I/Os except P0.26 and P0.27
- Pinheader pitch: 2.00 mm
Features:
- Independent application development and protocol stack
- Fully compatible with NRF24L series
- Pinout compatible with NRF51xxx series
- Global separate power management
- Programmable Peripheral Interconnect (PPI)
Applications:
- Proximity and security alert tags
- Healthcare and lifestyle sensors
- Game controllers for computers
- Toys and Electronic games
- Domestic/Industrial control and data-acquisition
- Intelligent domestic appliances
