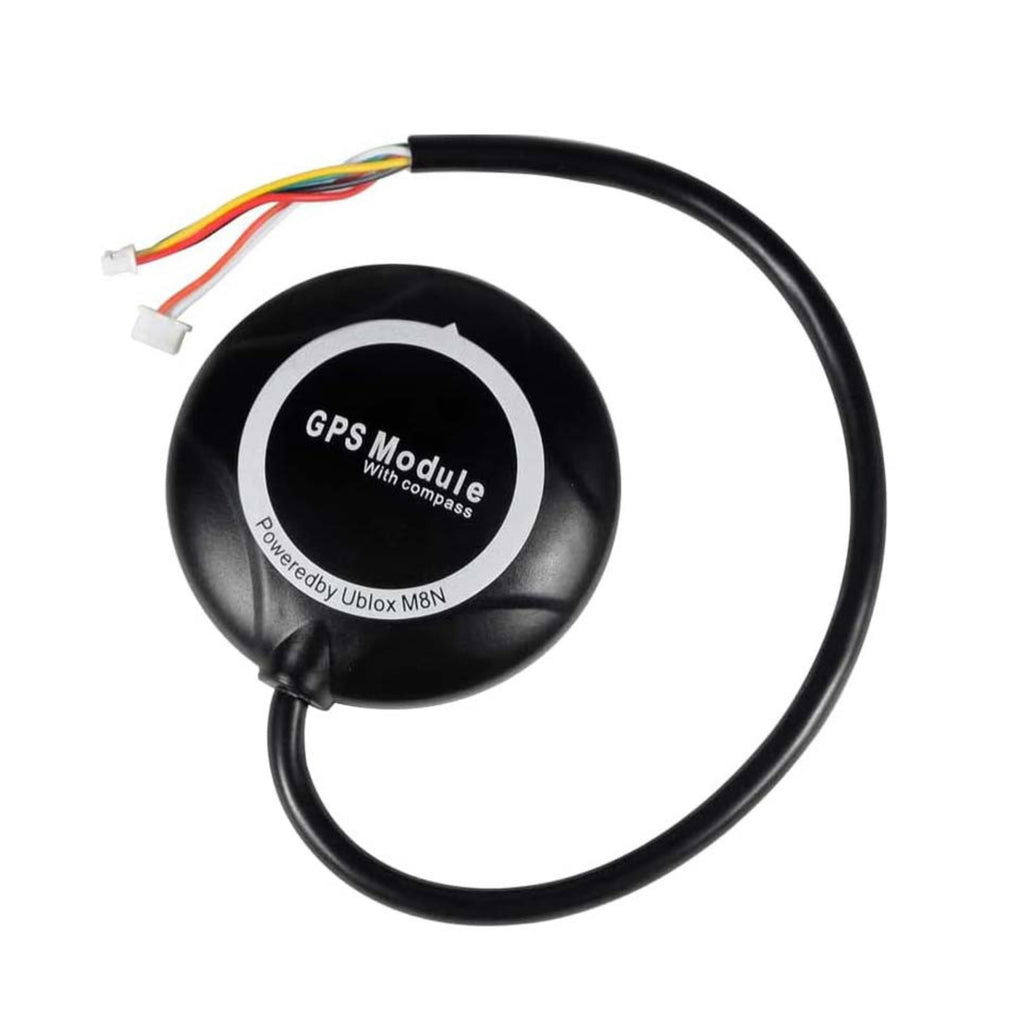

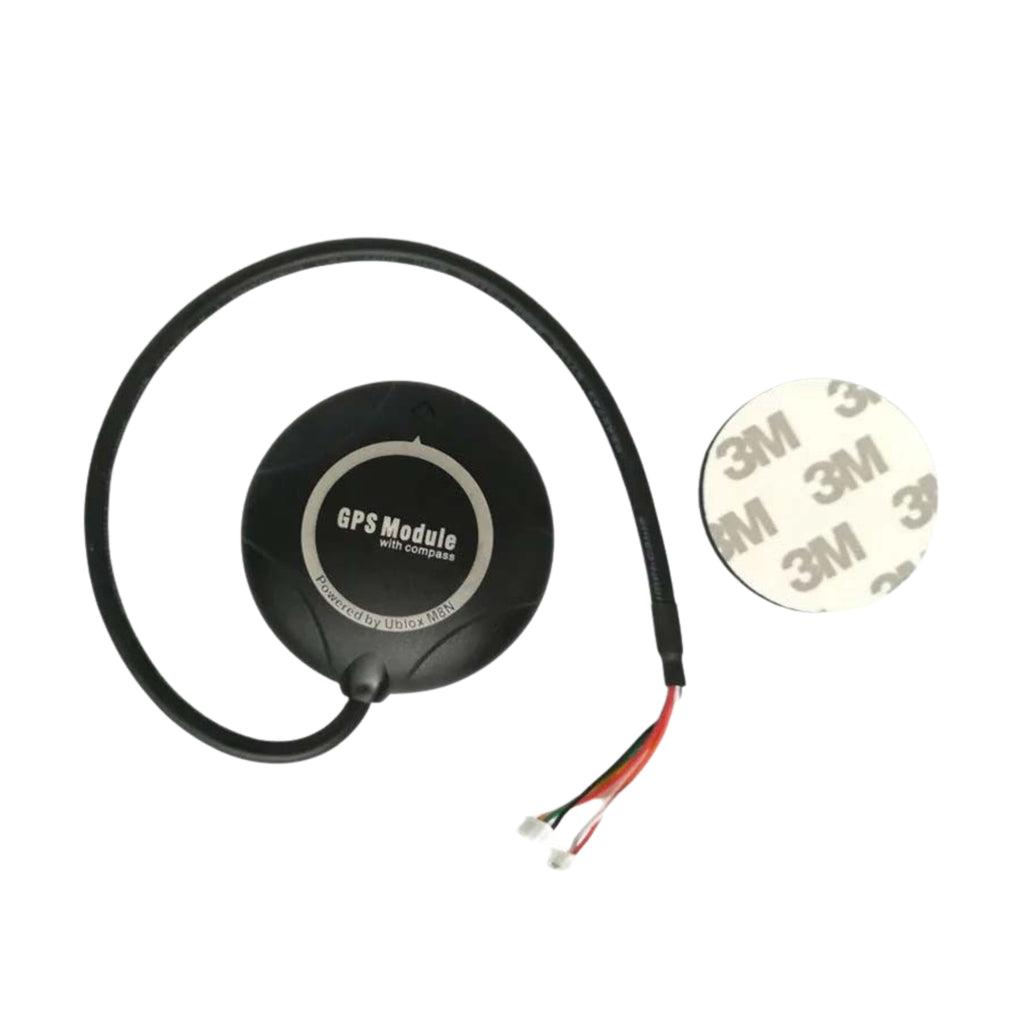

NEO-M8N GPS With Compass

The NEO-M8N GPS with Compass is a high-performance satellite positioning module powered by u-blox M8N technology, designed for precise navigation and reliable heading information. It integrates a GPS receiver and digital compass in a compact, weather-resistant enclosure, making it ideal for flight controllers, drones, robotics, and outdoor navigation systems. The module supports multiple GNSS constellations for faster lock times and improved accuracy in challenging environments.

Technical Specifications:

• GPS Chipset: u-blox NEO-M8N
• Supported GNSS: GPS, GLONASS, QZSS, SBAS
• Position Accuracy: Up to 2.5 m CEP
• Compass: Integrated digital magnetometer
• Update Rate: Up to 10 Hz
• Operating Voltage: 5 V
• Interface: UART / I²C (depending on controller)
• Antenna: Built-in ceramic patch antenna
• Cable Length: Approx. 25–30 cm
• Compatibility: APM, Pixhawk, and other flight controllers

Features:

• Multi-GNSS support for faster and more stable positioning
• Integrated compass for accurate heading data
• High sensitivity receiver for improved signal acquisition
• Compact, sealed housing suitable for outdoor use
• Plug-and-play compatibility with popular flight controllers
• Stable performance for aerial and ground applications

Applications:

• Drone and UAV flight control systems
• APM / Pixhawk-based autopilots
• Robotics navigation and positioning
• Autonomous vehicles and tracking systems
• GIS and mapping projects
• Outdoor navigation and telemetry systems
