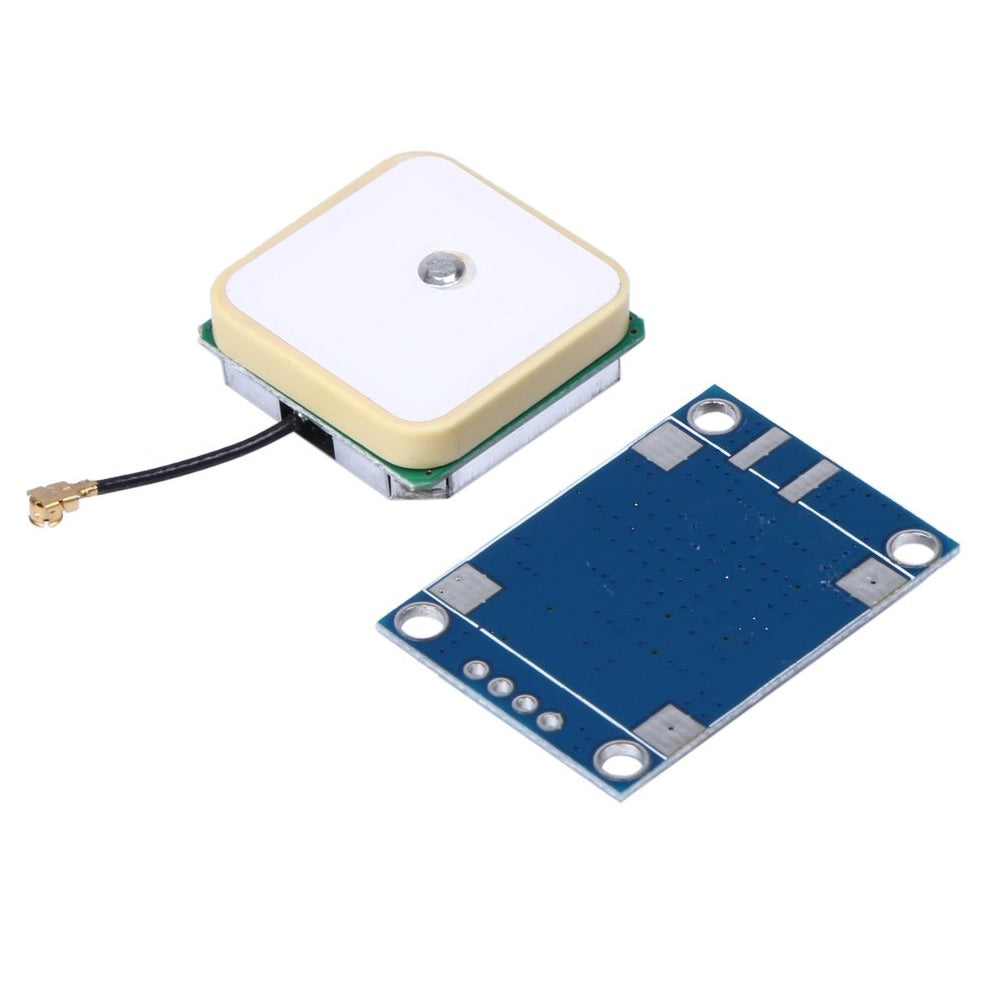

NEO-M8N GPS Module with Ceramic Active Antenna

SKU: VM825

Send Inquiry

Description

The NEO-M8M GPS Module with Ceramic Active Antenna series of concurrent GNSS modules is built on the high performing M8 GNSS engine in the industry proven NEO form factor. The module has a high-quality plastic transformer and a bright seven-segment three-digit display. The module can actively monitor the battery voltage through the Vin terminal and disable the 220V output connected to the battery charger when the battery is fully charged.

 Technical Specification:

NEO-M8M GPS:

  • Supply Voltage: 7 ~ 3.6V
  • supply current: 67mA
  • Operating temperature: -40 ~ +85°C
  • Horizontal position accuracy: 5m
  • Size: 36mm*26mm*4.5mm (L*W*H)

 Ceramic Active Antenna:

  • Connecting cable length: 20mm
  • Size: 25.5mm*25mm*8.5mm (L*W*H)

 Features:

  • With data backup battery
  • Compatible with various flight controller module
  • Built-in RTC crystal
  • Anti-jamming Active CW detection and removal
  • The ceramic antenna provides a very strong signal

Applications:

  • Industrial applications
  • Automotive applications
  • Animal tracking devices
