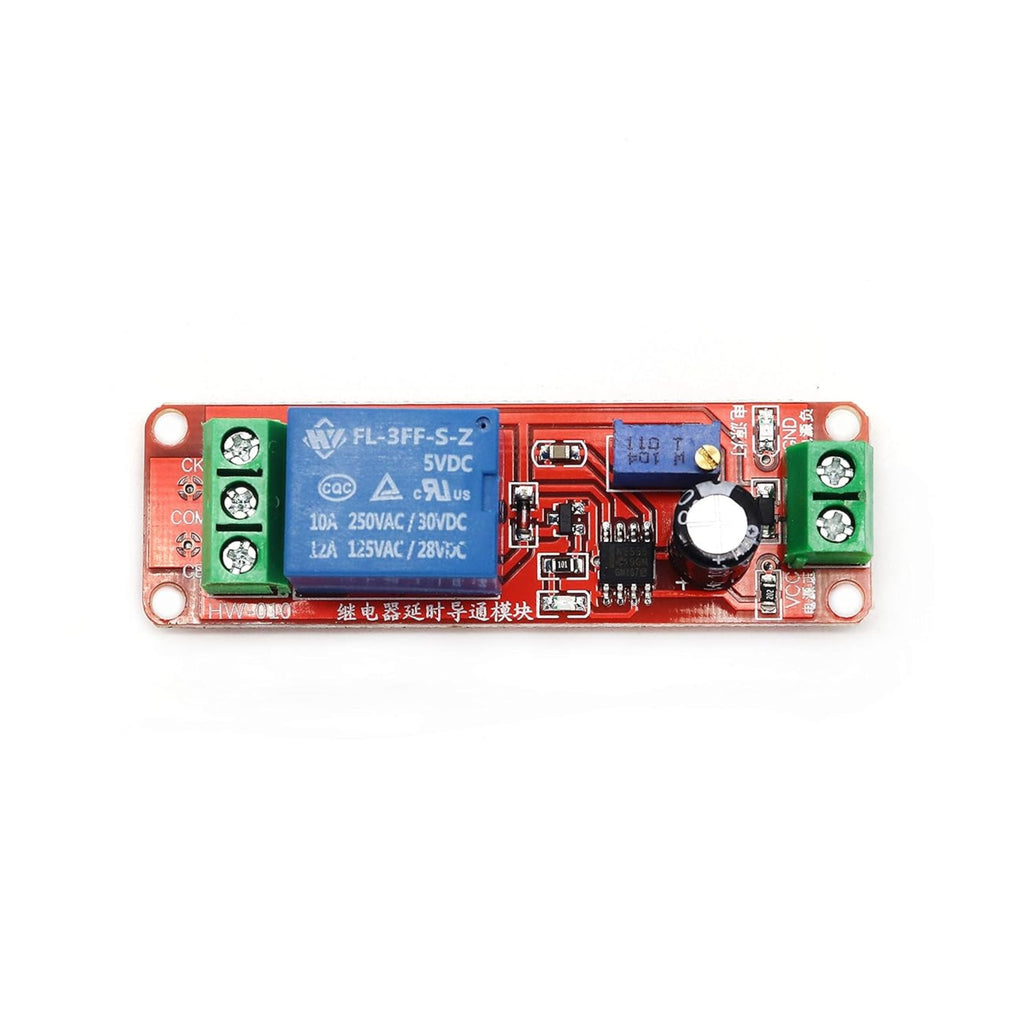

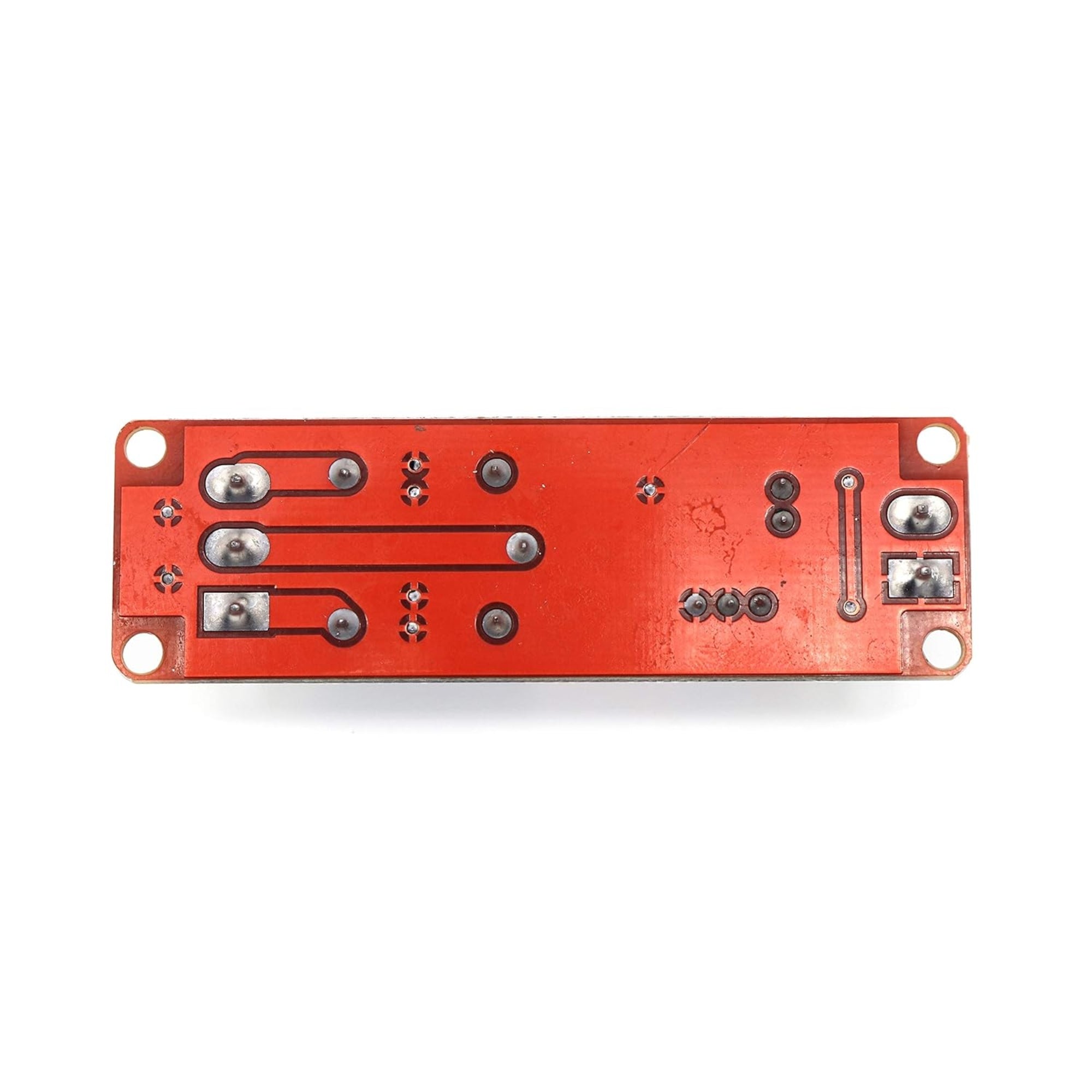

NE555 Time Delay Switch Module 5V

The NE555 Time Delay Switch Module (5V) is a compact and adjustable delay control module based on the popular NE555 timer IC. It allows you to turn a relay ON or OFF after a preset delay time, making it ideal for automation, protection, and sequencing applications. The onboard potentiometer enables easy adjustment of the delay duration without additional programming or components.

Technical Specifications:

• Operating Voltage: 5V DC

• Control IC: NE555 Timer

• Relay Type: Single-channel electromagnetic relay

• Relay Rating: Up to 10A @ 250V AC / 30V DC

• Delay Time Range: Adjustable (milliseconds to several seconds, depending on configuration)

• Trigger Type: Power-on trigger

• Adjustment Method: Onboard potentiometer

• Output Interface: Relay NO / COM / NC terminals

• Mounting Type: PCB mount with screw terminals

• Board Material: FR4 PCB

Features:

• Based on reliable NE555 timer IC

• Adjustable delay time using onboard potentiometer

• High-current relay output for AC and DC loads

• Compact and easy-to-install design

• Stable and repeatable timing performance

• Screw terminals for secure wiring

• Suitable for low-voltage control systems

• No microcontroller or programming required

Applications:

• Time-delay power switching

• Motor and pump delay control

• Power-on reset and startup delay circuits

• Industrial automation sequencing

• Home automation projects

• Relay-based protection circuits

• DIY electronics and learning projects

• Load control with delayed activation
