Description

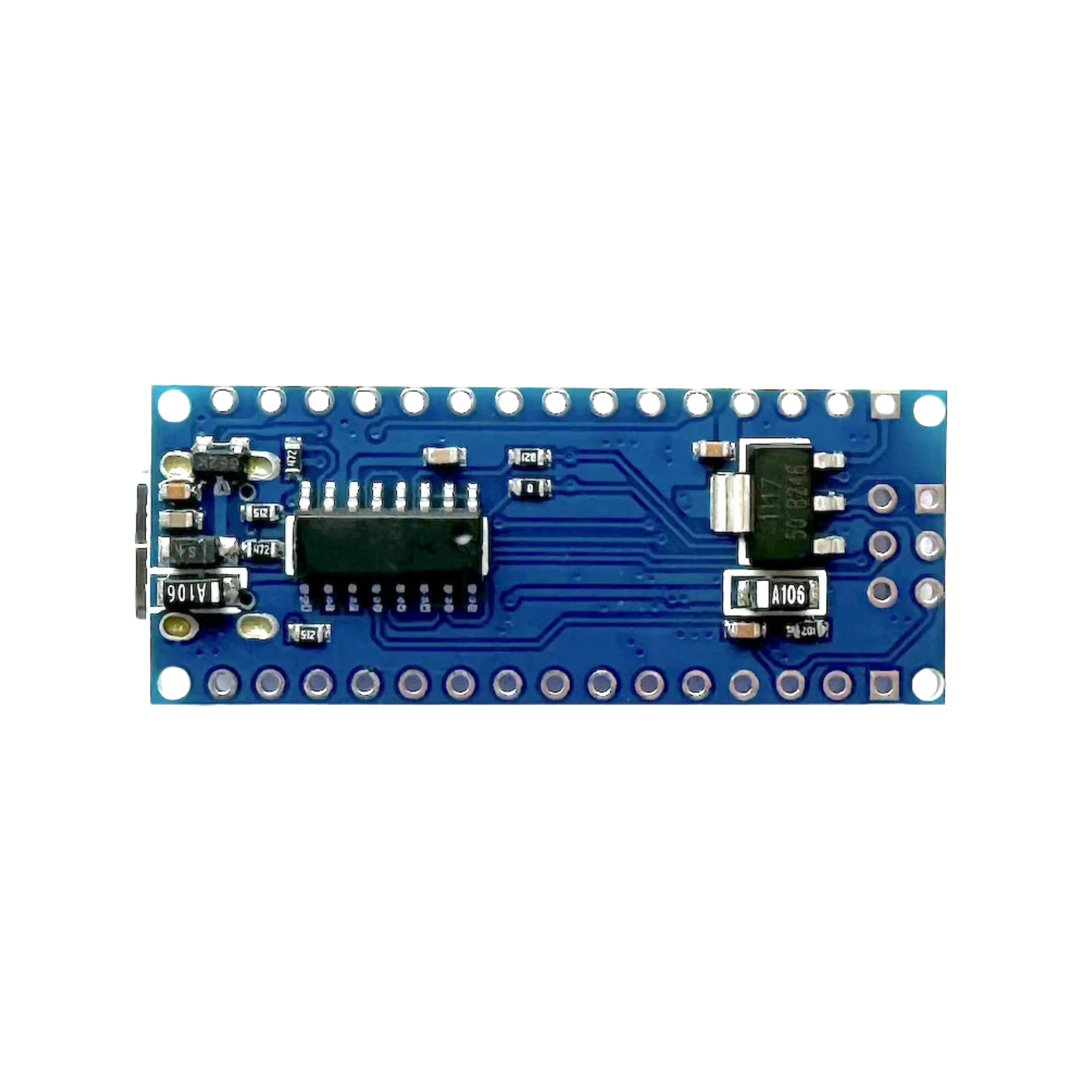

The Nano USB-C Board (Unsoldered) is a compact microcontroller development board compatible with the Arduino Nano form factor and equipped with a modern USB Type-C connector. It is designed for embedded development, prototyping, and DIY electronics where small size and easy USB connectivity are required. The board comes without soldered header pins, allowing users to customize pin orientation or directly solder wires for space-constrained applications. It is fully compatible with the Arduino IDE and supports a wide range of sensors, modules, and peripherals.
Technical Specifications:
- Microcontroller: ATmega328P
- USB Interface: USB Type-C
- Operating Voltage: 5 V
- Input Voltage (VIN): 7 V – 12 V (recommended)
- Clock Speed: 16 MHz
- Flash Memory: 32 KB
- SRAM: 2 KB
- EEPROM: 1 KB
- Digital I/O Pins: 14 (6 PWM)
- Analog Input Pins: 8
- Communication Interfaces: UART, SPI, I²C
- Board Type: Arduino Nano compatible (unsoldered headers)
Features:
- Compact Nano-size form factor
- Modern USB Type-C connector
- Unsoldered headers for flexible mounting
- Fully compatible with Arduino IDE
- Breadboard-friendly design
- Low power consumption
- Ideal for permanent installations and compact builds
Applications:
- Embedded system development
- DIY electronics and prototyping
- Sensor interfacing projects
- IoT and automation applications
- Educational and learning projects
- Space-constrained electronics designs
- Robotics and control systems
