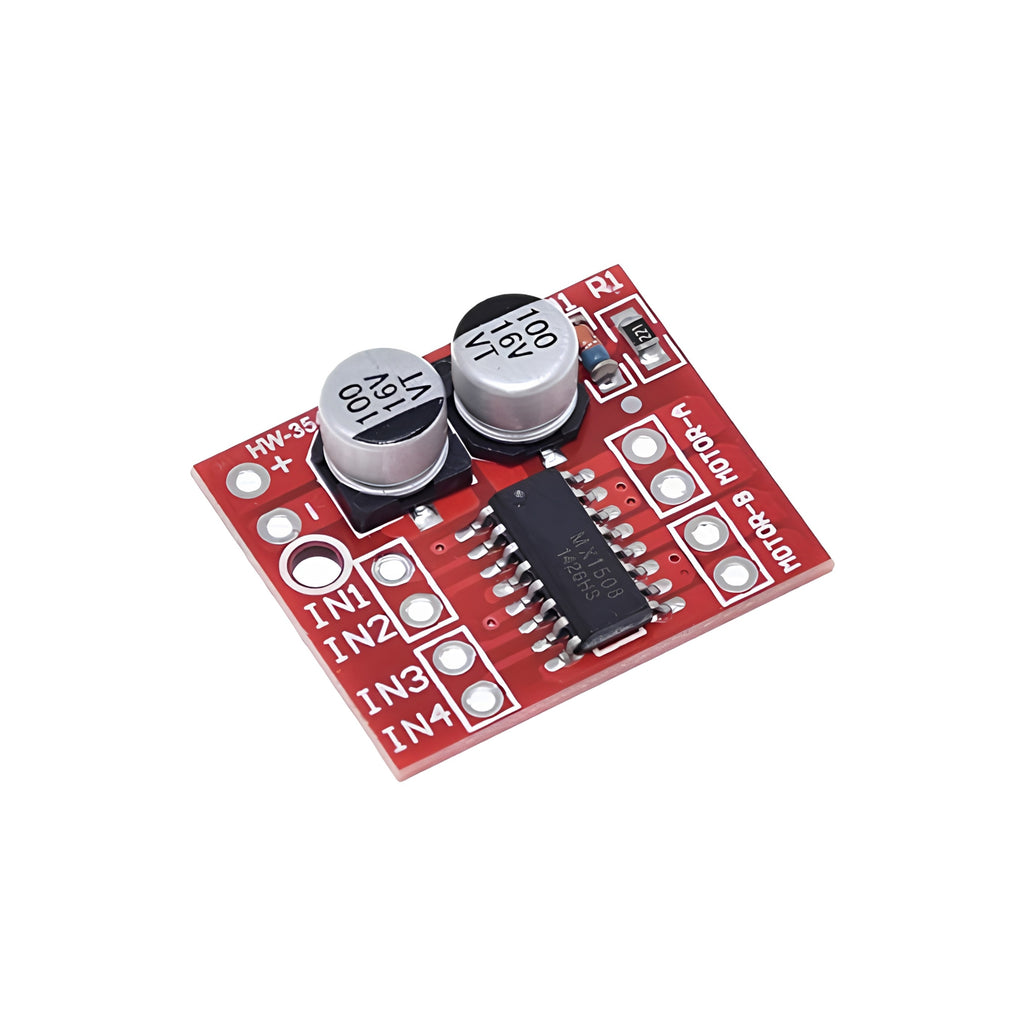

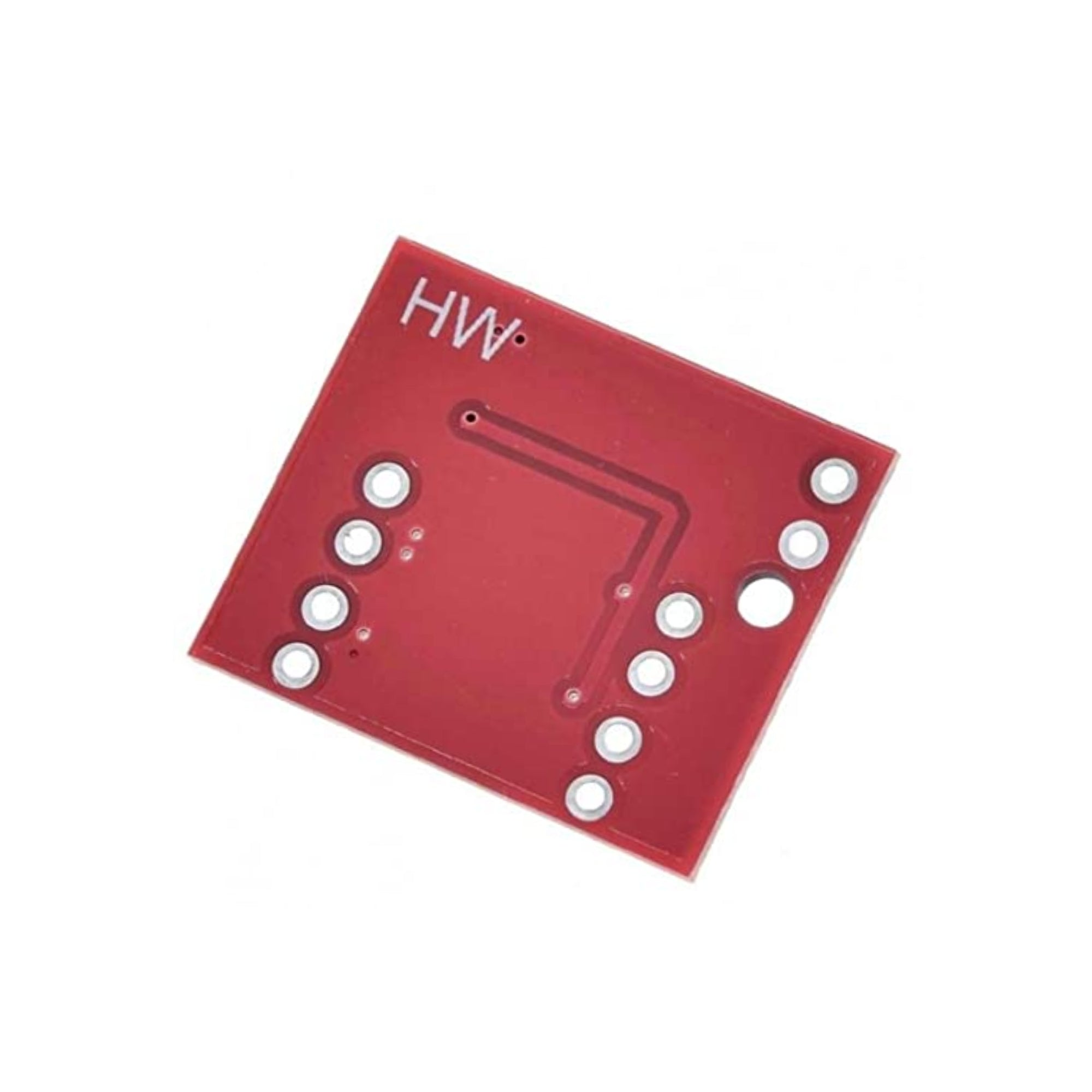

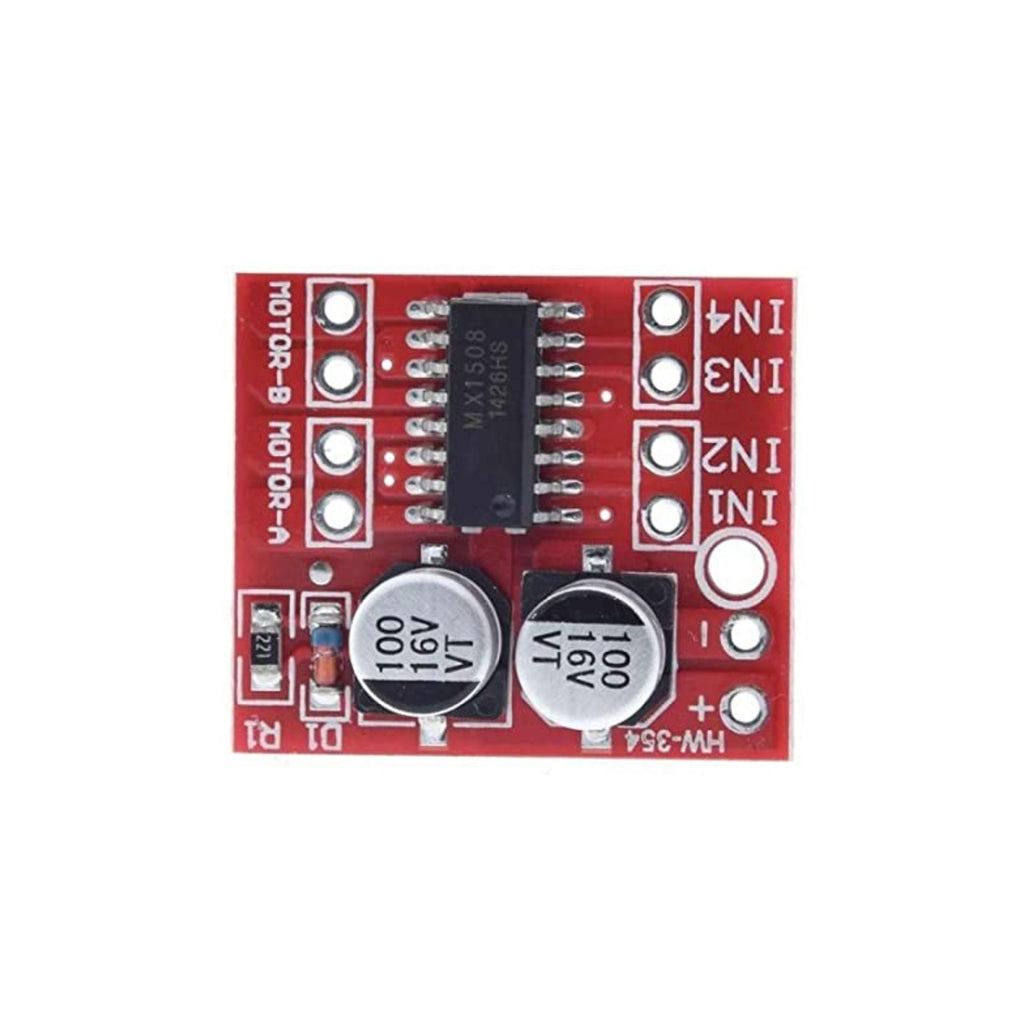

MX1508 Dual Motor Driver Module

The MX1508 Dual Motor Driver Module is a compact DC motor driver board designed to control two DC motors or one stepper motor simultaneously. Based on the MX1508 H-Bridge driver IC, the module provides bidirectional motor control with PWM speed regulation capability. It is suitable for low-voltage robotics and embedded motor control applications. Due to its compact size, low power consumption, and simple interfacing, the module is widely used with Arduino, ESP32, Raspberry Pi, and other microcontroller platforms for robotics, smart vehicles, and automation projects.

Technical Specifications:

• Operating Voltage: 2V – 10V DC
• Driver IC: MX1508 H-Bridge Motor Driver
• Output Channels: 2 DC motors or 1 stepper motor
• Continuous Output Current: Up to 1.5A per channel
• Control Interface: PWM and Direction Control

Features:

• Dual DC motor control support
• PWM speed control capability
• Forward and reverse motor rotation
• Compact and lightweight design
• Easy interfacing with microcontrollers

Applications:

• Robotics projects
• Smart car and vehicle control
• DIY automation systems
• Small motor control applications
• Embedded electronics projects
