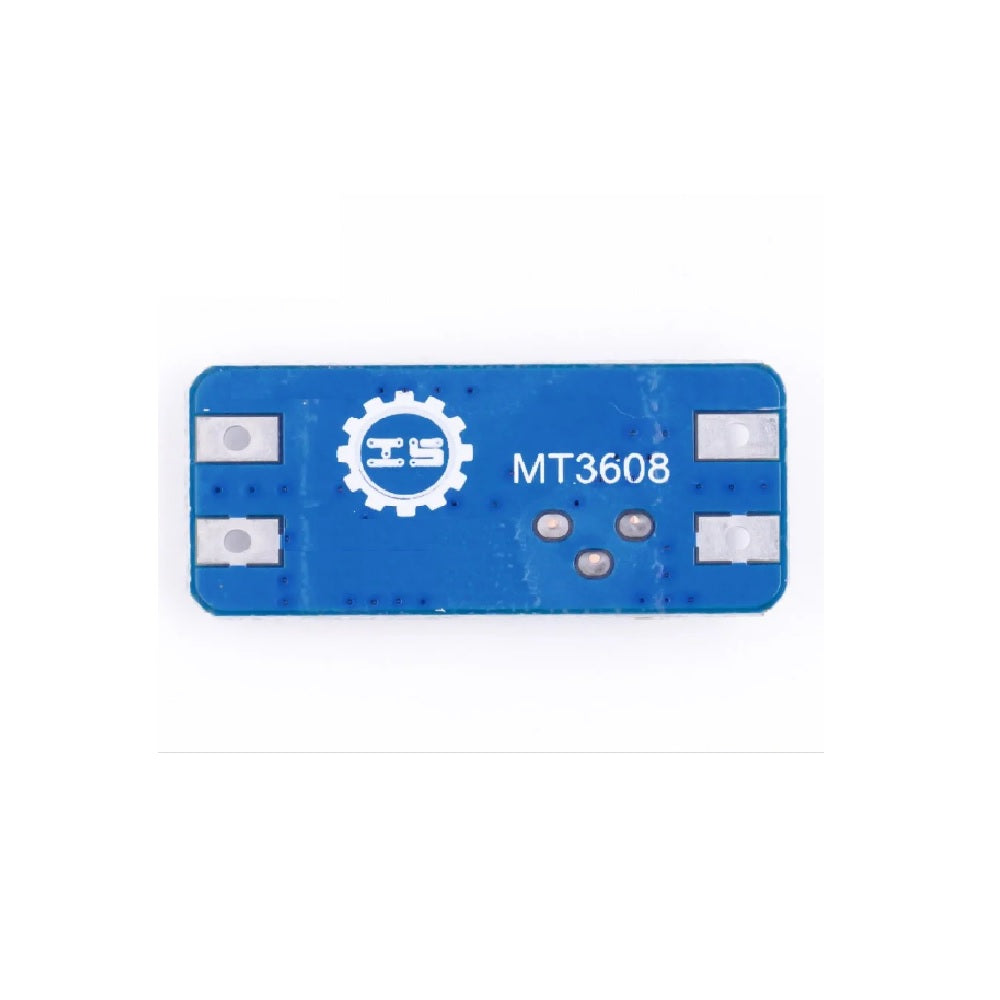

MT3608 2A Max DC-DC Step Up Power Module Booster Power Module

SKU: VM447

Send Inquiry

Description

The MT3608 power module is a step-up(Boost) converter module intended for small and low-power applications. The module has the capability to regulate the output voltage up to 28V and deliver an output current of a maximum of 2A. The module consists of MT3608 IC which comes in a 6-Pin SOT23-6 Package switches at 1.2Mhz which allows the use of tiny capacitors and inductors leading to a compact size power boost module.

Technical Specification:

  • Input Voltage: 2-24V DC
  • Output Voltage: 5-28V DC
  • Maximum Output Current: 2A
  • Switching Frequency: 1.2Mhz
  • Output Ripple: <100mV
  • Size: 37.2mm*17.2mm*14.0mm(L*W*H)

Features:

  • It can source a good amount of current
  • It is an inexpensive converter module
  • It’s simple to adjust to get your desired increase in voltage

Applications:

  • Power amplifiers
  • Battery power systems
  • Consumer electronics
  • DC motor drivers
