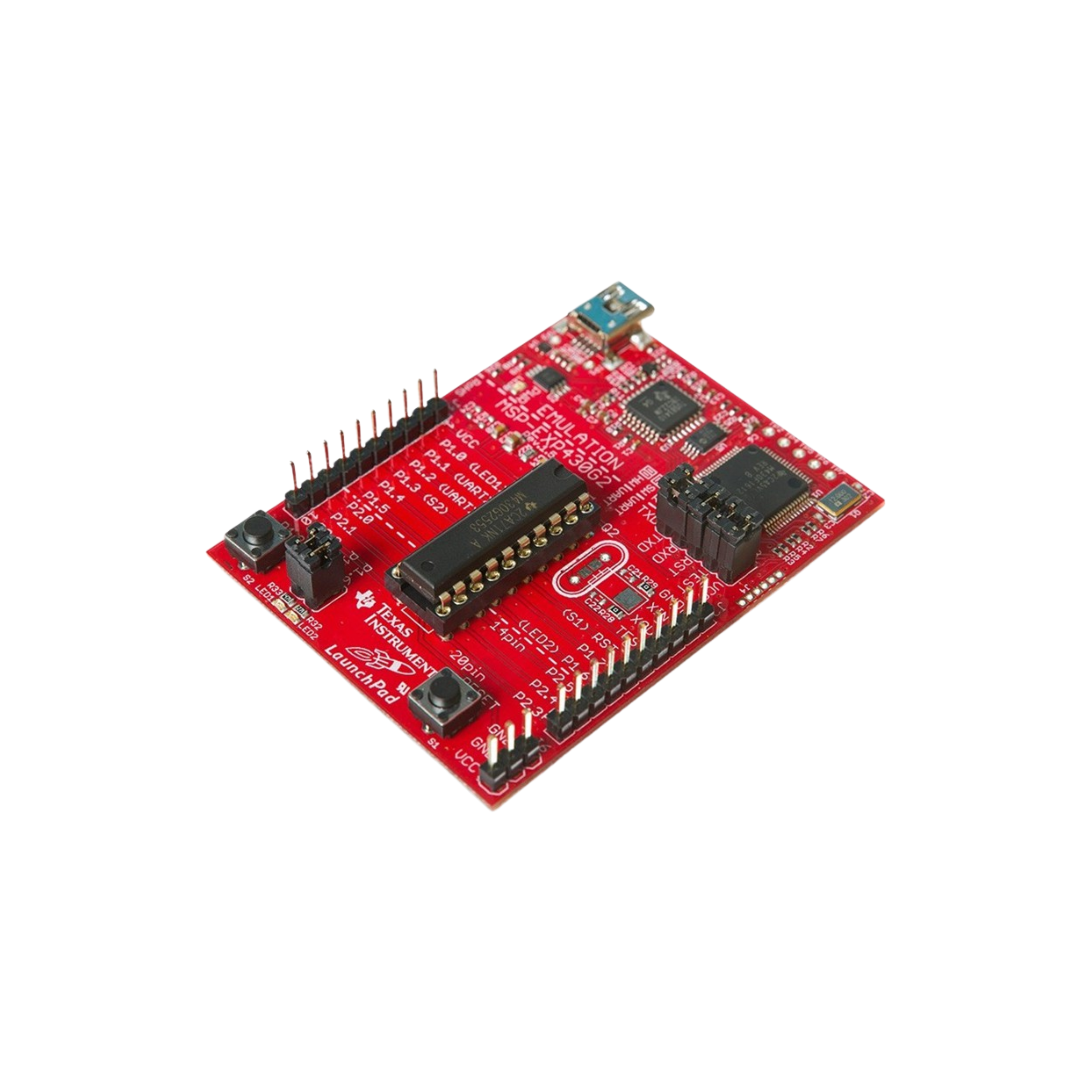

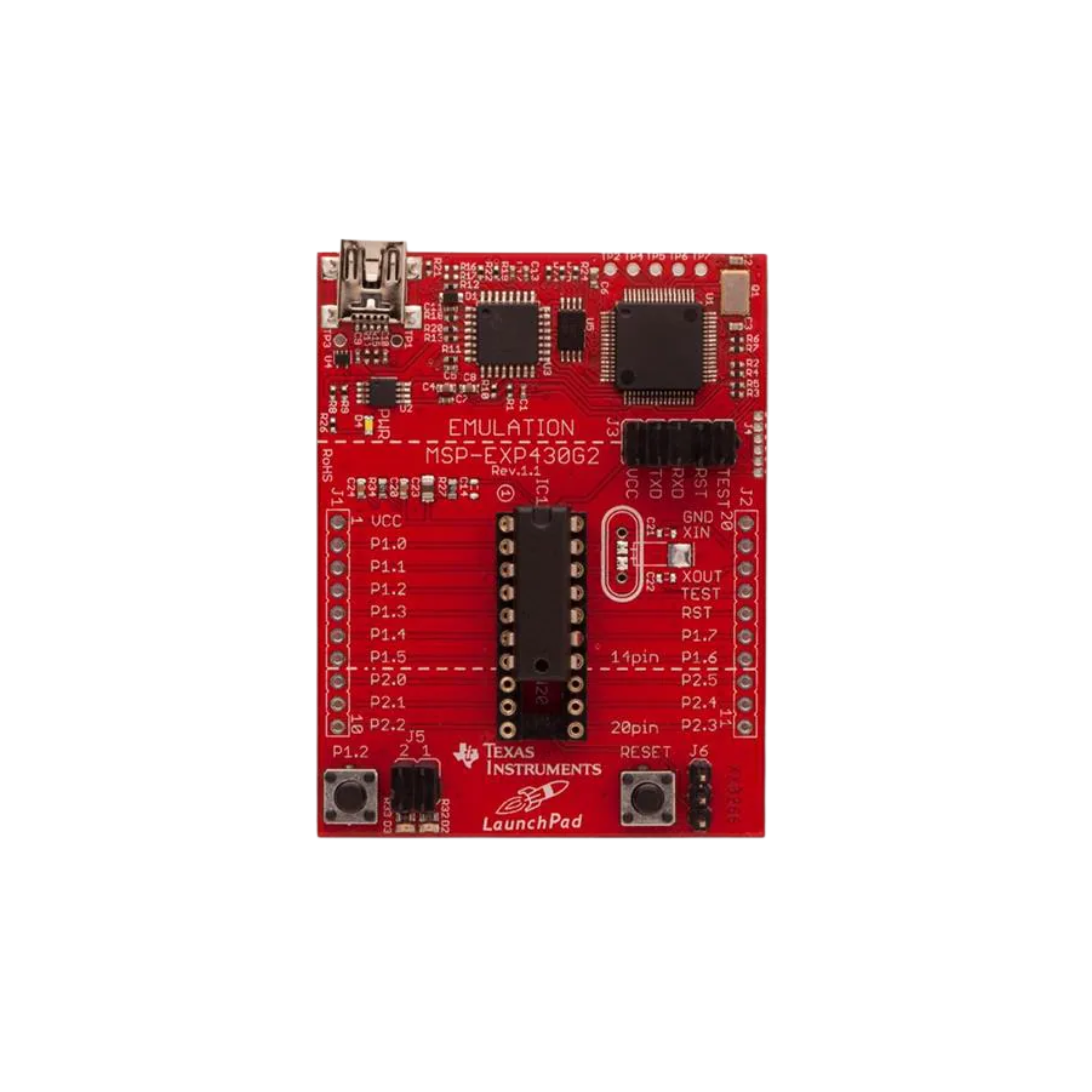

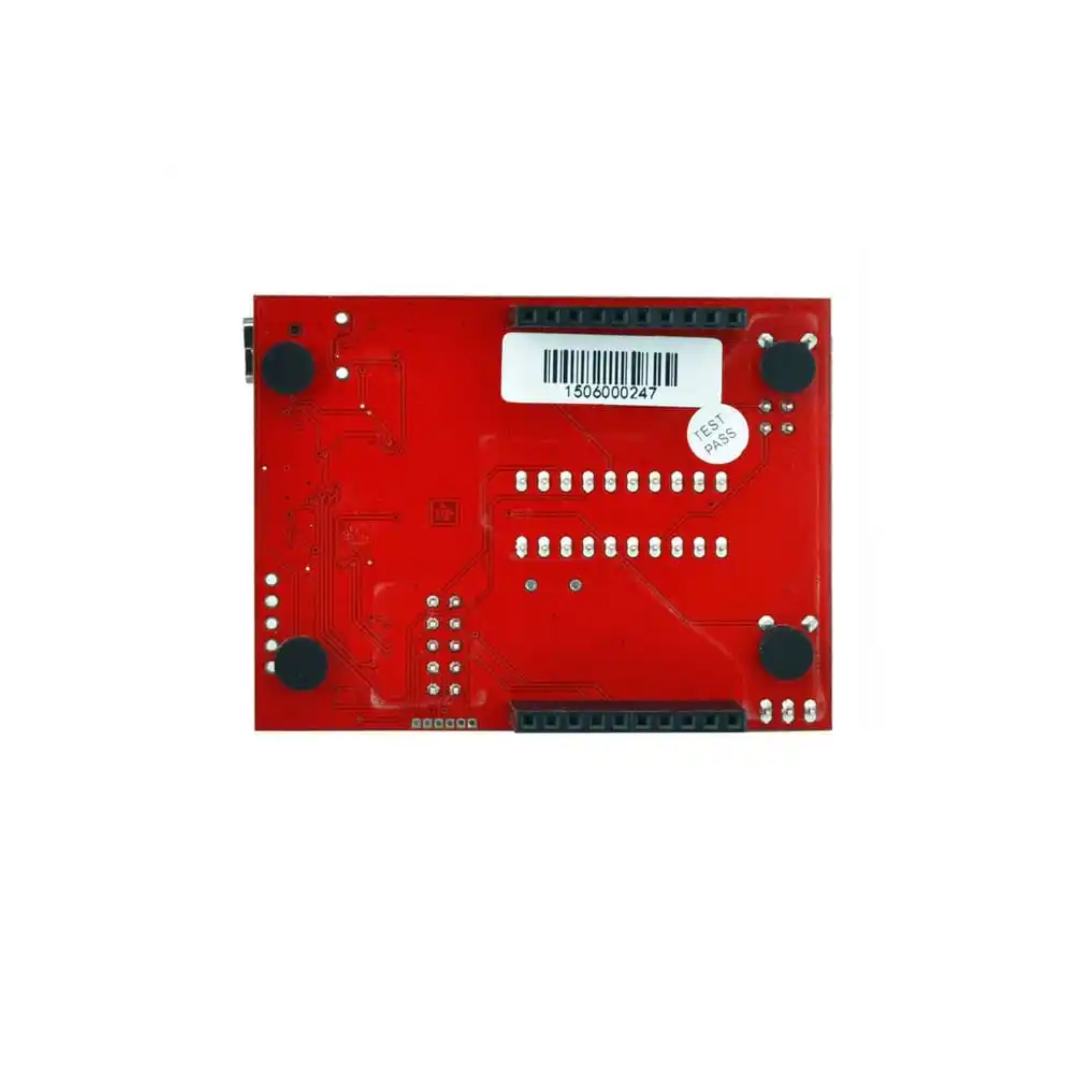

MSP-EXP430G2 LaunchPad Development Kit

The MSP-EXP430G2 LaunchPad is a low-cost development board from Texas Instruments designed for learning, prototyping, and developing applications using MSP430 microcontrollers. It features an onboard USB-based emulator for programming and debugging, allowing direct connection to a PC. The board includes a socketed MSP430 MCU, enabling easy replacement and experimentation with different MSP430G2 series devices. With its simple layout, integrated peripherals, and compatibility with various development environments, it is widely used by students, hobbyists, and engineers for embedded system design.

Technical Specifications:

• Microcontroller: MSP430G2xx series (e.g., MSP430G2553)

• CPU Architecture: 16-bit RISC

• Clock Speed: Up to 16 MHz

• Flash Memory: Up to 16 KB

• RAM: Up to 512 Bytes

• Operating Voltage: ~3.3V

• ADC: 10-bit, up to 8 channels

• Communication Interfaces: UART, SPI, I2C (USI/USCI modules)

• USB Interface: Onboard USB emulator for programming/debugging

• GPIO Pins: Up to 16–24 I/O pins (device dependent)

• Timers: Up to 3 × 16-bit timers

• Board Interface: 10-pin and 20-pin headers

Features:

• Low-cost and beginner-friendly development platform

• Onboard USB debugging and programming interface

• Socketed MCU for easy replacement and experimentation

• Supports multiple MSP430G2 series microcontrollers

• Integrated peripherals like ADC, timers, and communication modules

• Compatible with Energia (Arduino-like) and TI Code Composer Studio

• Low power consumption suitable for battery-powered applications

• Expandable using BoosterPack modules

Applications:
