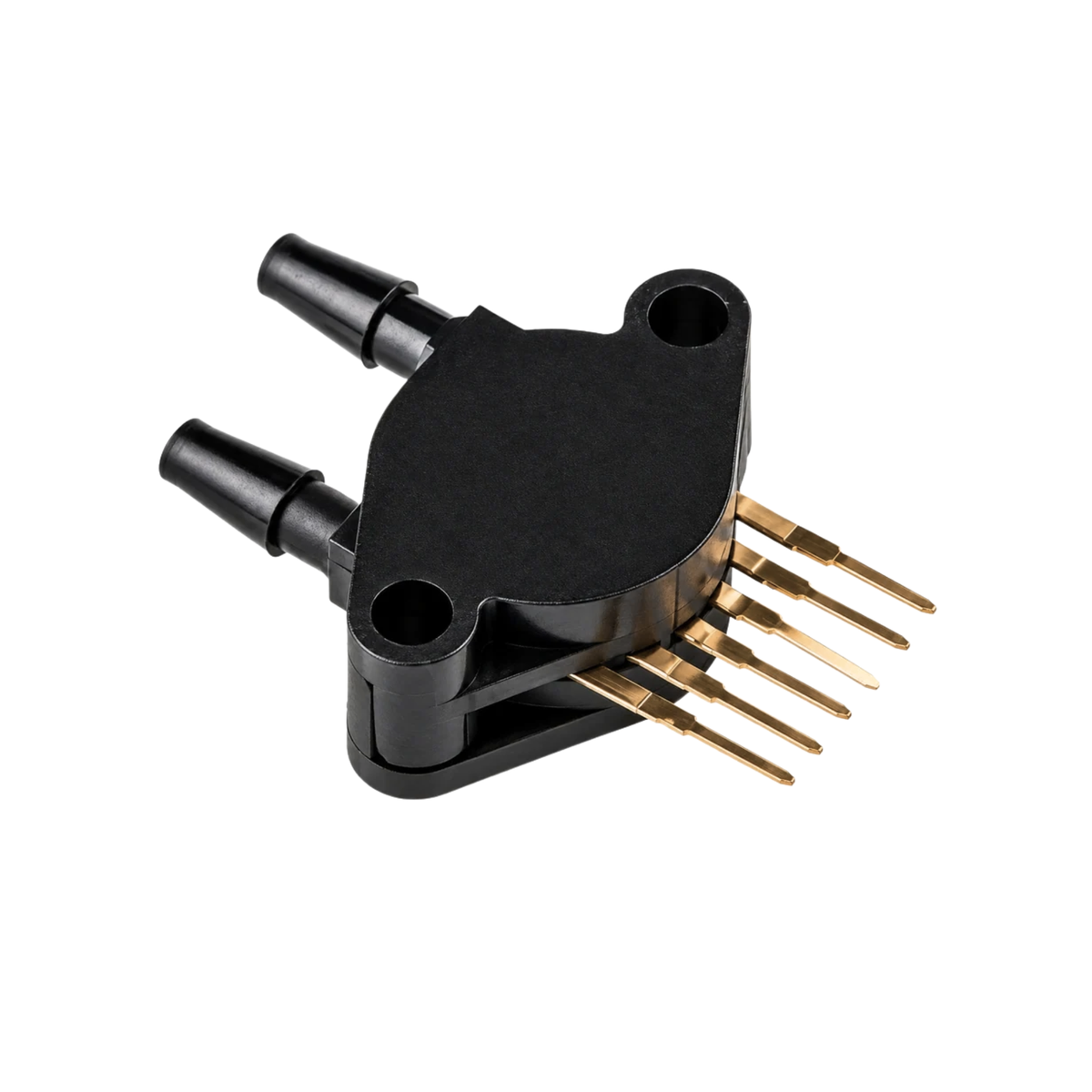

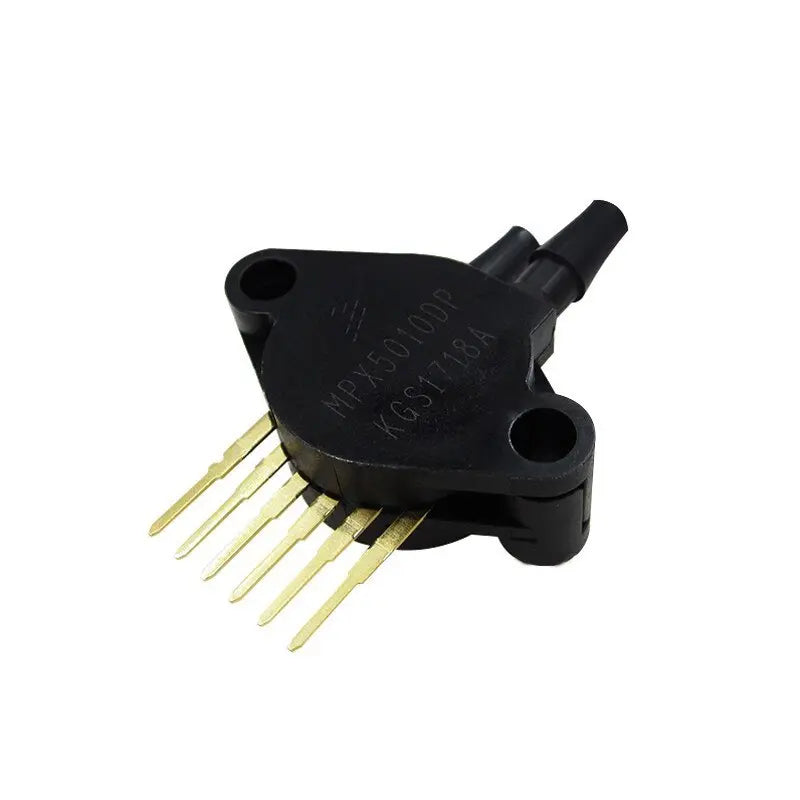

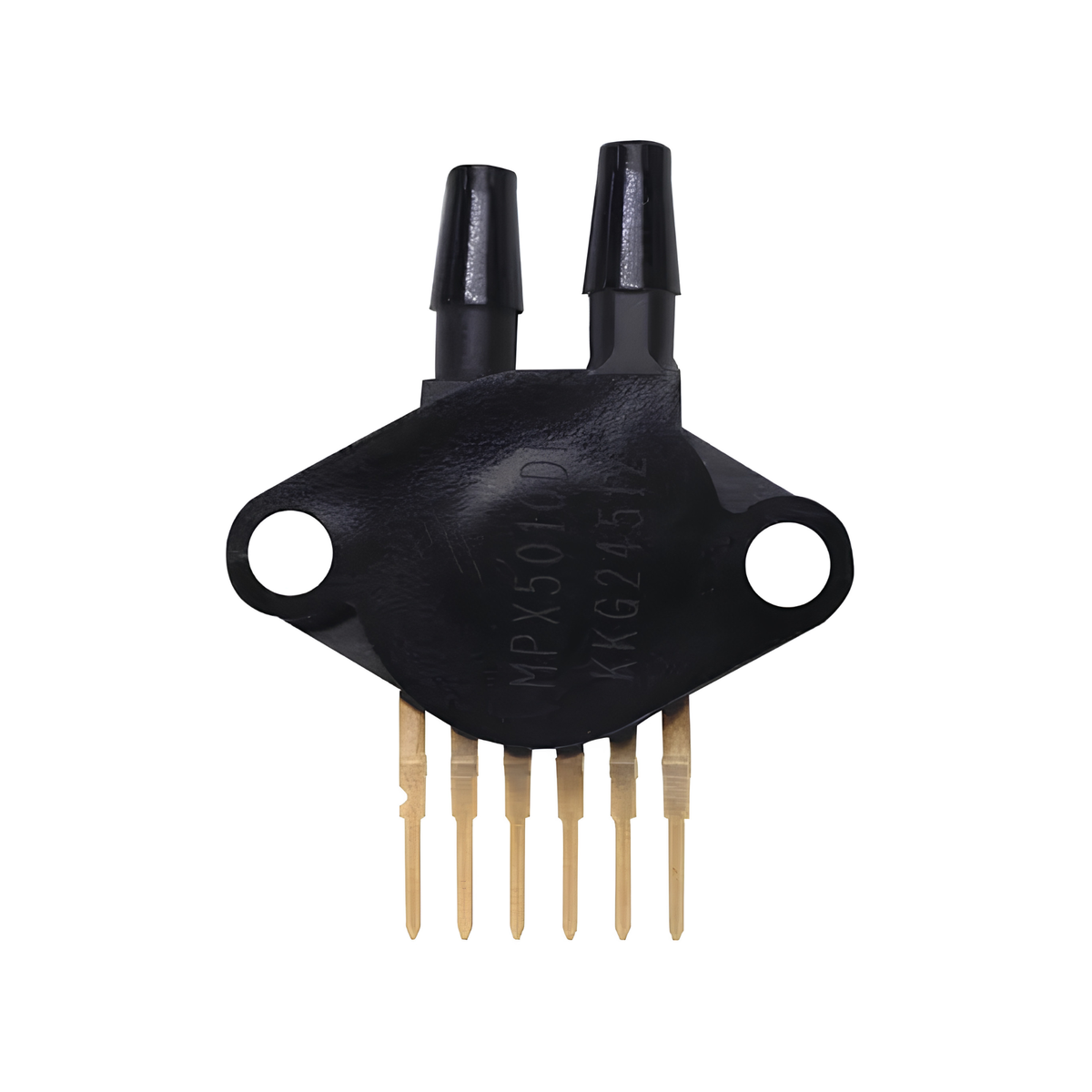

MPX5010DP 0-10kPa Differential Pressure Sensor Module

The MPX5010DP Pressure Sensor 0-10kPa is a silicon-based differential pressure sensor designed for accurate low-pressure measurement in electronic monitoring and control applications. It features on-chip signal conditioning, temperature compensation, and calibration to provide a reliable analog voltage output proportional to the applied pressure difference.

Operating within a pressure range of 0 to 10kPa, the sensor delivers a nominal analog output of 0.2V to 4.7V with a 5V supply. Its dual-port configuration enables differential pressure measurement, making it suitable for airflow monitoring, HVAC systems, pneumatic control, and industrial automation applications.

The MPX5010DP offers fast response, compact construction, and straightforward integration with microcontrollers and analog measurement circuits.

Technical Specifications:

• Model: MPX5010DP
• Sensor Type: Differential Pressure Sensor
• Pressure Range: 0 to 10 kPa
• Supply Voltage: 5V
• Output Type: Analog Voltage
• Pressure Ports: Dual Port
• Technology: Piezoresistive Pressure Sensing
• Signal Conditioning: Integrated
• Temperature Compensation: Yes
• Calibration: Factory Calibrated

Features:

• Measures differential pressure up to 10 kPa
• High-level analog output
• Integrated signal conditioning
• Temperature compensated operation
• Factory calibrated
• Dual pressure ports
• Easy microcontroller interfacing
• Compact PCB-mount package

Applications:

• Air pressure measurement
• Differential pressure monitoring
• Airflow measurement
• HVAC systems
• Filter monitoring
• Pneumatic systems
• Medical equipment prototypes
• Industrial pressure monitoring
• Microcontroller projects
• Laboratory instrumentation
