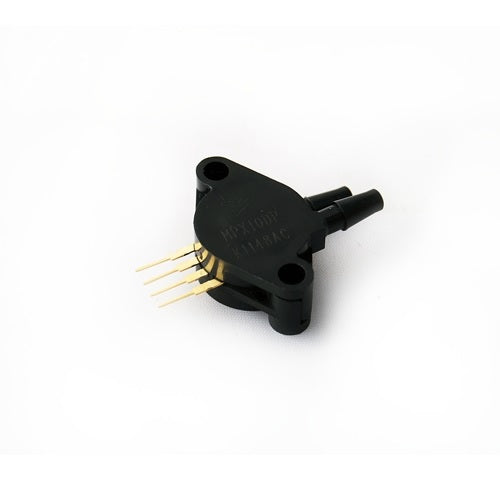

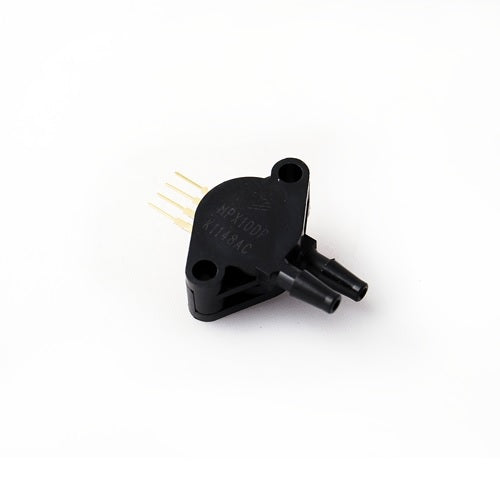

MPX10DP Differential Pressure Sensor

SKU: VS00071

Send Inquiry


MPX10DP Series Compression Resistant Transformer Series is a state of the art Monolithic silicone pressure sensor designed for a wide range of applications, but especially those who use a microcontroller or microprocessor with A / D input. The patented single-component transducer combines the advanced Micromachining techniques, thin metallization, and bipolar processing for Provides precise, high-level analog output signal to match Applied pressure.

Technical Specification:

  • Pressure Type: Differential
  • Sensitivity, V/P: 3.5mV/kPa
  • Operating Pressure : 0kPa ~ 10kPa
  • Supply Voltage: 3V - 6V DC
  • Sensor Case Style: SIP
  • of Pins: 4Pins
  • Operating Temperature: -40°C to 125°C


  • Low Cost
  • Patented Silicon Shear Stress Strain Gauge Design
  • Ratiometric to Supply Voltage
  • Differential and Gauge Options
  • Durable Epoxy Unibody Element or Thermoplastic (PPS) Surface Mount Package

Pin Description:


  • Sensing & Instrumentation
  •  Medical
  • Industrial
  • Robotics
  • Automation & Process Control
