Description

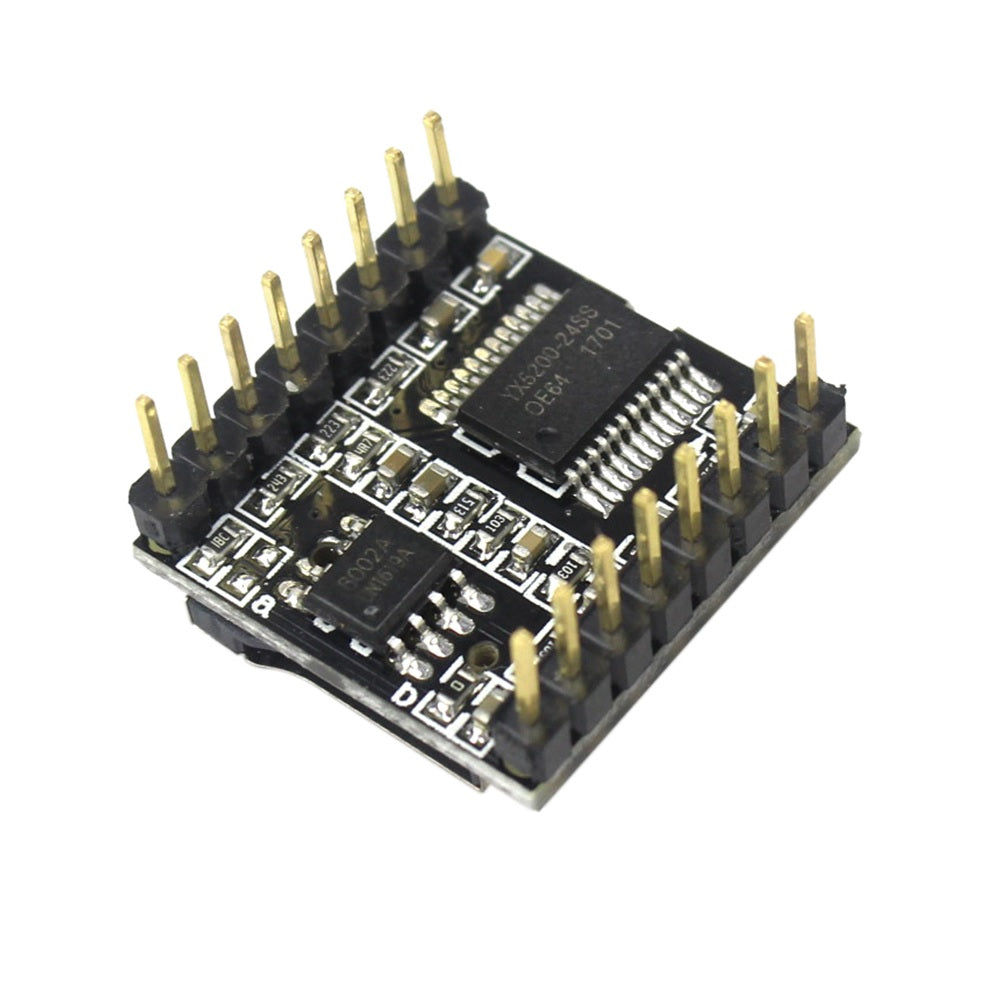

MP3-TF-16P MP3 Disk TF Card Module Serial Port is a compact and inexpensive MP3 module that can be connected directly to the speaker. Module with battery power supply, speaker, the keypad can be used alone, or through the serial port control, as the Arduino UNO or any microcontroller with a serial port module. The module itself perfectly integrated hardware decode MP3, WAV, WMA.
While the software supports TF card driver to support FAT16, FAT32 file system. It can be done by simple serial command plays the specified music, as well as how to play music and other functions, without tedious low-level, easy to use, stable and reliable.
Technical Specification:
- Input Supply voltage (V): 3.2V ~ 5 V
- DAC output: 24-bit
- SNR: 85 dB
- Supports sampling rates: 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48KHz
- Operating Temperature (°C): -40 ~ +70
- Humidity Range: 5% ~ 95%
- Size: 21mm*21mm*10mm (L*W*H)
Features:
- Provides an easy interface for configuring an XBee Module via a PC
- 4 status indicator LEDs for Power, RSSI, Associate and mode (sleep/ON)
- Converts XBee 2mm pin spacing to 0.100” pin spacing
- Provides easy pluggable wire or solder connections
- Includes mounting holes
- Pin-out compatible with our other XBee Adapter boards
- Partially assembled kit form for flexible configuration
Applications:
- Car navigation voice broadcast
- Road transport inspectors, toll voice prompts
- Fire alarm voice prompts
- Automatic broadcasting equipment, regular broadcast
