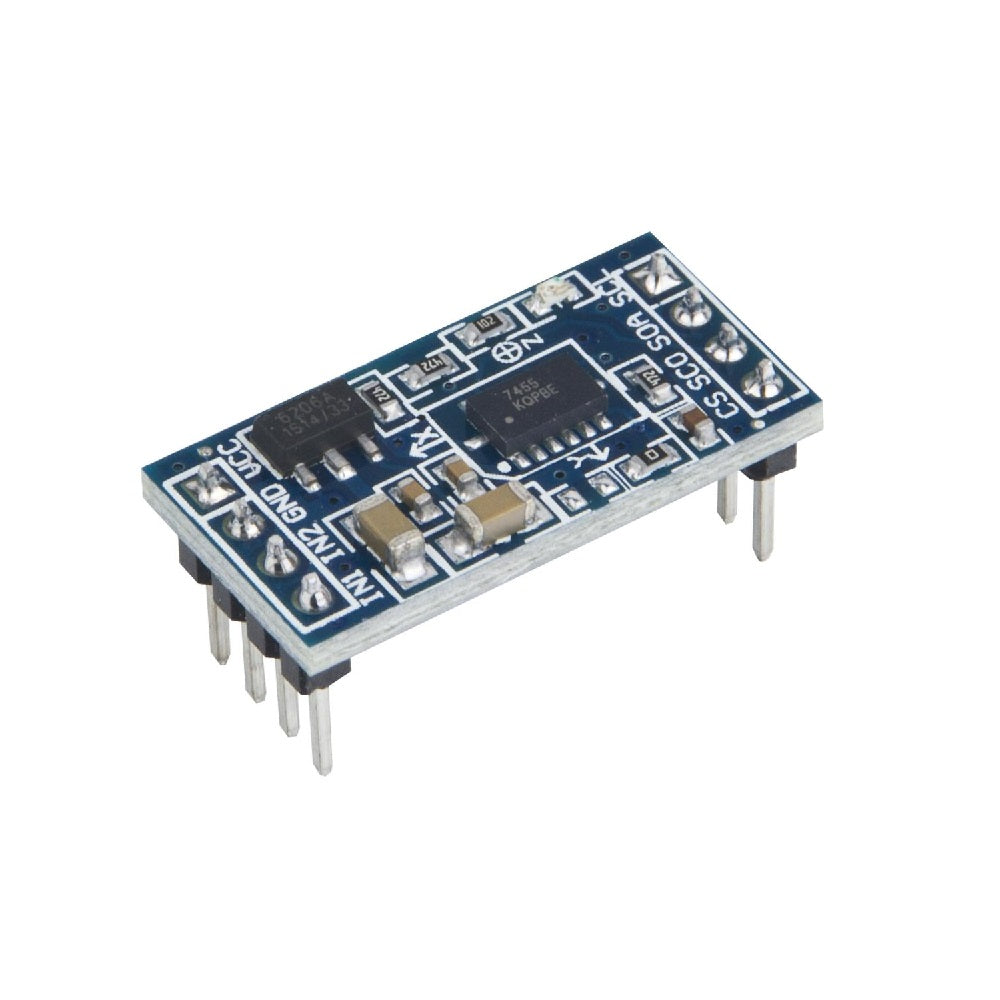

MMA7455 Triple-Axis Accelerometer Module

SKU: VM00026

Price:
Sale price Rs. 254.24
(excl.18% GST)
Rs. 300.00

Description

The MMA7455 accelerometer can measure acceleration in three axes. This sensor is commonly available as a breakout board that you can connect to your Arduino. It requires VCC, GND, SCA and SCL to be connected.

Technical Specification:

  • Low Current Consumption: 400 µA
  • Sleep Mode: 3 µA
  • Low Voltage Operation: 2.2 V – 3.6V
  • Selectable Sensitivity (+- 1.5g, +- 6g)
  • Size: 24.9mm*12.7mm (L*W)

Features:

  • Robust design, high shock survivability
  • Dormancy can make by single-chip IO control
  • Simple to use
  • Analog output for each axis
  • Fast Turn-On Time (0.5 ms Enable Response Time)

Applications:

  • Laptop PC: Freefall Detection, Anti-Theft
  • 3D Gaming: Tilt and Motion Sensing, Event Recorder
  • Robotics: Motion Sensing
  • Cell Phone: Image Stability, Text Scroll, Motion Dialing, E-Compass
  • Navigation and Dead Reckoning: E-Compass Tilt Compensation
  • Pedometer: Motion Sensing / PDA: Text Scroll
  • HDD MP3 Player: Freefall Detection
