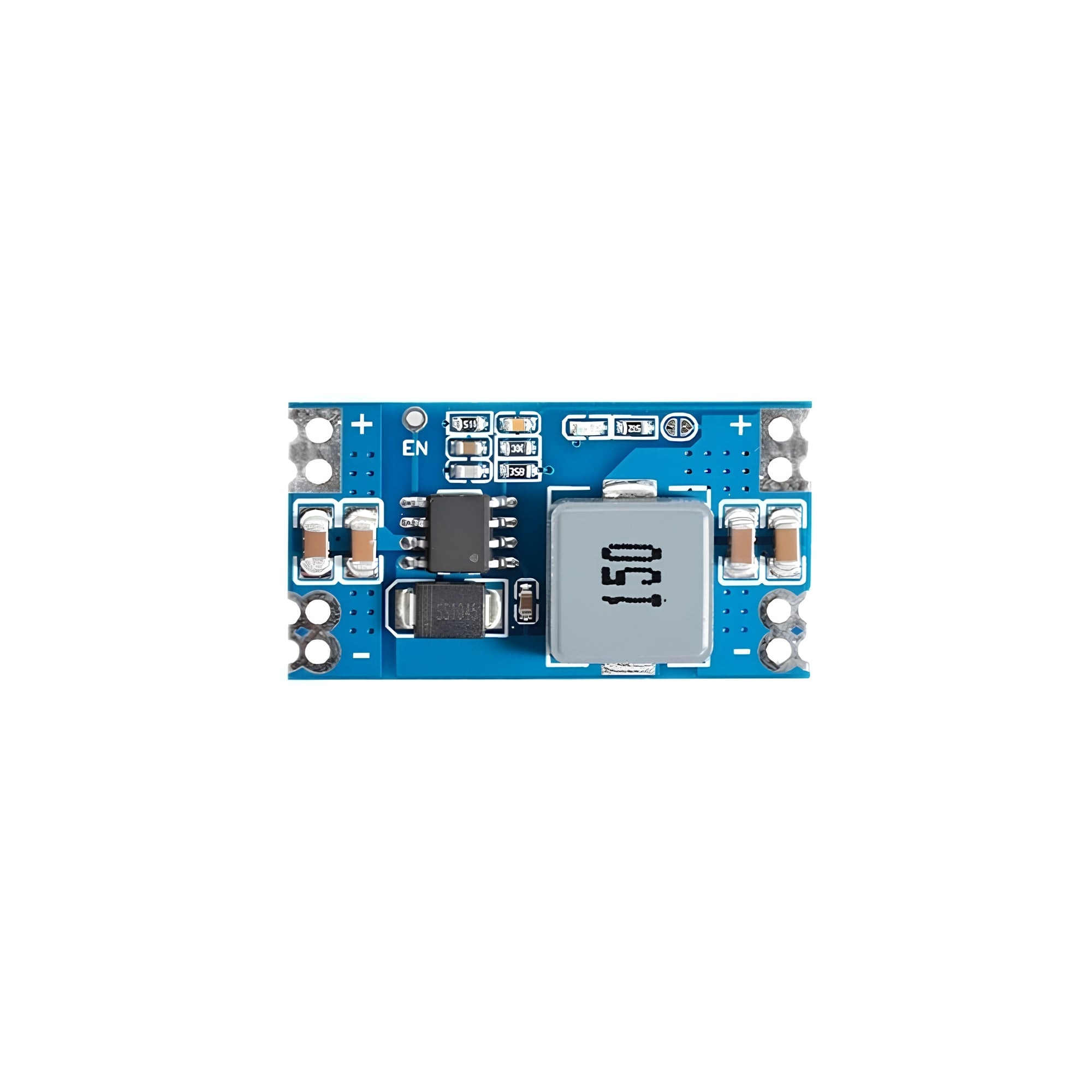

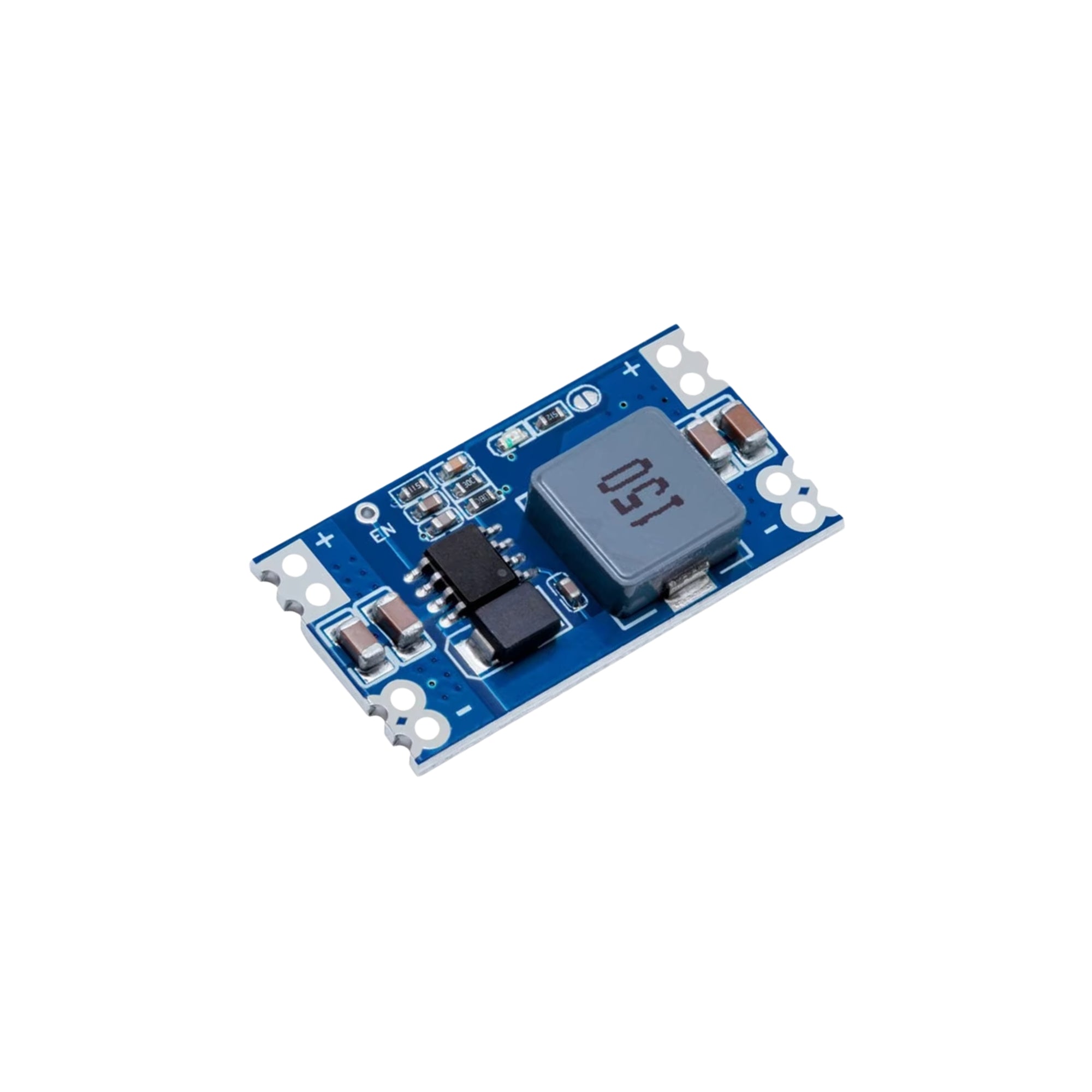

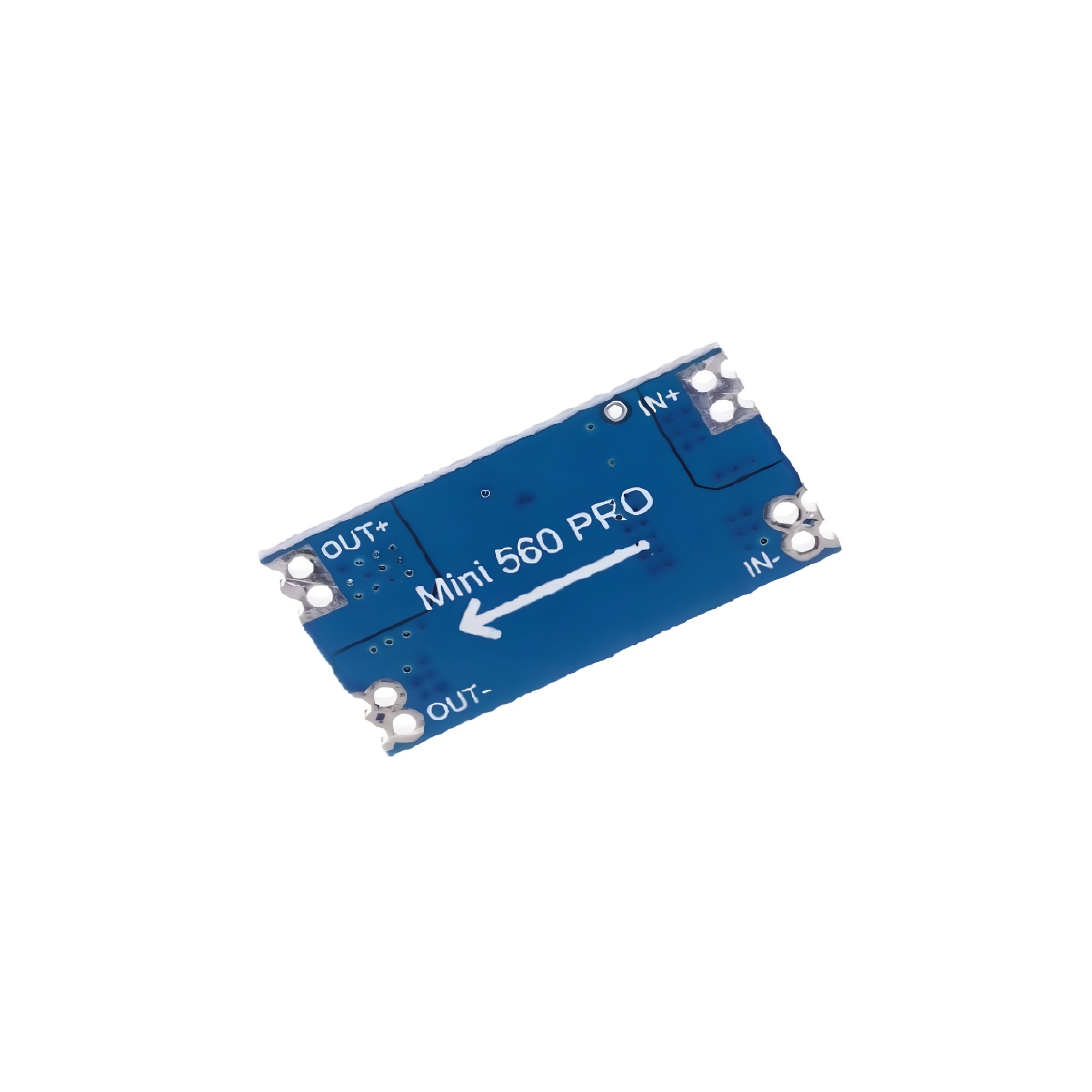

MINI560 DC-DC 5V 5A Buck Stabilized Module

The MINI560 DC-DC 5V 5A Buck Stabilized Module is a compact high-efficiency step-down voltage regulator designed to convert higher DC voltages into a stable 5V output. Built with the MINI560 switching regulator IC, this module delivers reliable power conversion with low heat generation, making it ideal for powering microcontrollers, embedded systems, IoT devices, and portable electronics.

Technical Specifications:

• Input Voltage Range: 4V to 18V DC
• Output Voltage: 5V DC Fixed
• Maximum Output Current: 5A
• Conversion Efficiency: Up to 96%
• Switching Frequency: 4MHz
• Converter Type: Buck (Step-Down) Regulator
• Output Ripple: Low ripple and noise
• Protection Features: Thermal and overcurrent protection
• PCB Design: Compact SMD layout
• Cooling Method: Passive cooling

Features:

• Stable fixed 5V output
• High-efficiency power conversion
• Compact and lightweight design
• Supports up to 5A output current
• Low heat dissipation
• Wide DC input voltage support
• Suitable for battery-powered devices
• Easy integration into DIY and embedded projects
