MINI560 DC-DC 12V 5A Buck Stabilized

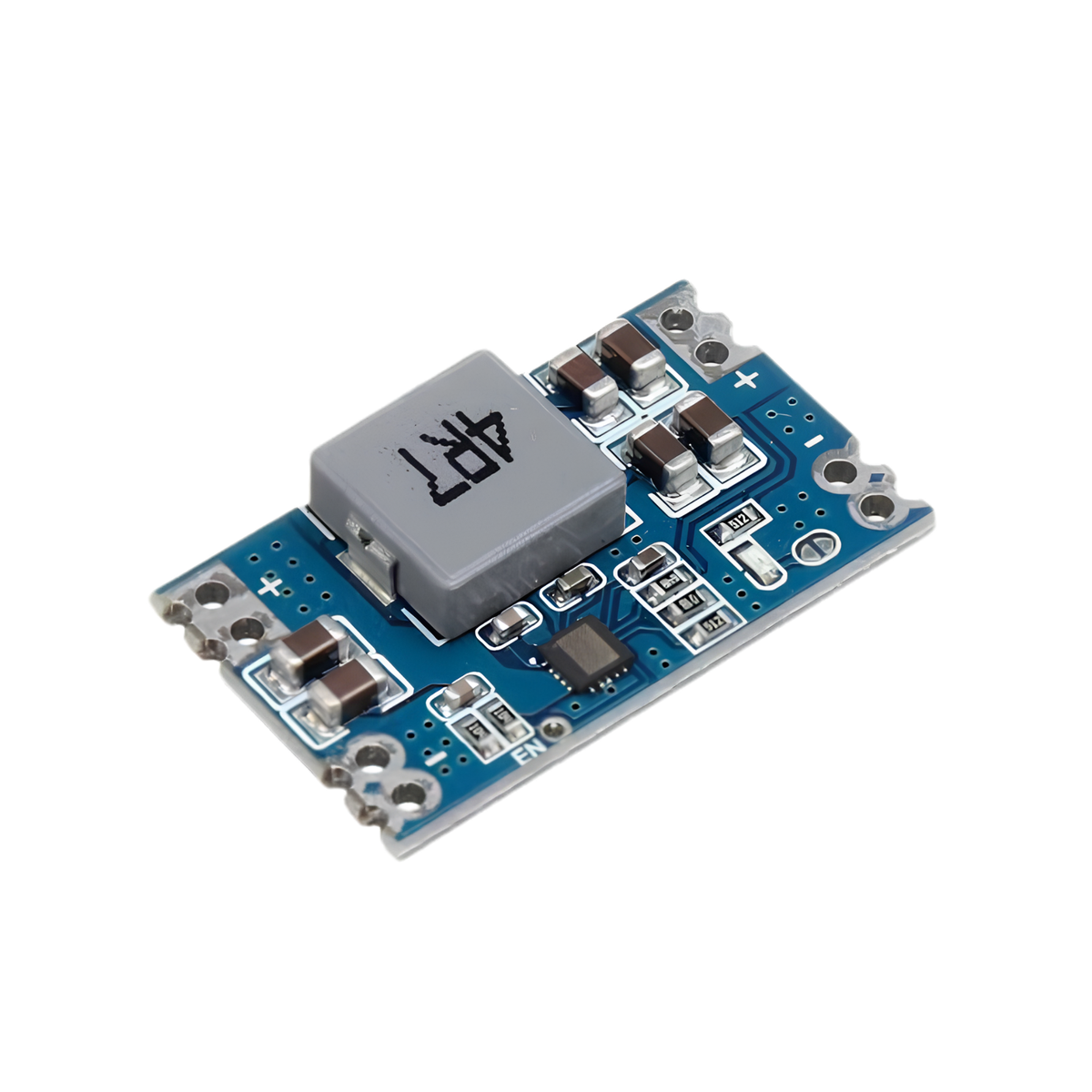

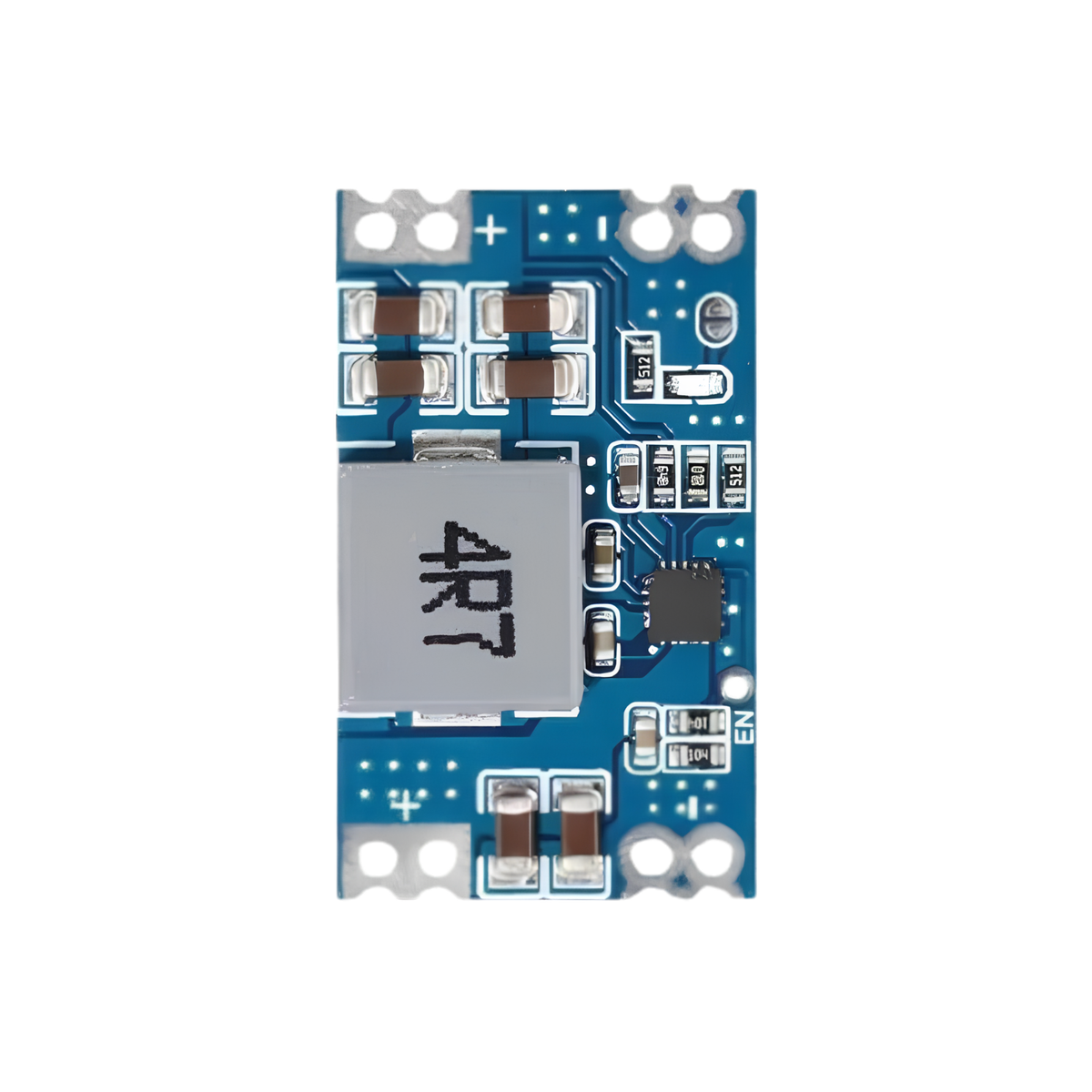

The MINI560 DC-DC 12V Buck Stabilized Module is a compact step-down power converter designed to provide a stable 12V DC output. It uses synchronous rectification for efficient DC voltage conversion. The module is suitable for applications where the input voltage is higher than 12V. Its small 29 × 18 × 5.4 mm size makes it useful in space-limited electronic projects. It is commonly used in automotive, communication, camera, RC and embedded power systems.

Technical Specifications:

• Input Voltage: 14V to 32V DC
• Output Voltage: 12V DC
• Output Current: Less than 4A for the 12V version; above about 3A continuous operation requires additional heatsinking.
• Switching Frequency: 500 kHz
• Efficiency: Up to approximately 95%

Features:

• Compact non-isolated DC-DC buck converter design
• High-efficiency synchronous rectification
• Stable fixed 12V output
• Wide operating temperature range of approximately -40°C to +85°C

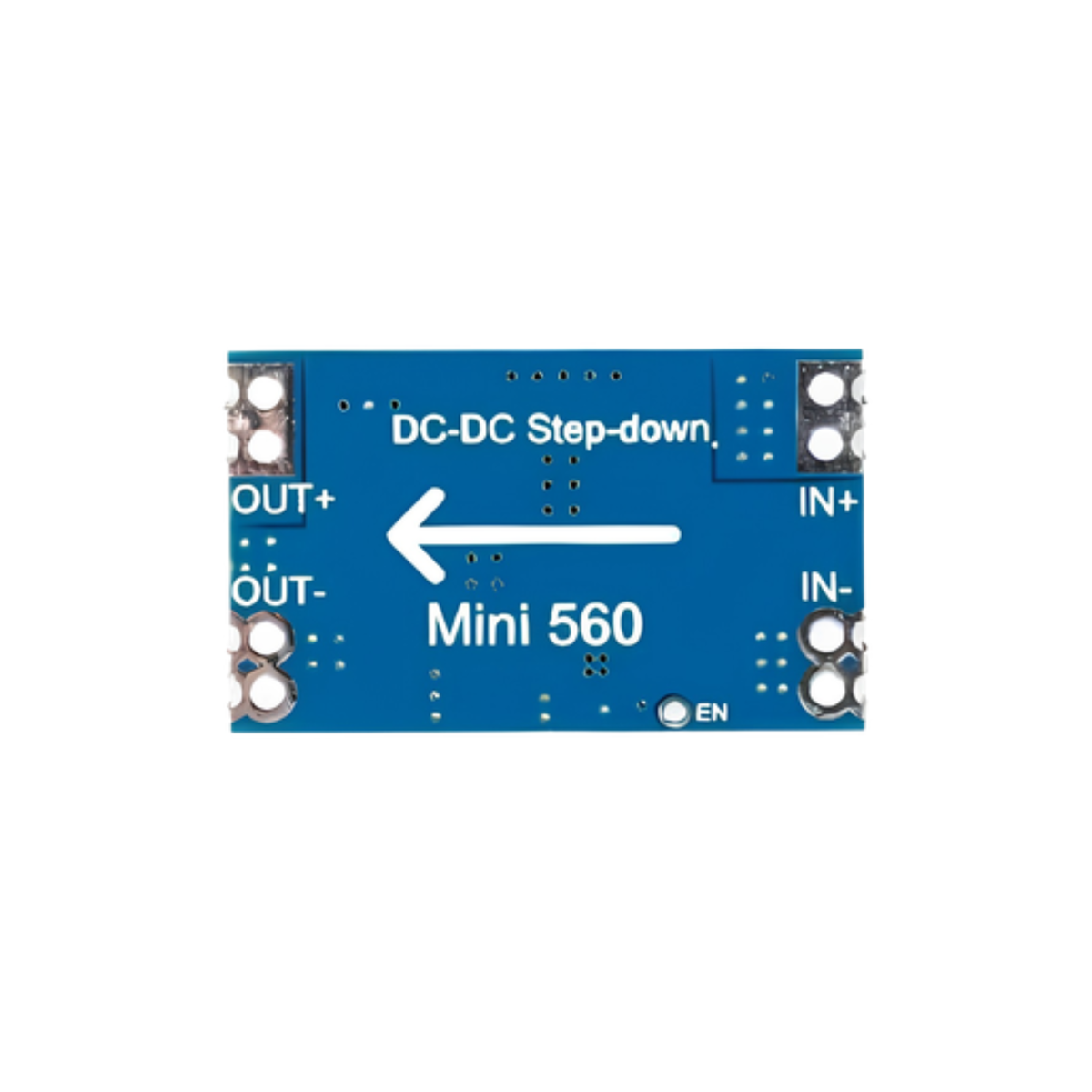

• Includes an EN enable connection and clearly marked input/output terminals

Applications:

• Automotive and vehicle electronics
• Camera and monitoring-system power supplies
• Communication and embedded electronic equipment
• RC vehicles, drones and model electronics
• DIY regulated power supplies and battery-powered projects
