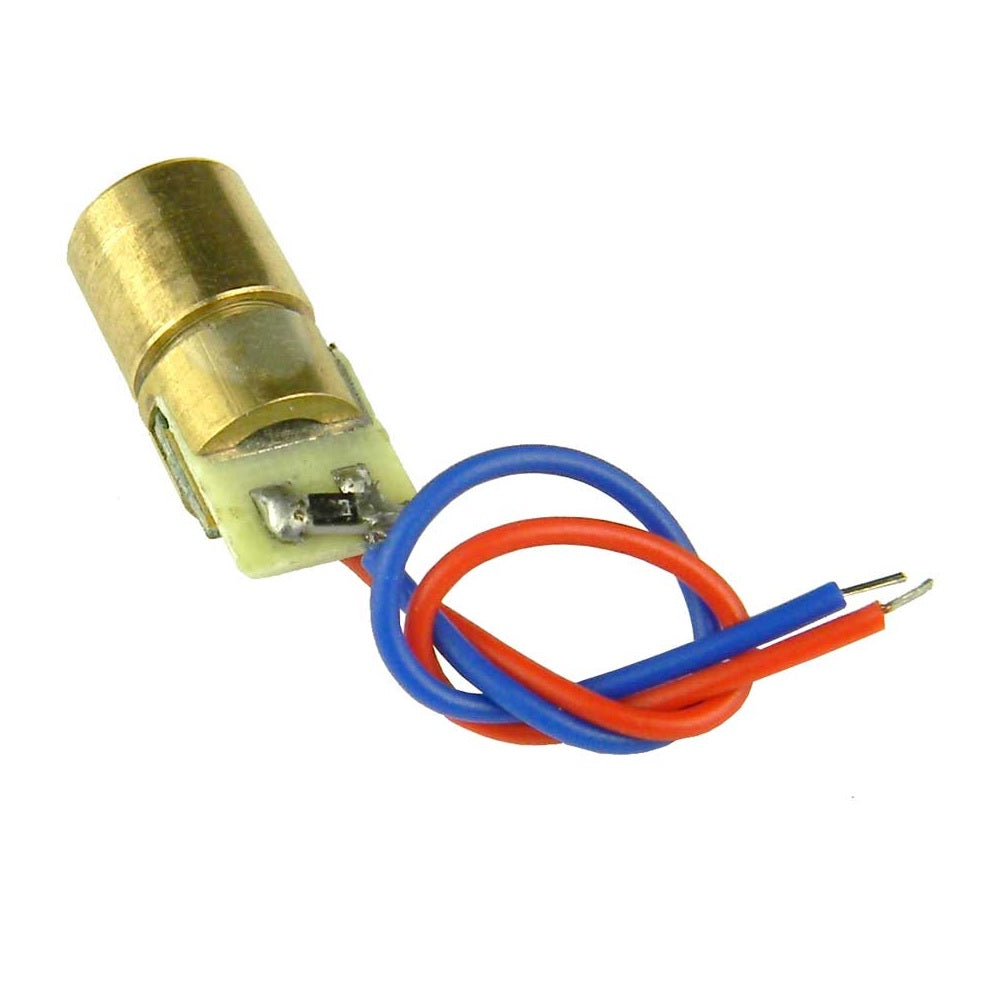

Mini Laser Dot Diode Module - 650nm 6mm 3VDC 5mW

SKU: VM00771

Send Inquiry


Red Laser diode, this is a very small copper head with standard beam.  It is suitable for 3V 5mW standard, with 6mm outside diameter, can be used to connect diode tubes for multiple uses.

Technical Specification:

  • Output Power: 5mW
  • Wavelength: 650nm
  • Working Voltage: 3v - 5V
  • Laser Shape & Colour: Red Dot
  • Working temperature: -10 ?~?40 ?
  • Housing material: Copper
  • Outer diameter: 6mmOperating Current: <40mA
  • Size: 6mm*18mm (diameter*length)


  • Small size
  • Cost-effective
  • Gives continuous output
  • Nanometer Wavelength


  • Embedded Electronics project
  • Laser harps
  • Electronic 'trip wires'
  • Laser-vision guidance
