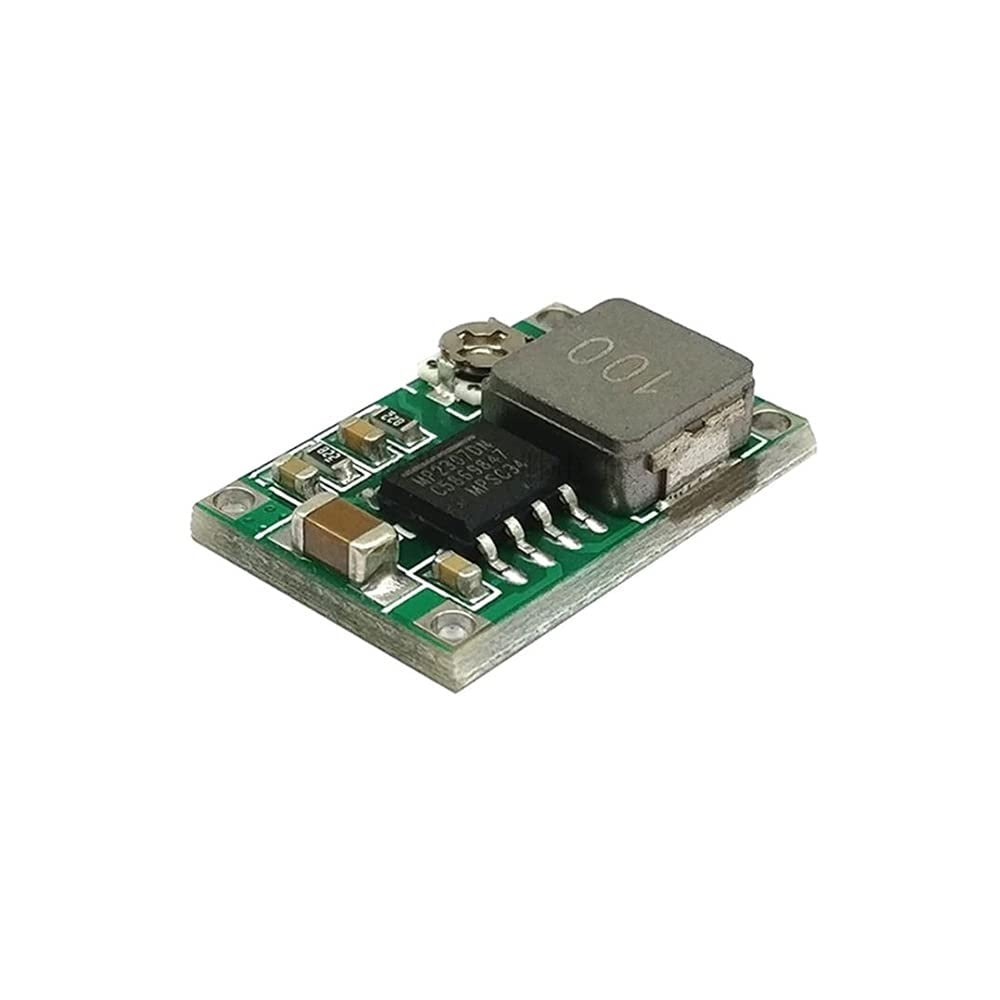

Mini 360 Step-Down Buck Converter Power Module
The Mini 360 takes a higher voltage (e.g., 12V) and converts it to a lower voltage (e.g., 5V) efficiently, without generating much heat, making it ideal for compact and low-power applications. A compact and efficient voltage regulator ideal for Arduino and other electronics projects.
Technical Specifications:
-
Input Voltage: 4.75V to 23V DC
-
Output Voltage: 1V to 17V (adjustable via potentiometer)
-
Output Current: Up to 1.8A max (1.2A recommended for continuous use)
-
Voltage Regulation: ±0.5%
-
Chip Used: MP2307DN (or similar step-down converter IC)
-
Module Type: Mini 360 Buck Converter
-
Switching Frequency: 340 kHz
- Output Ripple: ~30mV (low, depending on load and wiring)

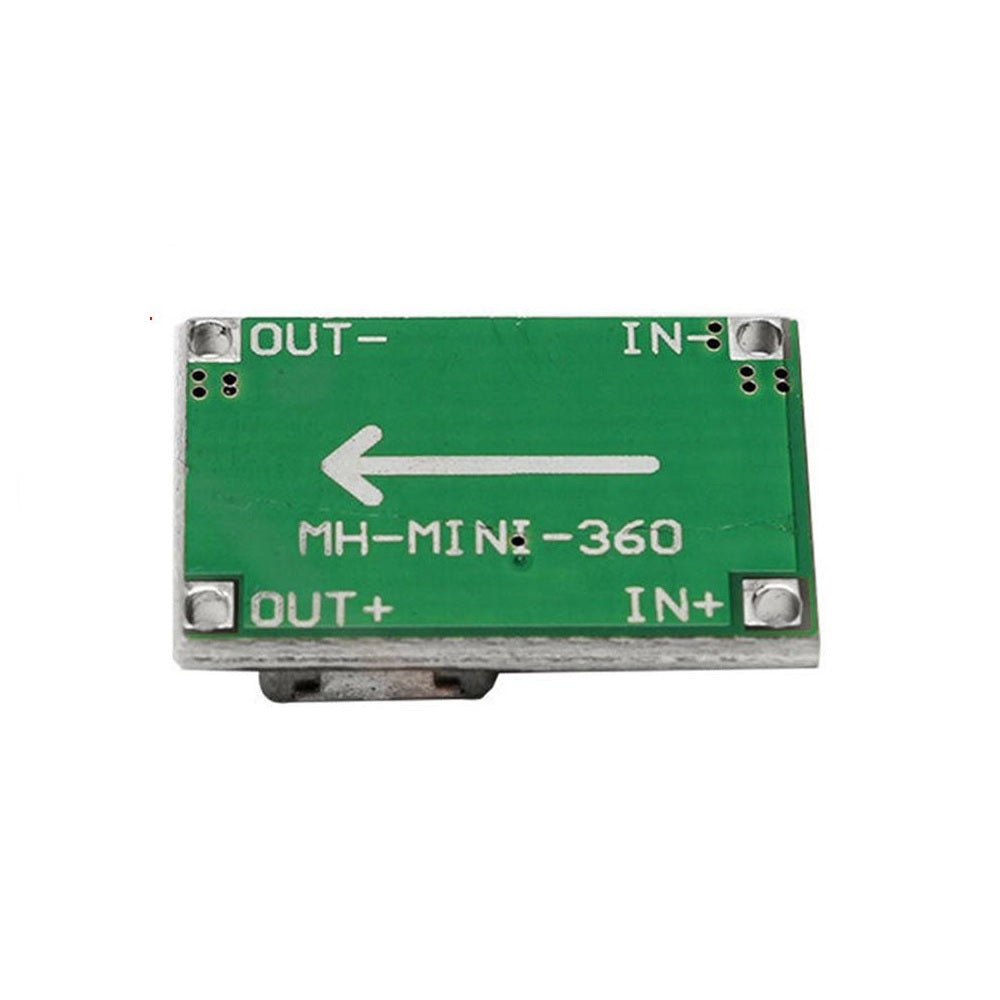

Pinouts:
|
Pin Label |
Function |
|
IN+ |
Input voltage positive |
|
IN- |
Input ground (GND) |
|
OUT+ |
Output voltage positive |
|
OUT- |
Output ground (GND) |
Connection with Battery and Adapter:
The Mini 360 Step-Down Buck Converter is a hardware-only power module — it does not require any code to operate.
