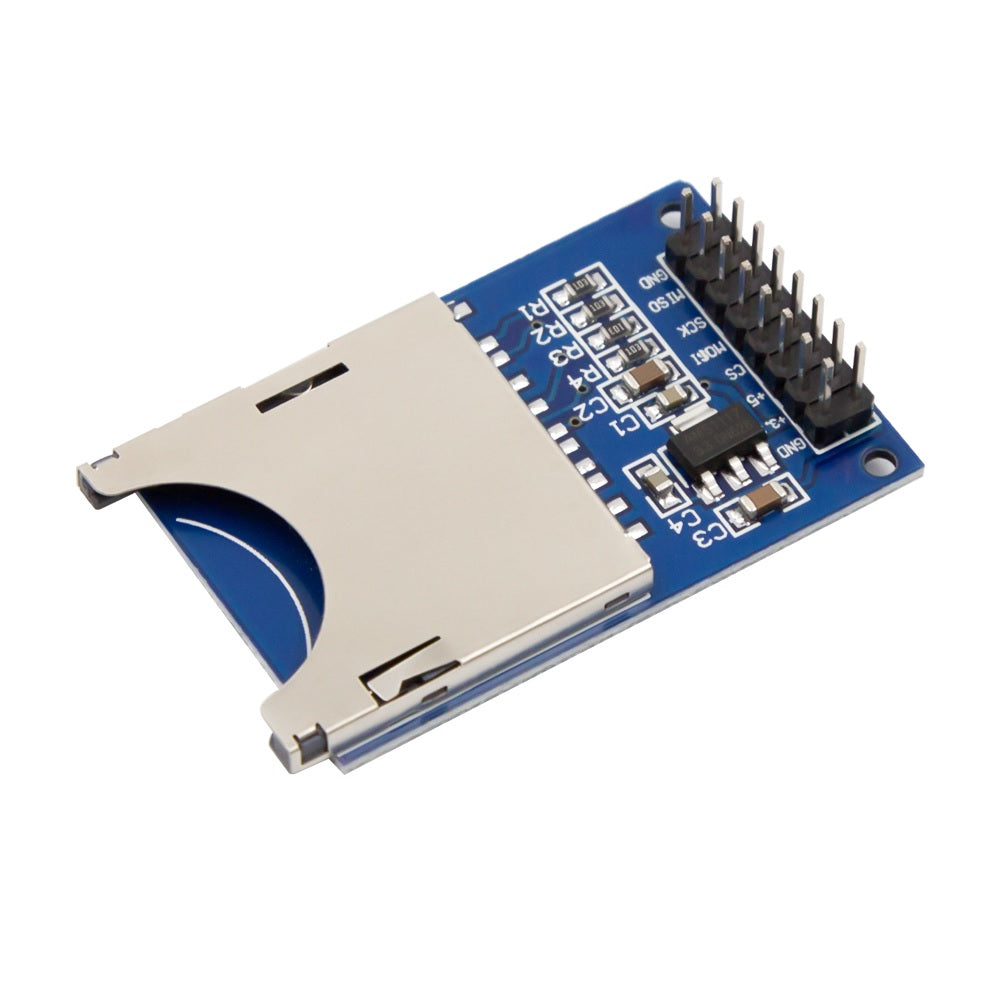

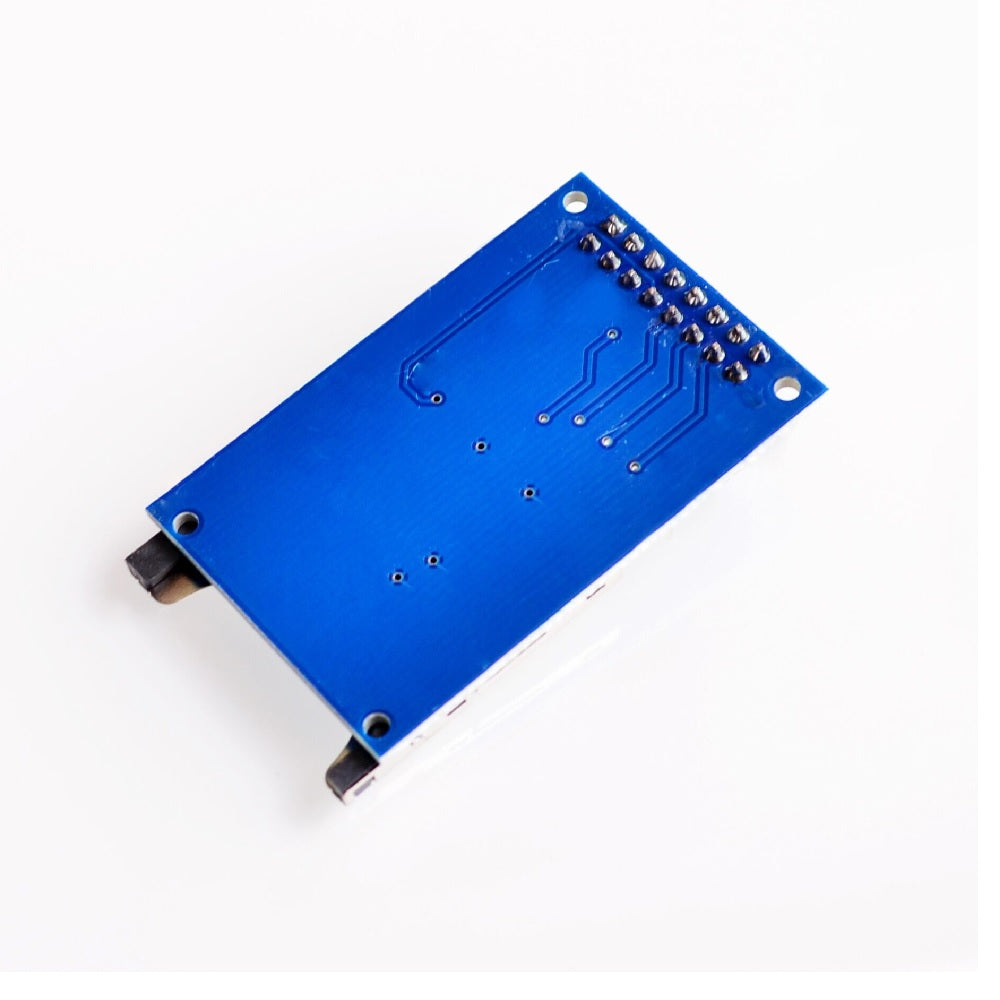

Micro SD Card Reader Module

SKU: VM169

Send Inquiry

Description

A simple module for transferring data to and from a standard SD cards. Micro SD reader module or Micro SD adaptor is designed for dual I/O voltages. The pinout of this module can be directly connected to Arduino or any other micro-controllers modules. It has SPI interface which allows it to work with any SD card and works with 5v or 3.3v power supply.

 Technical Specification:

  • Pinouts: GND, VCC, MISO, MOSI, SCK, CS; SPI standard interface
  • 4 M2 2.2mm screw installation holes
  • Interface electrical level: 3.3V / 5V
  • Current: 0.2~200mA
  • Working voltage: VCC 4.5~5.5V
  • Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board
  • Size: 45 x 28mm

Features:

  • Communication interface is a standard SPI interface
  • 4 M2 screw positioning holes for easy installation
  • The level conversion circuit board that can interface level is 5V or 3.3V
  • Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
  • Communication interface is a standard SPI interface.
  • Communication interface is a standard SPI interface
  • 4 M2 screw positioning holes for easy installation
  • The level conversion circuit board that can interface level is 5V or 3.3V
  • Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
  • Communication interface is a standard SPI interface.
  • Onboard 3.3V voltage regulator circuit
  • Supports Micro SD up to 2GB
  • Micro SDHC up to 32GB

Applications:

  • Data logger
  • Audio, video systems
  • Graphics storage
