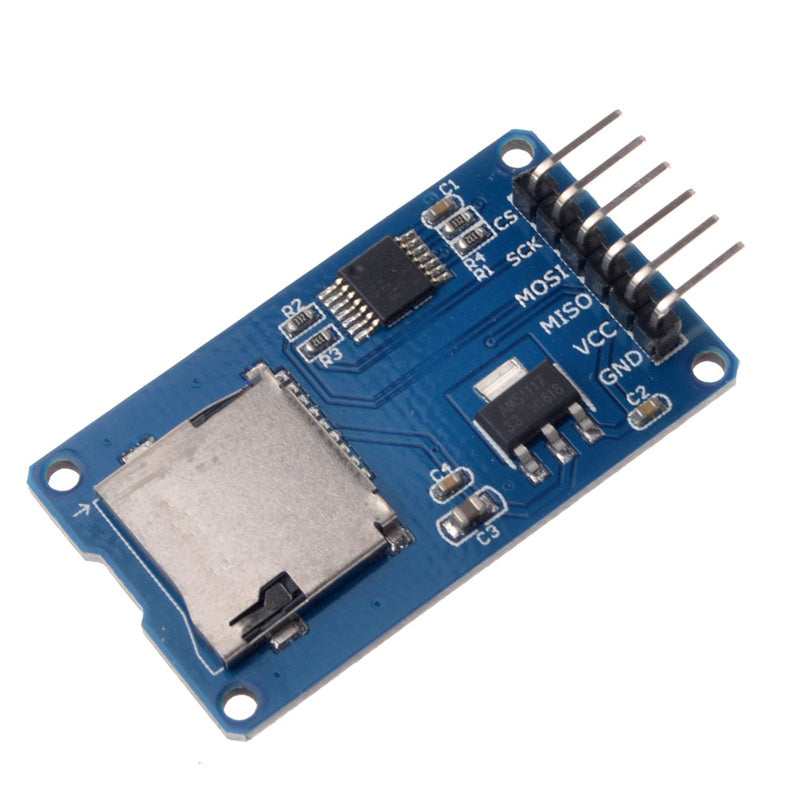

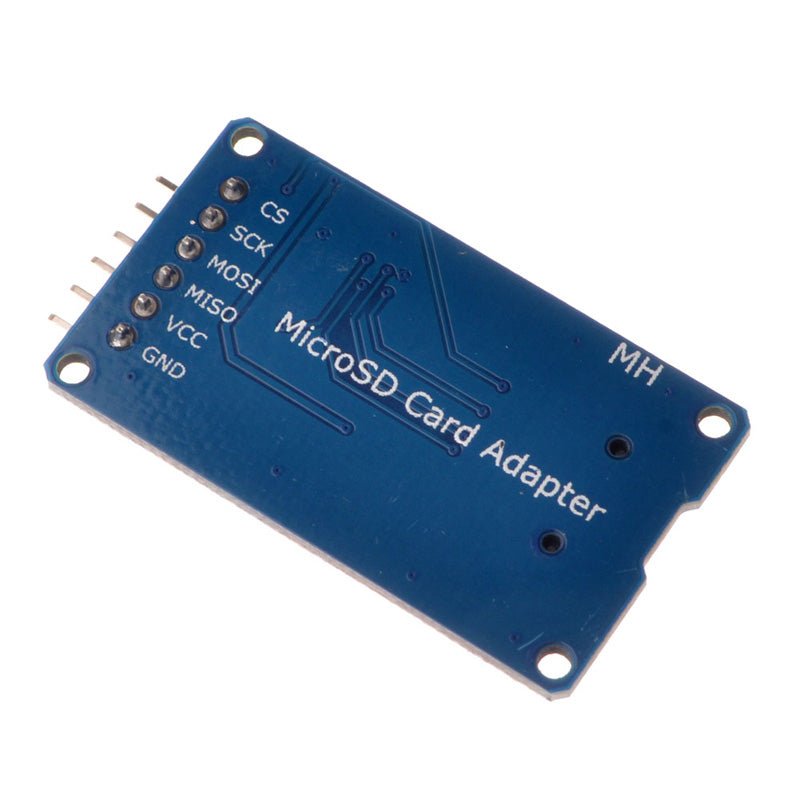

Micro SD Card Reader Module

SKU: VM00394

Send Inquiry


A simple module for transferring data to and from a standard SD cards. Micro SD reader module or Micro SD adaptor is designed for dual I/O voltages. The pinout of this module can be directly connected to Arduino or any other micro-controllers modules. It has SPI interface which allows it to work with any SD card and works with 5v or 3.3v power supply.

Technical Specification:

  • Input Supply Voltage: 5V ~ 5.5V
  • Control Interface: GND, VCC, MISO, MOSI, SCK, CS
  • Voltage Regulator: 3V
  • Mounting Hole size: 4M2
  • PCB Size: 40mm*24mm (L*W)


  • Communication interface is a standard SPI interface
  • 4 M2 screw positioning holes for easy installation


  • Data logger
  • Audio/Video applications
  • Graphics storage
