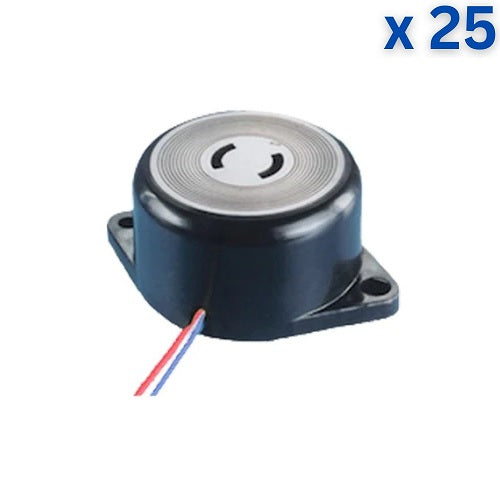

MB27M - Maruti 27mm Musical Buzzer

The MB27M is a 27mm musical buzzer designed to produce melodic sounds for various electronic applications. This compact buzzer is ideal for alerts, notifications, and decorative sound effects, providing an engaging audio experience in a small form factor.

Technical Specifications

• Minimum Sound Level: 85db

• Oscillation Frequency: not applicable

• Current Consumption: Maximum 15mA

• Operating Voltage: 5 to 15 VDC

• Weight (gm): 12

• Tone: Musical

• Mounting: Flange Type

• Wire/Lead Length: 120mm 2 wire

• Height (mm): 16.5

• Diameter (mm): 32

• Pitch (mm): 38

• Operating Temp Range: 20 to 50°C

• Storage Temp Range: 30 to 60°C


Features

• Musical Output: Produces a variety of melodies for engaging sound alerts
• Compact Design: Space-saving size suitable for tight PCB layouts
• Wide Voltage Range: Operates efficiently within a voltage range of 3V to 12V DC
• Durable Construction: High-quality plastic housing ensures longevity and reliability
• Easy Installation: Designed for straightforward PCB mounting

Applications

• Ideal for toys, alarms, and notification systems
• Suitable for consumer electronics and home appliances
• Useful in decorative applications requiring sound effects

Package Includes

• 1 x MB27M - Maruti 27mm Musical Buzzer
