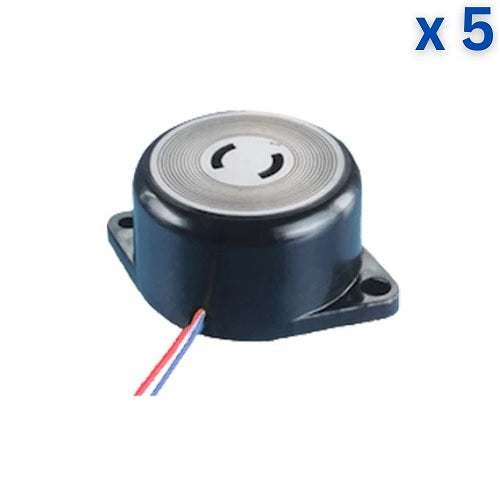

MB27L2 - 27mm Loud Intermittent Buzzer

The MB27L2 is a 27mm loud intermittent buzzer designed for effective sound signaling in various electronic applications. This buzzer provides clear and attention-grabbing alerts, making it ideal for alarms, notifications, and other signaling purposes.

Technical Specifications

• Minimum Sound Level: 85db

• Oscillation Frequency: 4KHz ± 500Hz

• Current Consumption: Maximum 20mA

• Operating Voltage: 1.5 to 15 VDC

• Weight (gm): 10.5

• Tone: Interrupted 1 to 4 sec

• Mounting: Flange Type

• Wire/Lead Length: 120mm 2 wire

• Height (mm): 16.5

• Diameter (mm): 32

• Pitch (mm): 38

• Operating Temp Range: 20 to 50°C

• Storage Temp Range: 30 to 60°C
•


Features

• Intermittent Sound Output: Produces a loud and attention-grabbing sound in an intermittent pattern
• High Sound Level: Delivers clear alerts suitable for various environments
• Wide Voltage Range: Operates efficiently within a voltage range of 5V to 12V DC
• Durable Construction: Robust plastic housing ensures longevity and reliability
• Easy Installation: Designed for straightforward PCB mounting

Applications

• Ideal for alarm systems, timers, and notification devices
• Suitable for consumer electronics, home appliances, and automotive applications
• Useful in industrial equipment requiring audible alerts

Package Includes

• 1 x MB27L2 - 27mm Loud Intermittent Buzzer
