Description

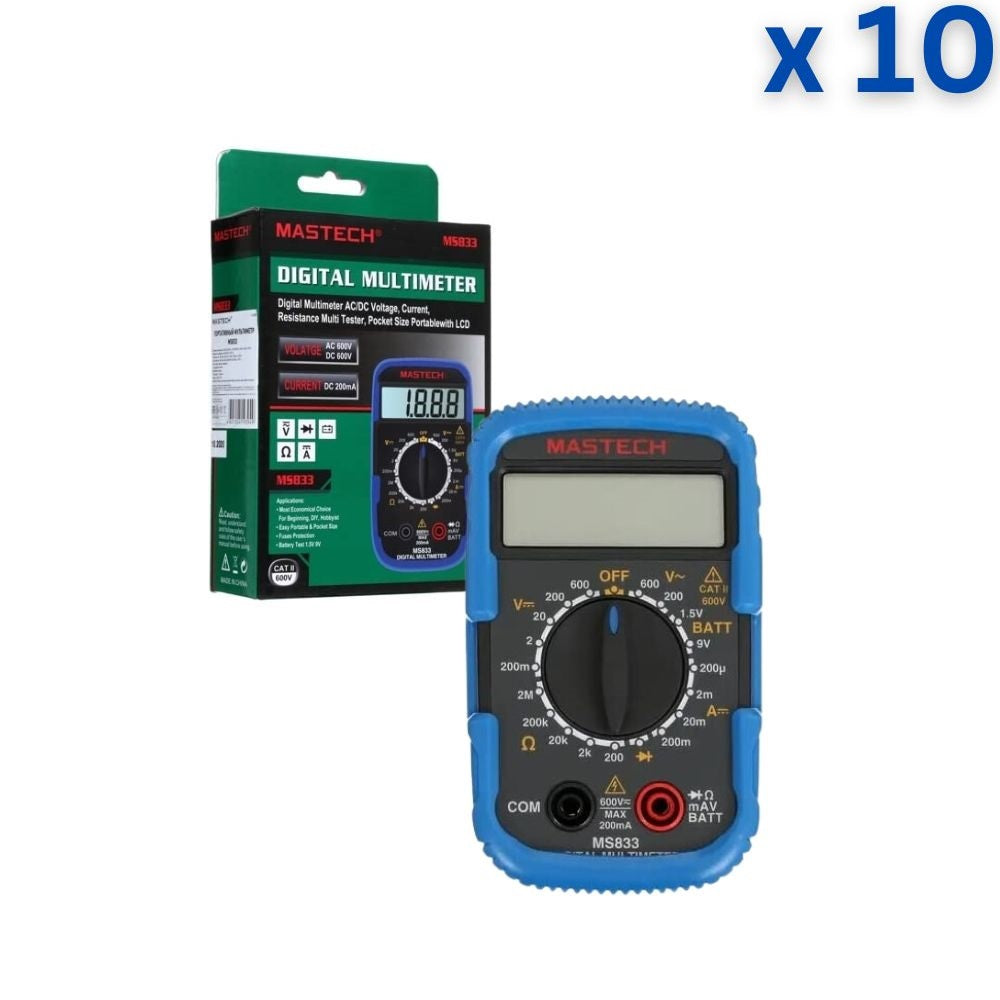

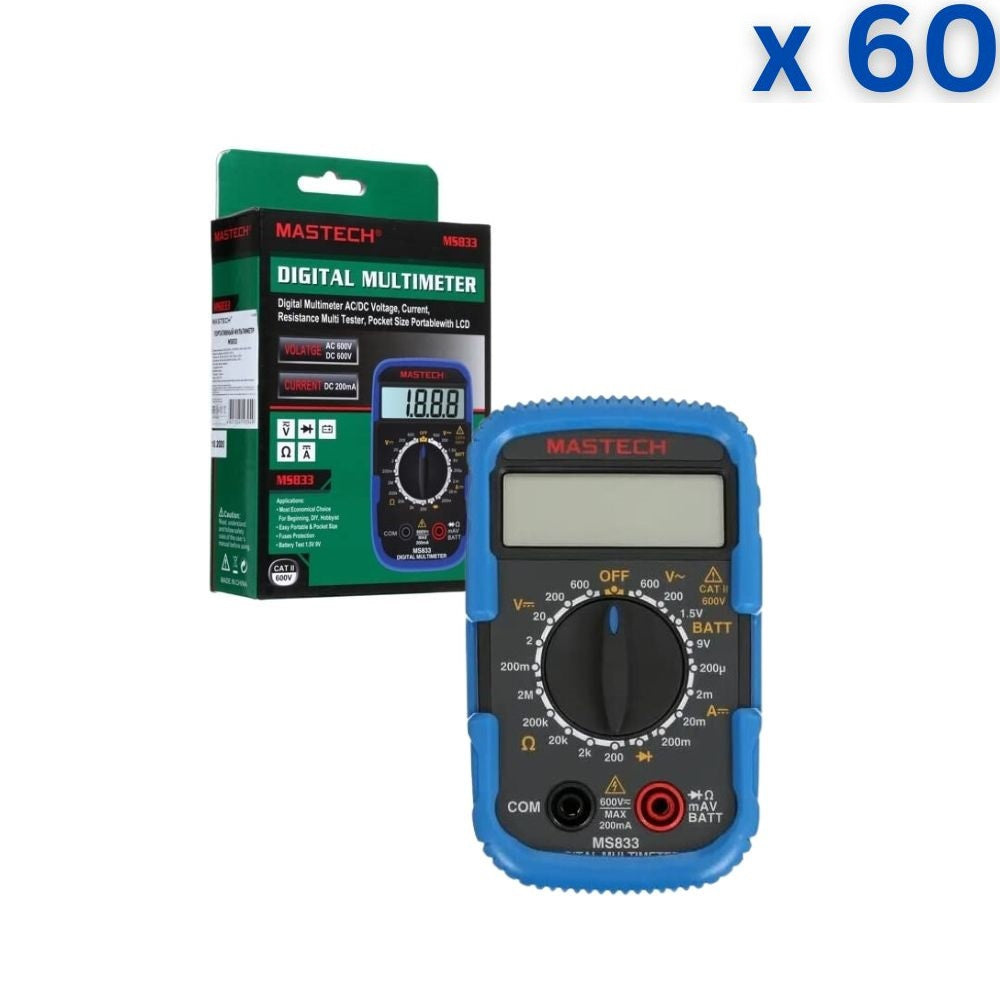

The MS833 Digital Multimeters are designed for contactless measurement of AC voltage, DC voltage, resistance, battery, DC current and test diodes.
Technical Specification:
- Brand : Mastech
- Model : MS833
- Display Type : Digital
- Display Count : 1999, 3 1/2 Digits
- Selection of Measuring Ranges : Manual
- Overload Display : OL
- DC Voltage Measuring Range : 0.2V ~ 600VDC
- Indication error : ± 0.5%
- Maximum AC Voltage Measuring Range : 200V ~ 600VAC
- Indication error : ± 0.5%
- Resistance Measuring Range : 200? ~ 2 M?
- Indication error : ± 1.5%
- Safety Standards : CATII 600V
- Operating Temperature Range : 0 ~ +40°C
- Memory mode (Hold) : No
- Display backlight : No
- Automatic shutdown : No
- Sound signals : No
- Size: 125x65x32 mm
- Weight: 220 gm
Features:
- Compact and lightweight
- 2 meters drop test
- Precision protection
- Comfortable protective cover
- With test lead hanging groove
- With full overload protection
- With low battery indication
Pin Description:
Applications:
- Can be used to diagnose, assemble, and repair circuitry and wiring
- Automotive
- Electrical work
- DIY Projects
- Laboratories
Package Includes:
- Mastech MS833 Digital Multimeter
- User’s Manual
- Test Leads ( one pair)
