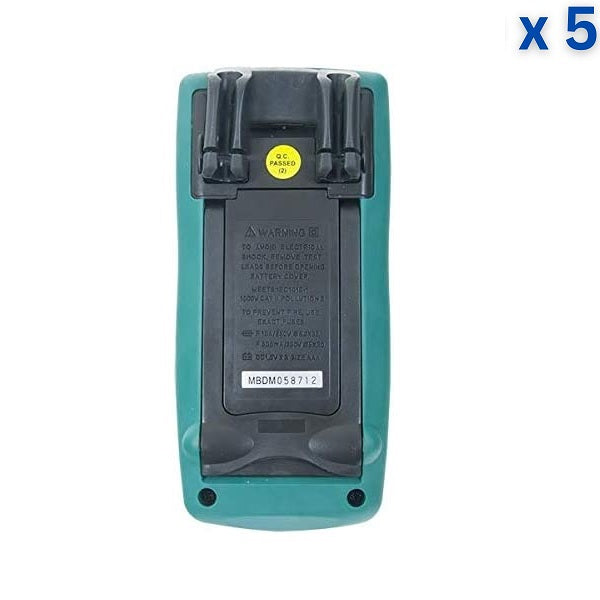

Description
MS8217 digital multimeter is perfect for reliable & stable electrical testing.
Technical Specification:
- Brand : Mastech
- Model No : MS-8217
- Type of Product : Digital Multimeter
- Counts : 4000
- Voltage Range (AC) : 400mV to 1000V
- Voltage Accuracy (AC) : ±(1.0%+3)
- Voltage Range (DC) : 400mV-1000V
- Voltage Accuracy (DC) : ±(0.5% +3)
- Current Range (AC) : 400?A-10A
- Current Accuracy (AC) : ±(1.0% +3)
- Current Accuracy (DC) : ±(1.5% +3)
- DC Current Range (Amps) : 400?A-10A
- Resistance Range (Ohm) : 400?-40M?
- Resistance Accuracy : ±(1.5%+3)
- Capacitance Range (F) : 50nF-100?F
- Capacitance Accuracy : ±(3.0% +5)
- Frequency Range (Hz) : 50Hz-100kHz
- Frequency Accuracy : ±(0.1% +3)
- Temperature Accuracy : ±(2% +2)
- Continuity Buzzer : <50 ohm
- Input Power : 3 x AAA 1.5V batteries
- Standard Accessories : CE CAT.II 1000V
- Temperature Range (?) : -55 - 1000°C
- Dimensions : 5x8.7x5.2 cm
- Weight : 349 g
Features:
- Display 4000 counts
- Auto and Manual Ranging
- Auto Power Off
- Relative Measurement
- Data Hold
- Display Backlight
- Low Battery Display
- With overload protection
- Easy to change fuse
Pin Description:
Applications:
- Industrial Area
- Electrical Area
- Home Workshop
- DIY Projects
Package Includes:
- Autorange Digital Multimeter (MS8217)
- Test leads
- K-Type temperature probe
- Battery
- User’s Manual
