Description
The MS2101 Digital AC/DC Clamp Meters are designed for measuring AC/DC current and voltage, resistance, capacitance, frequency, temperature and duty cycle, tests continuity and diodes.
Technical Specification:
- Model No : MS2101
- Type of Product : Digital AC Clamp Meter
- Display : 3½ Digits LCD Display
- Display Counts : 3999
- Jaw Opening Size : 42 mm
- Voltage Range (DC) : 4 - 1000 V
- Voltage Accuracy (DC) : ±(0.7 % + 1 Digits)
- Current Range (AC) : 400-1000 A
- Current Accuracy (AC) : ±(3.0 % + 3 Digits)
- Voltage Range (AC) : 4V-700 V
- Voltage Accuracy (AC) : ±(0.8 % + 5 Digits)
- Resistance Accuracy : ±(1.2 % + 1 Digits)
- Power : 9 V 6F22 Battery
- Operating Environment : 5° to 35°C
- Storage Environment : -10° to 50°C
- Weight : 480 g
- Dimensions : 250x99x43 mm
Features:
- Data hold and display back light
- Over range protection for all ranges
- Maximum & minimum value measuring function
- Auto and Manual ranging
- Auto Power Off
- Continuity Buzzer <50±20?
Pin Description:
Applications:
- Electrical Maintenance
- Automotive
Package Includes:
- Test Leads
- Battery
- Operating Manual

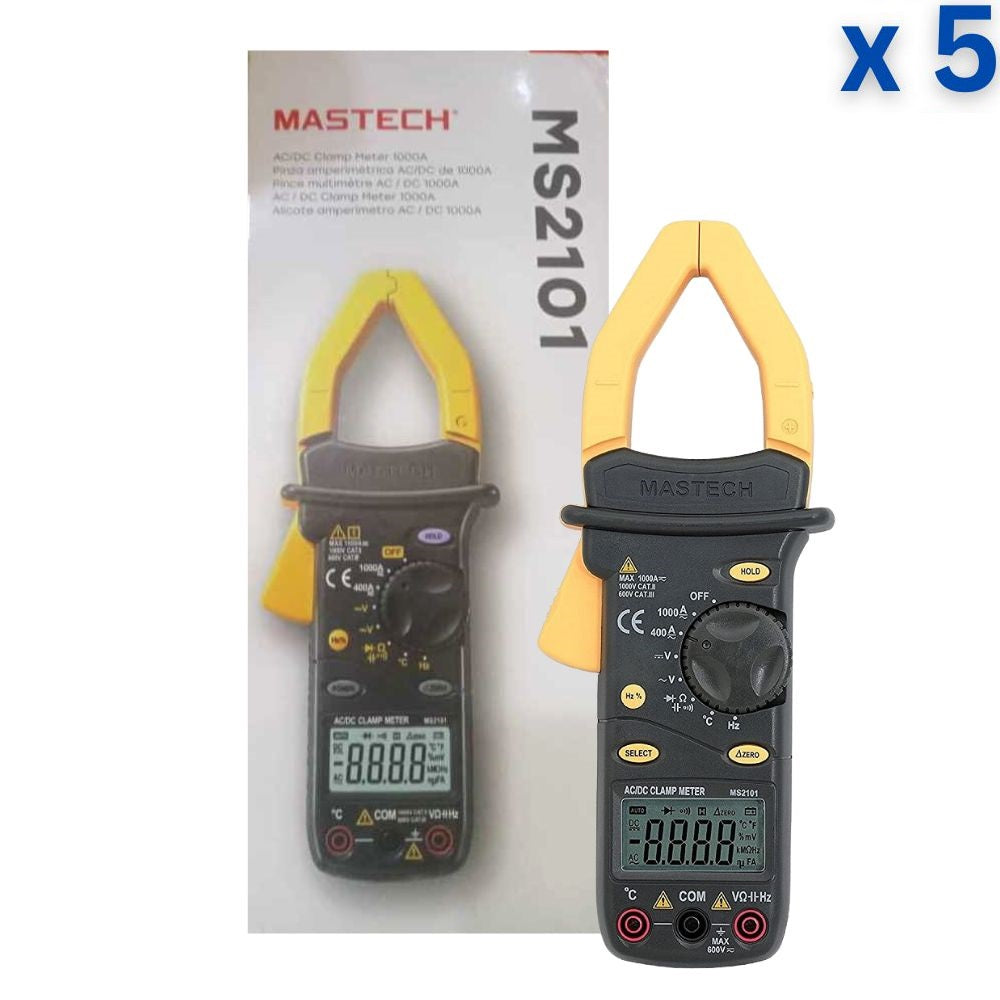

- Mastech MS2101 (Original) Digital AC/DC Clamp Meter
- K type thermocouple
