Description

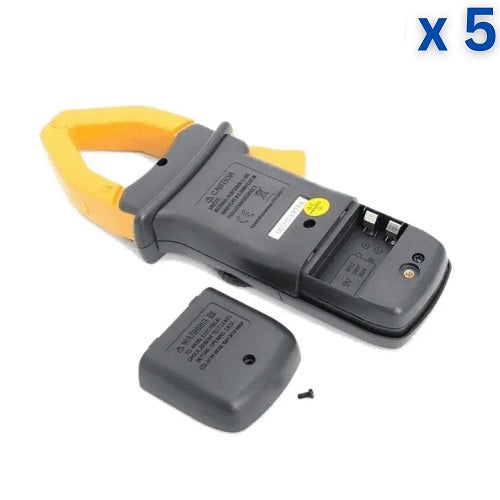

The MS2001C AC Digital Clamp Meters are designed for measure DC and AC voltage, DC current, resistance, continuity, and test diodes.
Technical Specification:
- Brand : Mastech
- Type : Digital AC Clamp Meter
- Model : MS2001c
- Display : LCD Display
- Display Counts : 2000
- Jaw Opening Size : 42 mm
- Voltage Range (DC) : 0-1000 V
- Voltage Accuracy (DC) : ±(2.0 % + 2 Digits)
- Current Range (AC) : 0-1000 A
- Current Accuracy (AC) : ±(2.0 % + 7 Digits)
- Voltage Range (AC) : 0-750 V
- Voltage Accuracy (AC) : ±(1.0 % + 5 Digits)
- Resistance Accuracy : ±(1.0 % + 3 Digits)
- Temperature Range : -40° to 750°C
- Temperature Accuracy : ±(1.0 % + 5 Digits)
- Power : 9 V 6F22 Battery
- Operating Environment : 0° to 40°C
- Storage Environment : -10° to 50°C
- Maximum Voltage Range (DC) : 601-1000 V
- AC Current Range : 601-1000 A
- Maximum Voltage Range (AC) : 601-750 V
- Resistance Range (Ohm) : 0-2000 ?
- Weight : 194 g
- Dimensions : 198x79x38 mm
Features:
- Continuity Buzzer <50 ?
- Data Hold Functions
- Backlight Display
- True Root Mean Square Measurement
- Maximum Measurement
- Data Hold
- Overrange indication
Pin Description:
Applications:
- Industrial Area
- Electrical Area
- Home Workshop
- DIY Projects
Package Includes:
- K type Thermocouple (MS2001C)
- AAA Batteries
- Test Leads
- User Manual
