Description

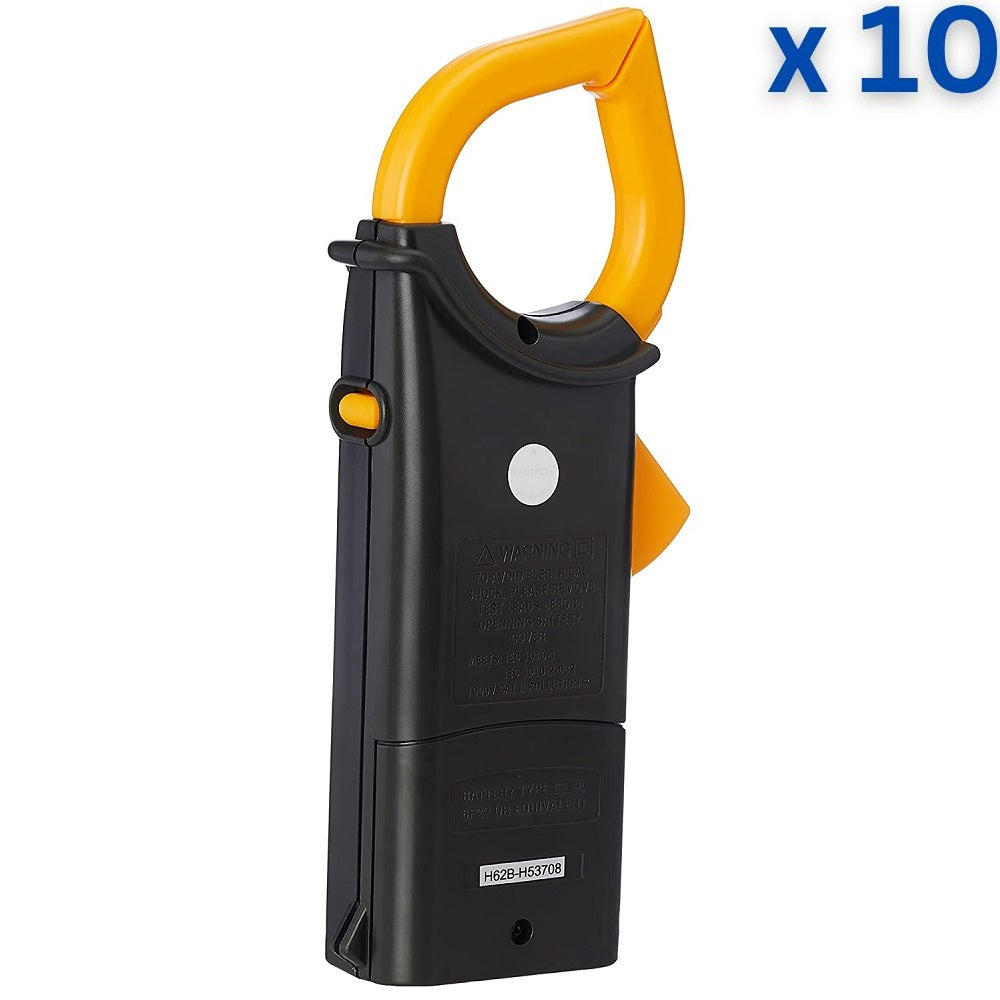

The M266 digital Clamp Meters are designed for contactless measurement of AC values, as well as DC and AC voltage, resistance, circuit continuity and insulation tests.
Technical Specification:
- Model No : M266
- Type of Product : Digital AC Clamp Meter
- Display : 3½ Digits LCD Display
- Display Counts : 2000
- Jaw Opening Size : 50 mm
- Voltage Range (DC) : 0-1000 V
- Voltage Accuracy (DC) : ±(0.8 % + 3 Digits)
- Current Range (AC) : 0-1000 A
- Current Accuracy (AC) : ±(3.0 % + 10 Digits)
- Voltage Range (AC) : 0-750 V
- Voltage Accuracy (AC) : ±(1.2 % + 5 Digits)
- Resistance Accuracy : ±(1.0 % + 8 Digits)
- Power : 9 V 6F22 Battery
- Operating Environment : 0° to 40°C
- Storage Environment : -10° to 50°C
- Relative Humidity : < 80% RH
- Maximum Voltage Range (DC) : 601-1000 V
- AC Current Range : 601-1000 A
- Maximum Voltage Range (AC) : 601-750 V
- Resistance Range (Ohm) : 0-20 k?
- Weight : 268 g
- Dimensions : 235x96x46 mm
Features:
- Jaw opening up to 50mm/2.0 inch
- Test AC/DC voltage, AC current, resistance
- With optional 500V insulation tester unit
- Diode check and continuity test
- Data hold with optional 500V insulation tester unit
- With full overload protection
- With low battery indication and over-range indication
Pin Description:
Applications:
- Electrical Maintenance
- Automotive
Package Includes:
- Test Leads
- Battery
- Operating Manual
