Description

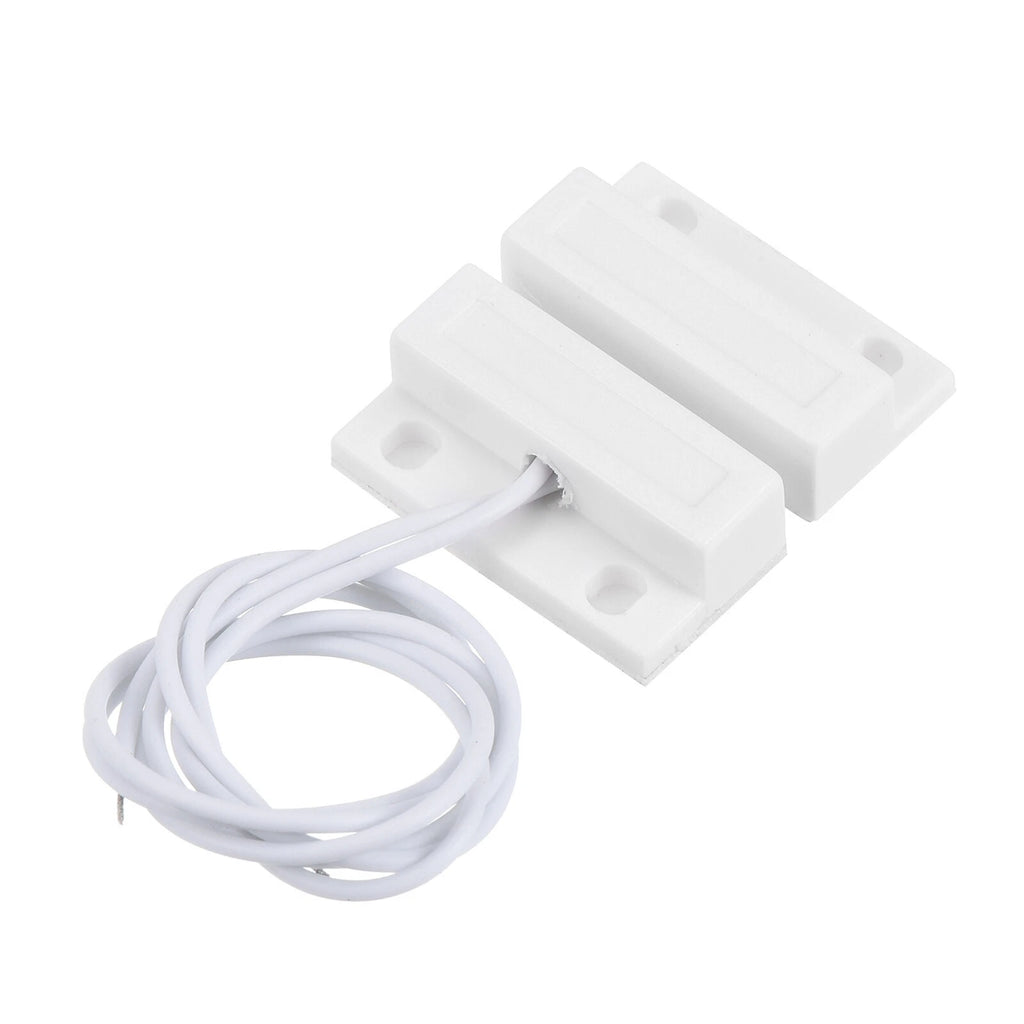

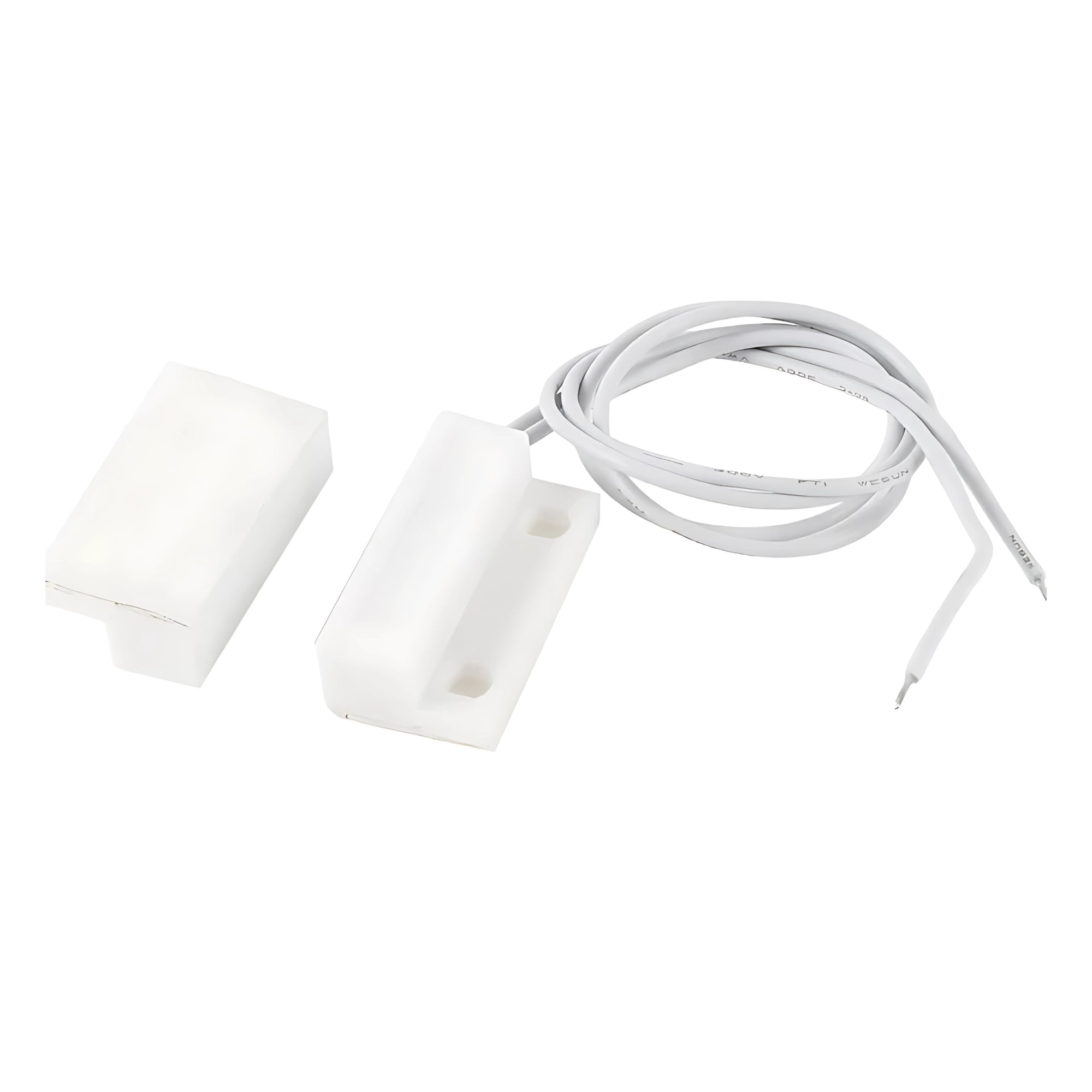

Magnetic Reed Switch Door Sensor with Wire MS-1 White (Normal Close)
The MS-1 Magnetic Reed Switch is a surface-mount magnetic contact sensor designed for door and window security applications. It consists of two components – the reed switch (with wire) and the magnet.
When the magnet is close to the switch, the NC (Normally Closed) contact remains closed. If the door or window is opened and the magnet moves away, the circuit breaks, triggering an alarm or control signal.
It is commonly used in intrusion alarms, automation systems, and access control solutions.
Technical Specifications:
- Model: MS-1
- Type: Magnetic Reed Switch (Normally Closed – NC)
- Shape: Rectangular surface mount with screw holes
- Color: White

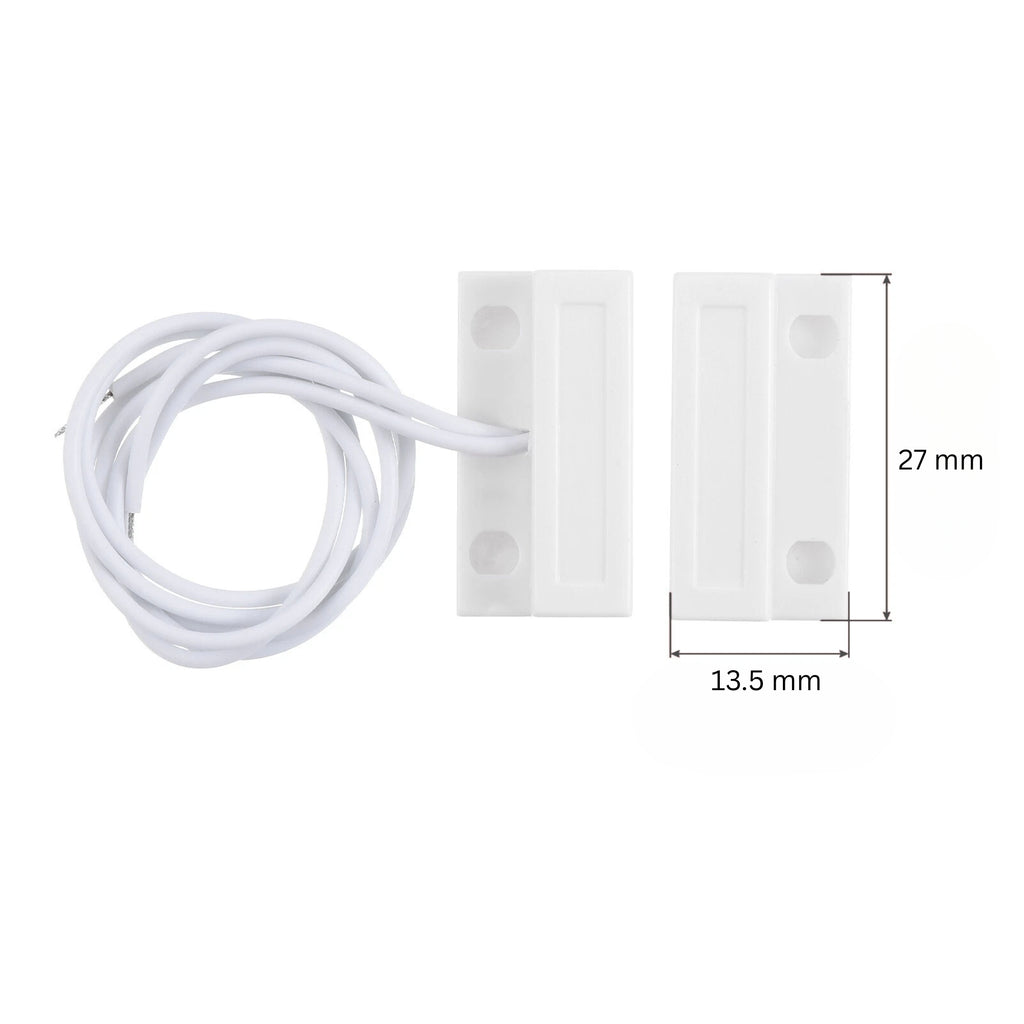

- Dimensions:
- Switch Part: 27 mm × 13.5 mm
- Magnet Part: 27 mm × 13.5 mm
- Wire Length: 30 cm
- Material: ABS plastic housing
- Contact Rating: 100 mA @ 100 V DC (typical)
- Operating Gap: 15–25 mm
- Wire Leads: 2-wire connection, approx. 300 mm length
- Switch Type: Reed contact, NC (breaks when magnet is separated)
Features:
- Normally Closed (NC) reed switch for secure detection
- Compact rectangular design with screw holes for firm mounting
- Easy surface-mount installation on doors or windows
- High sensitivity and stable performance
- ABS plastic housing for durability
- Works with most wired alarm and automation systems
- Comes with pre-attached wires for quick connection
Applications:
- Home Security: Detects unauthorized opening of doors and windows
- Office/Commercial Security: Access control and intrusion detection
- Cabinet & Locker Security: Prevents tampering or unauthorized access
- Retail Shops: Secures glass showcases and stock areas
- Automation & IoT: Entry monitoring in smart home systems
