Description

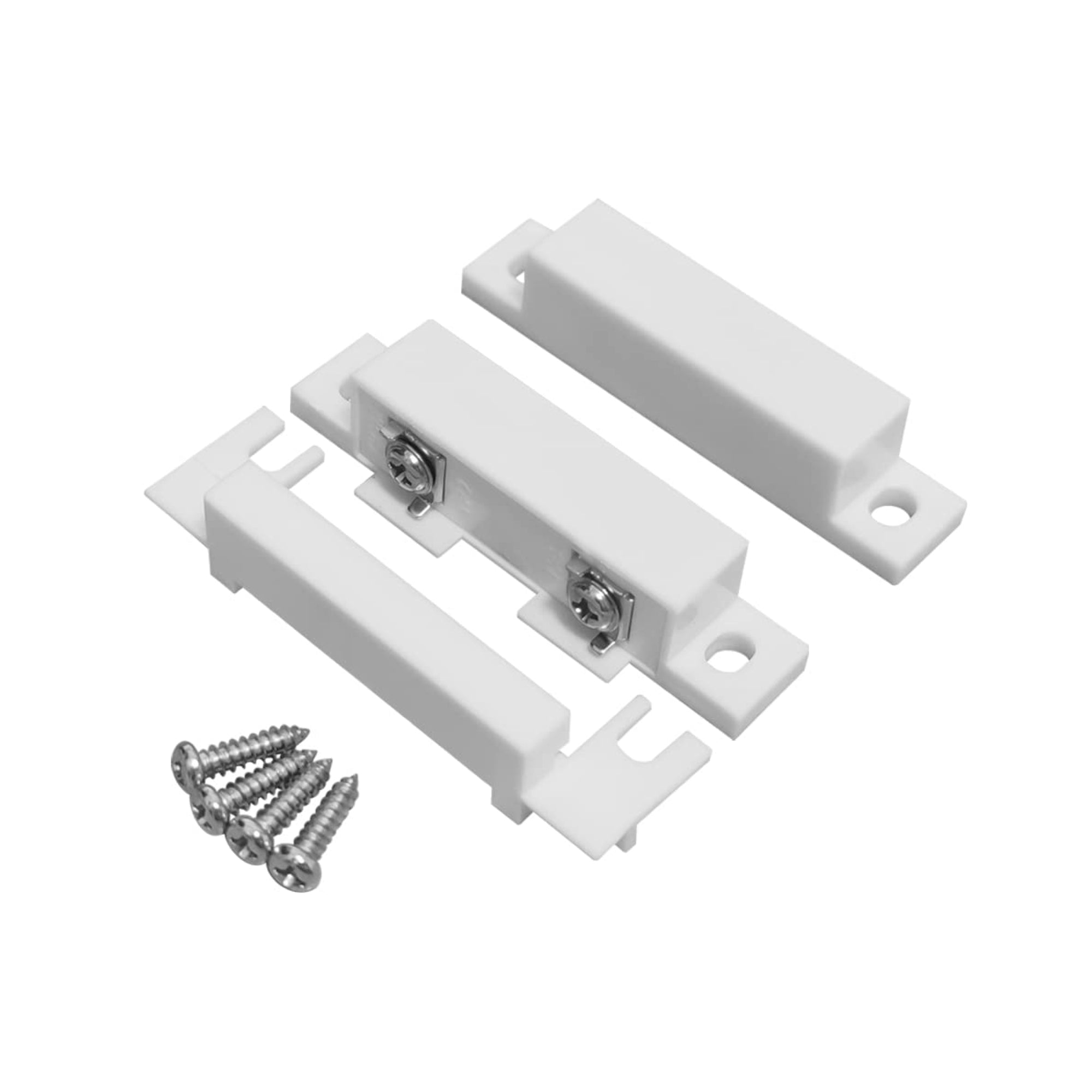

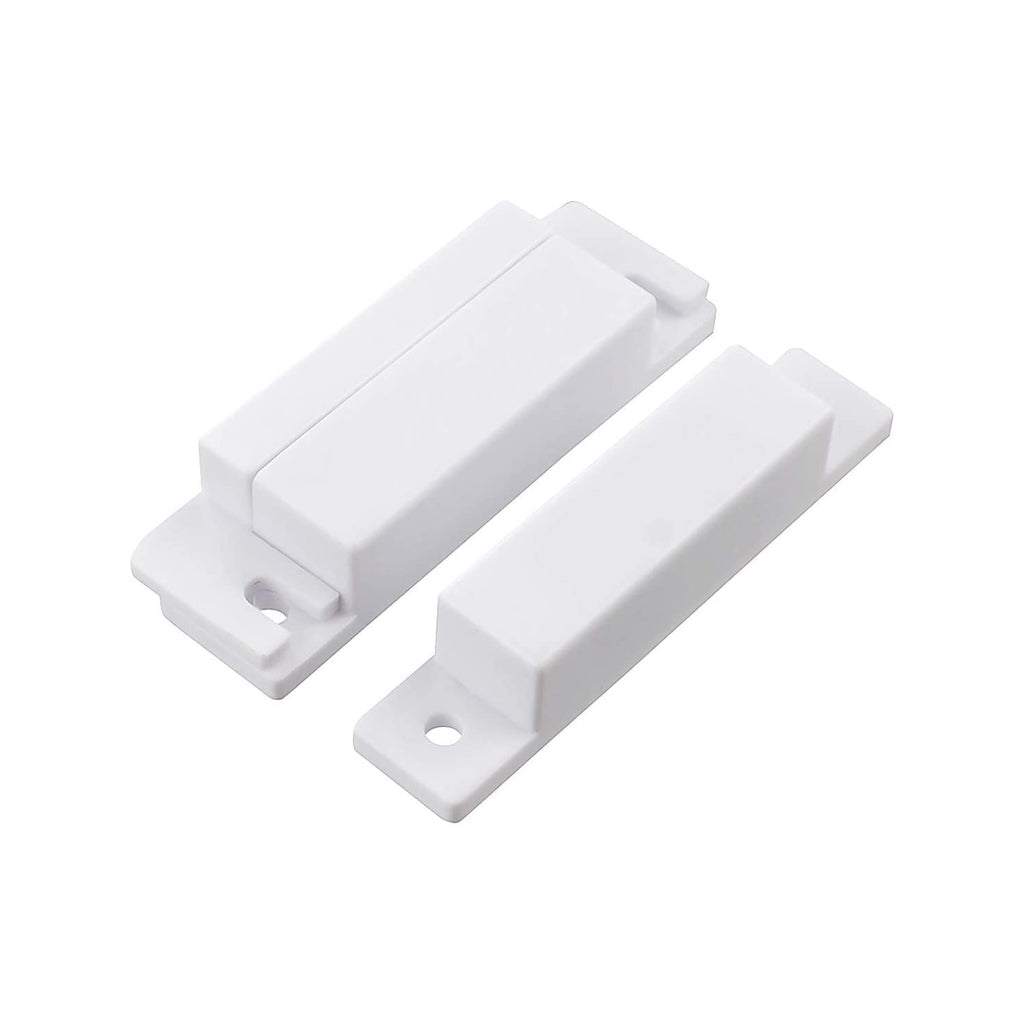

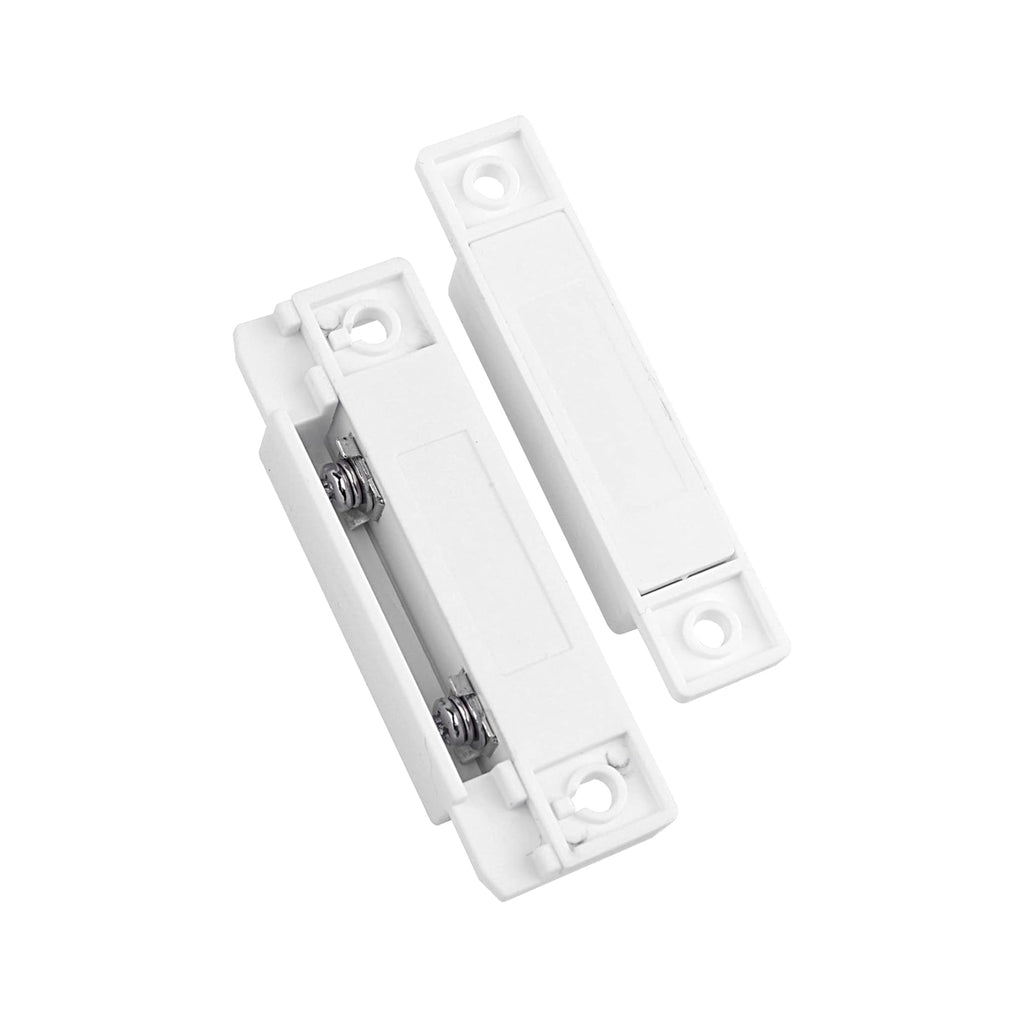

The MS2 Magnetic NC Switch is a surface-mounted magnetic contact sensor designed for door and window security. It consists of two parts: a switch unit containing a reed contact and a magnet unit.
This model operates as NC (Normally Closed), meaning the circuit remains closed when the magnet is aligned with the switch. When the magnet is separated (door/window opens), the circuit breaks, triggering an alarm or control signal.
It is widely used in home security systems, offices, warehouses, automation, and industrial access control.
Technical Specifications:
- Model: MS2 Magnetic Switch (NC Type)
- Type: Normally Closed (NC) Reed Switch
- Design: Rectangular surface-mount type with screw holes
- Material: ABS plastic housing (white finish)

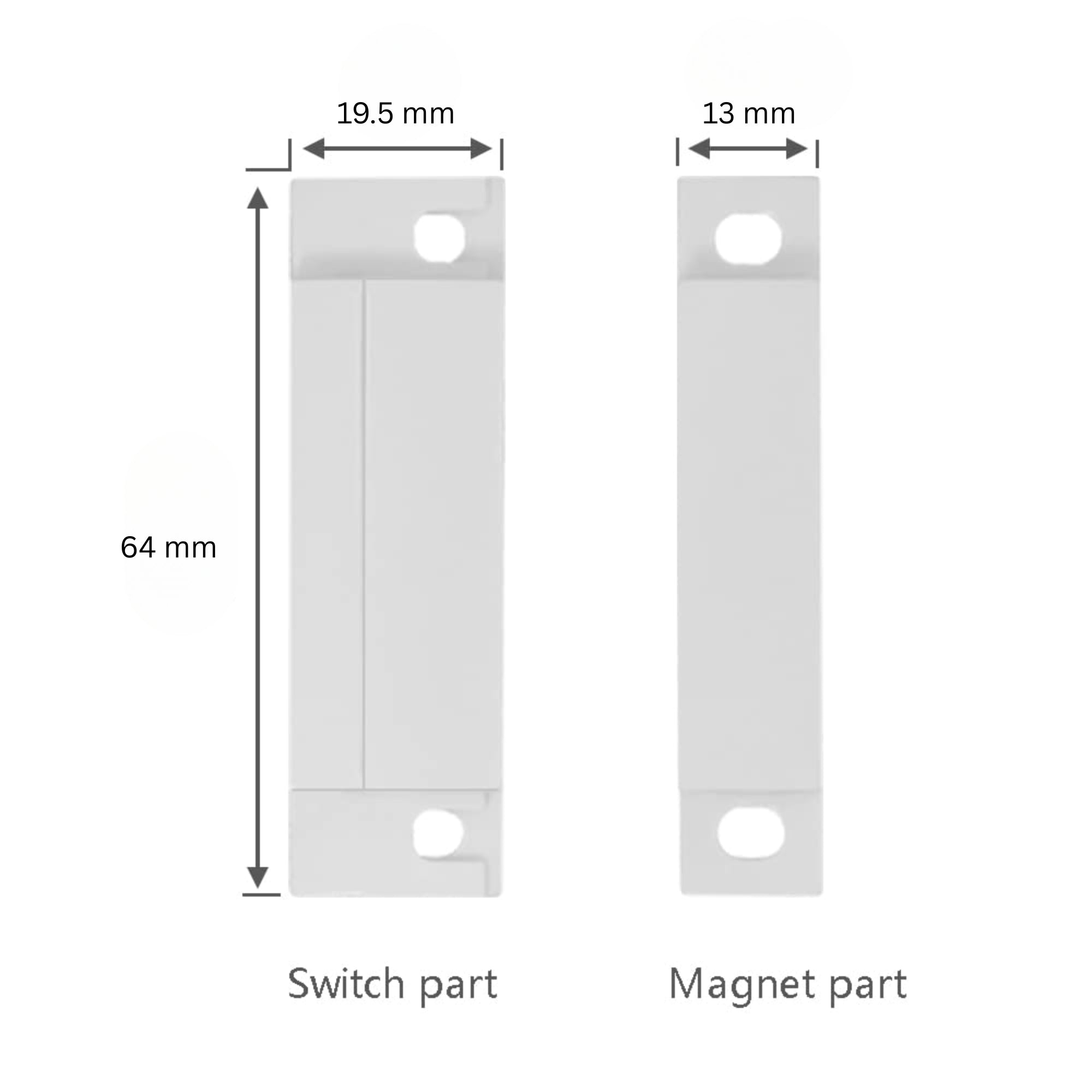

- Switch Part Dimensions:
- Length: 64 mm
- Width: 19.5 mm
- Magnet Part Dimensions:
- Length: 64 mm
- Width: 13 mm
- Operating Gap (Sensing Distance): 20–30 mm
- Contact Rating: 100 mA @ 100 V DC (typical)
- Switch Type: Reed contact (NC – breaks when magnet is moved away)
- Lead Connection: Screw terminals / wire leads (depending on variant)
- Mounting Style: Surface mount with screws (included)
Features:
- Normally Closed (NC) magnetic contact switch
- Rectangular surface-mount design with screw holes for secure fitting
- Wide sensing gap for reliable detection
- Durable ABS housing for long-lasting performance
- Compatible with wired alarm systems, access control, and automation controllers
- Screw terminals for easy installation and maintenance
- Supplied with screws for quick mounting
Applications:
- Home Security: Detects door/window opening for burglar alarms
- Office/Commercial Security: Integrated with access control and security systems
- Industrial Use: Protects cabinets, rolling shutters, gates, and restricted enclosures
- Retail Security: Ensures security of showcases, stock rooms, and entry points
- Automation Systems: Works with IoT and smart home systems for entry monitoring
