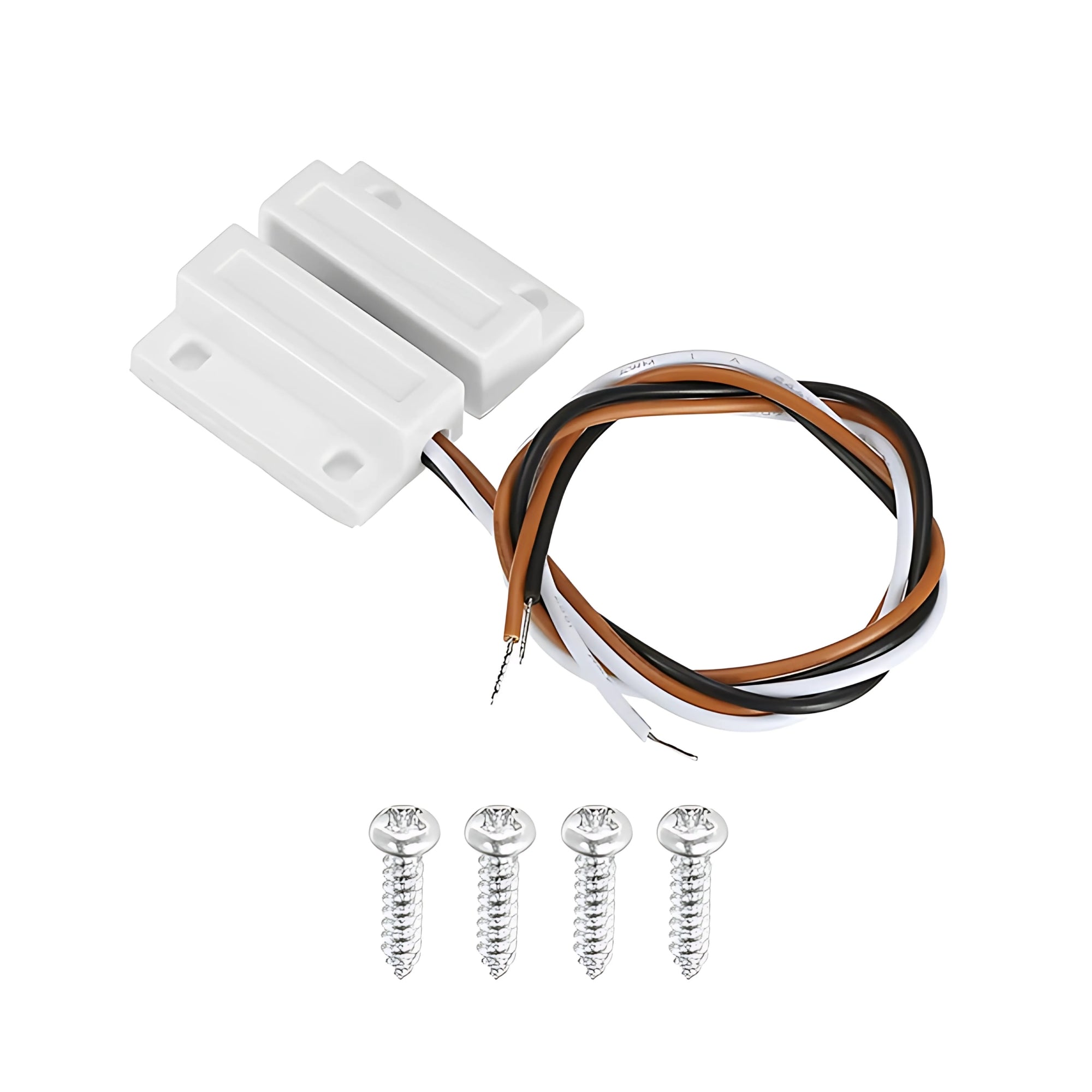

Magnetic Reed Switch Door Sensor with Wire MS-1 White (Normal Close/Normal Open)
The MS-1 Magnetic Reed Switch (NC/NO) is a compact surface-mounted magnetic contact sensor designed for doors, windows, cabinets, and security enclosures. It has two working modes: NC (Normally Closed) and NO (Normally Open), selectable via wiring. The circuit either stays closed or open when the magnet is aligned, and changes state when the door/window opens. This dual-mode functionality makes it highly versatile for intrusion alarms, automation, and access control systems.
Technical Specifications:
- Model: MS-1 (Dual NC/NO)
- Type: Magnetic Reed Switch with NC/NO selectable wiring
- Shape: Rectangular surface-mount design with screw holes
- Color: White

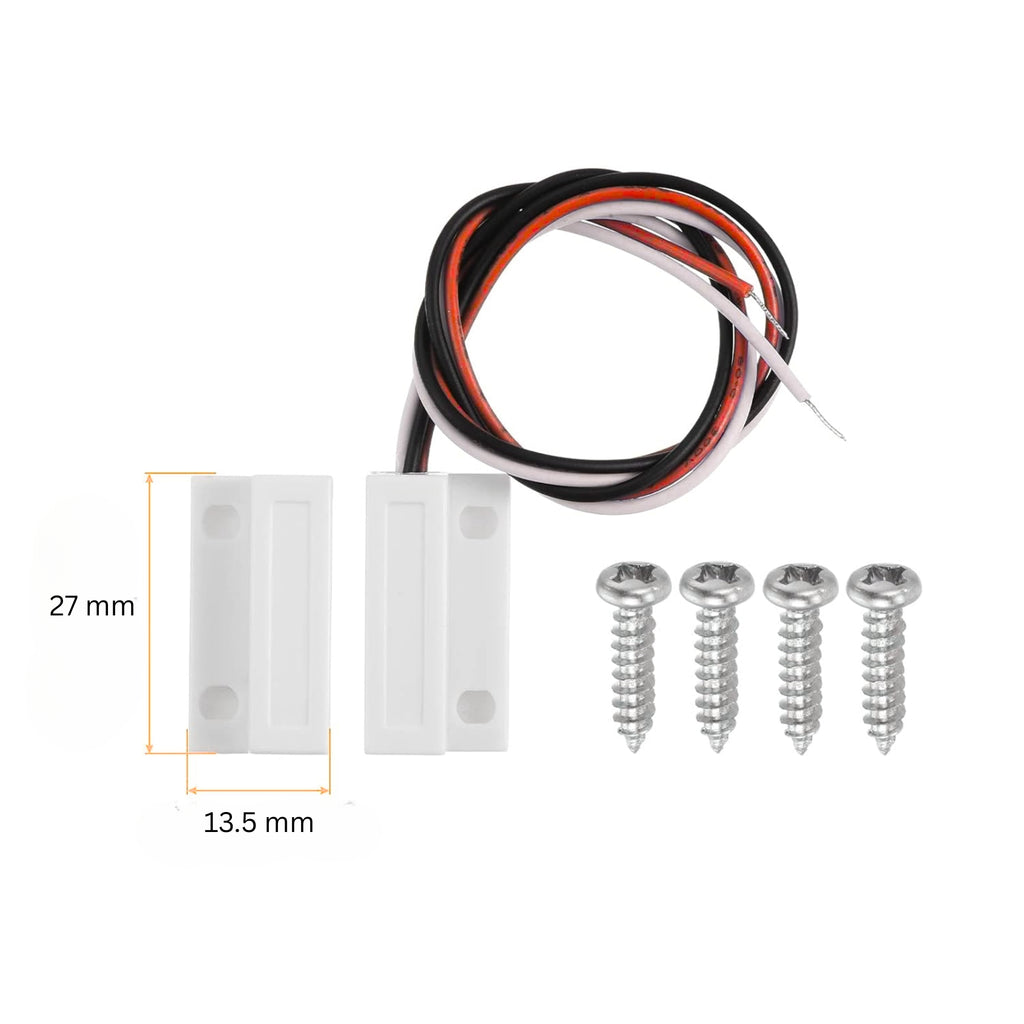

- Dimensions:
- Switch Part: 27 mm × 13.5 mm
- Magnet Part: 27 mm × 13.5 mm
- Wire Length: 30 cm
- Material: ABS plastic housing
- Contact Rating: 100 mA @ 100 V DC (typical)
- Operating Gap: 15–25 mm
- Wire Leads: 3-wire connection (Brown, Black, White) for NC/NO option
- Switch Type: Reed contact (supporting both NC and NO)
- Installation: Screw mount (screws included)
Features:
- Dual working mode: NC (Normally Closed) / NO (Normally Open)
- Easy selection via 3-wire connection
- Rectangular, surface-mounted design with mounting holes
- ABS plastic housing for durability
- Compatible with most wired alarm and access systems
- Supplied with screws for easy installation
- Works reliably on wooden, metal, or plastic doors/windows
Applications:
- Home Security: Door/window intrusion detection
- Office & Commercial Security: Access control systems
- Cabinet & Locker Monitoring: Prevents unauthorized access
- Retail Security: Securing showcases and storerooms
- Automation & IoT Systems: Works with smart controllers for monitoring and automation
