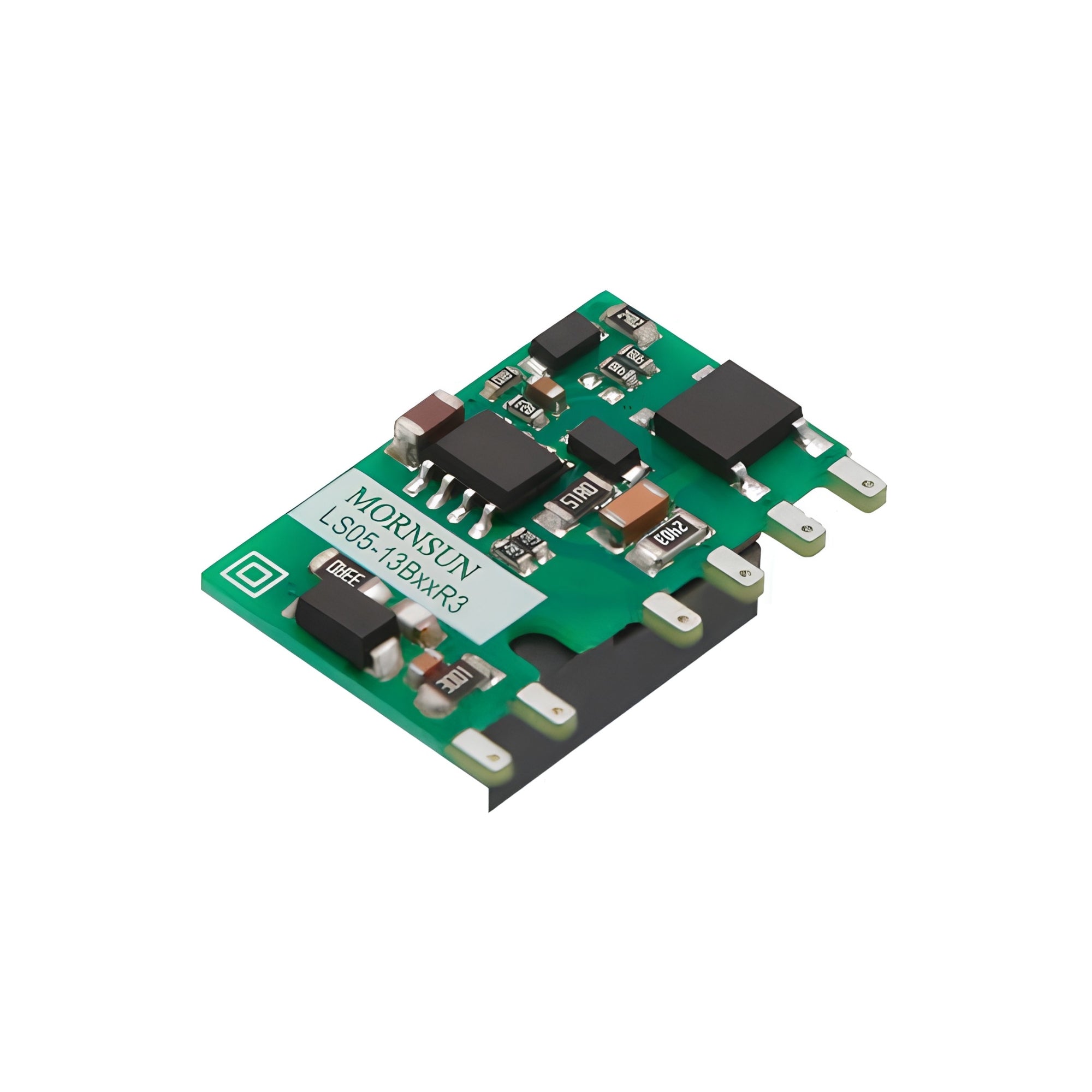

LS05-13B05R3 - 5V AC/DC-On-board Converter Module

The LS05-13B0SR3 Mornsun SMPS is a compact AC-DC isolated power supply module designed for embedded electronics and industrial applications. It converts a wide AC or DC input voltage into a stable regulated DC output while providing high efficiency, reinforced isolation, and reliable protection features. The module is widely used in automation systems, smart home devices, instrumentation, IoT products, and low-power industrial control circuits. Its miniature PCB-mount design allows direct integration into electronic boards where space-saving and dependable power conversion are important.

Technical Specifications:

• Input Voltage Range: 85–305VAC / 70–430VDC
• Output Power: 5W
• Output Voltage: 5V DC
• Isolation Voltage: Up to 3600VAC
• Operating Temperature: -40°C to +85°C

Features:

• Wide AC/DC input voltage support
• Compact PCB mount design with high power density
• Low no-load power consumption (~0.1W)
• Built-in short circuit and over-current protection
• High isolation and industrial-grade reliability

Applications:

• Industrial control systems
• Smart home electronics
• IoT and embedded devices
• Power instrumentation equipment
• Automation and communication systems
