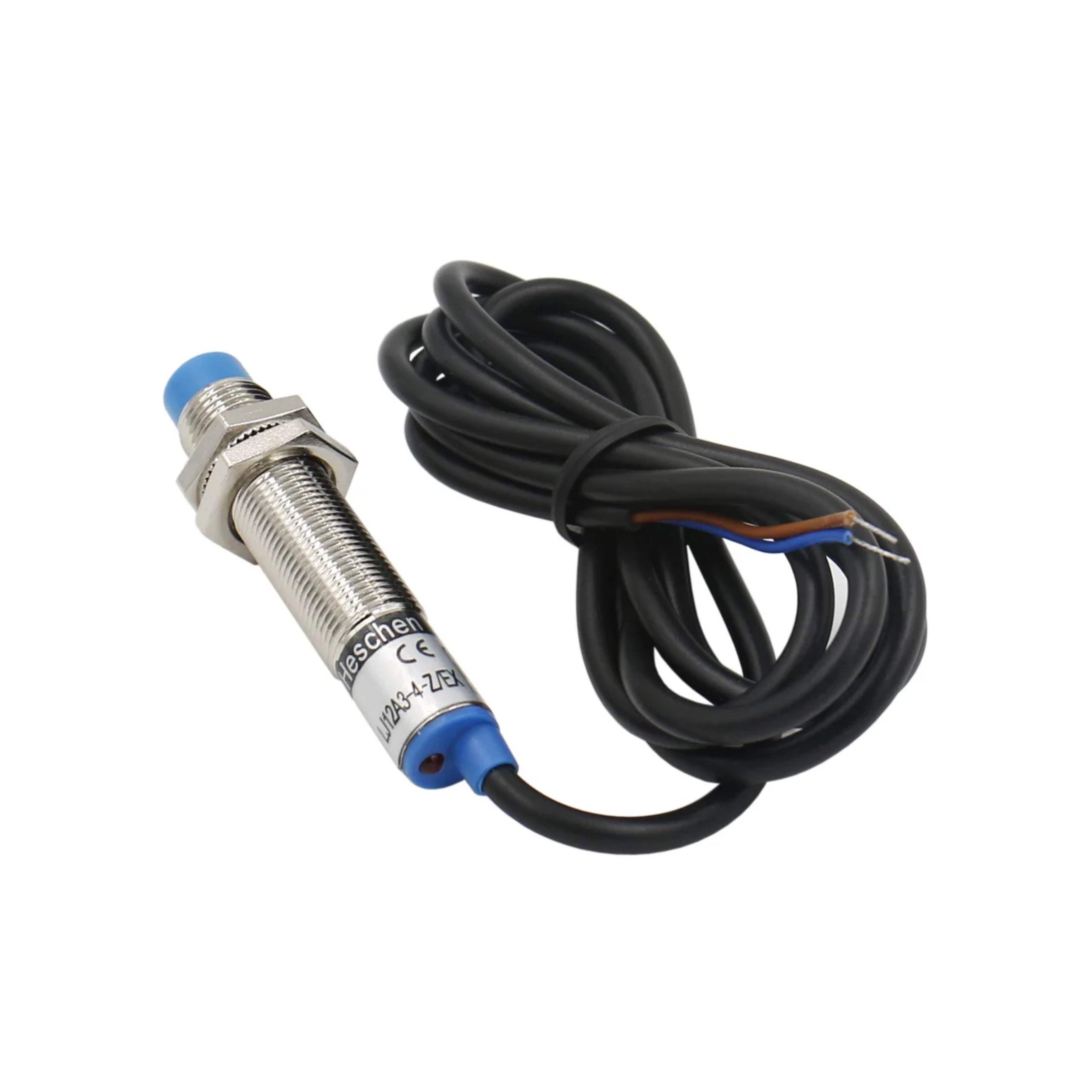

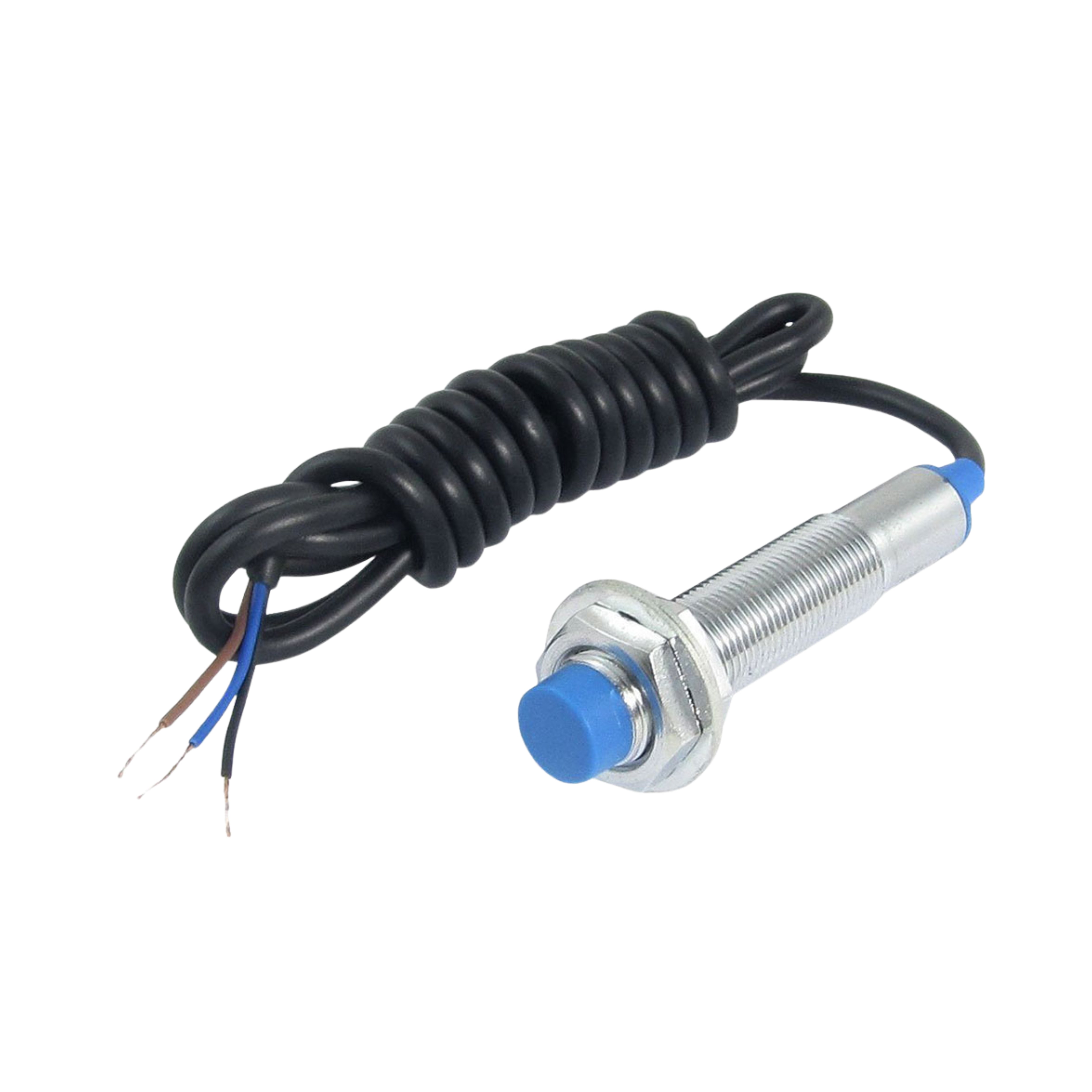

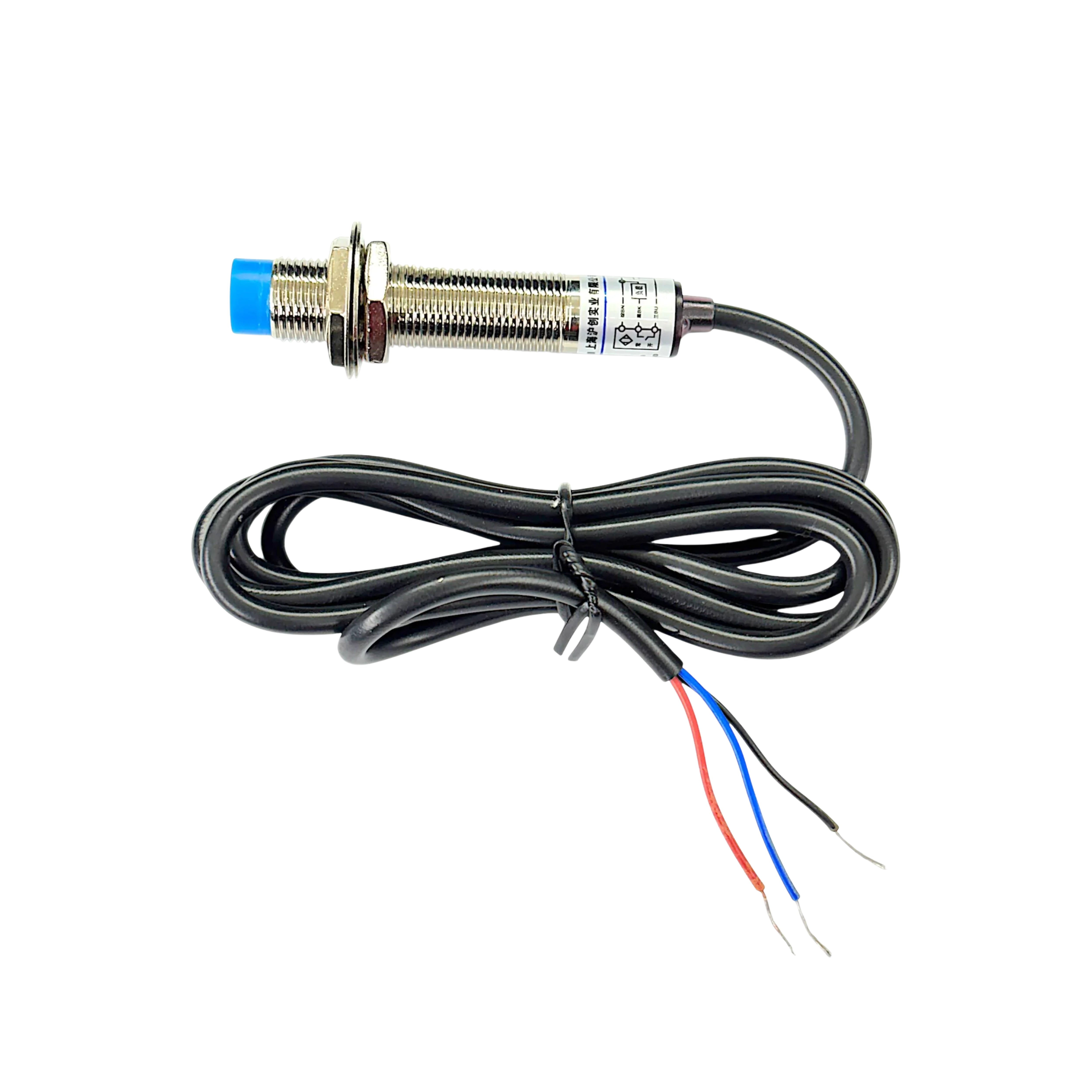

LJ12A3-4-Z/BX NPN Inductive Proximity Sensor

The LJ12A3-4-Z/BX is an inductive proximity sensor designed for non-contact detection of metallic objects. It operates by generating an electromagnetic field and detecting changes when a metal object enters its sensing range. This sensor features an NPN normally open (NO) output, making it suitable for interfacing with microcontrollers, PLCs, and industrial control systems. With a rugged threaded metal housing and reliable performance, it is widely used in automation, position sensing, and object detection applications.

Technical Specifications:

• Model: LJ12A3-4-Z/BX

• Sensor Type: Inductive Proximity Sensor

• Output Type: NPN Normally Open (NO)

• Sensing Distance: 4 mm

• Operating Voltage: 6V to 36V DC

• Output Current: Up to 300 mA

• Detection Object: Metallic objects only

• Response Frequency: ~500 Hz

• Operating Temperature: −25°C to +70°C

• Housing Material: Nickel-plated brass

• Thread Size: M12

• Cable Length: Approximately 1 meter

• Wire Configuration: Brown (VCC), Blue (GND), Black (Signal Output)

• Protection Rating: Typically IP67

Features:

• Non-contact detection of metal objects

• High reliability and long operational life

• Fast response time

• Compact M12 threaded cylindrical design

• Easy installation with mounting nuts

• Wide operating voltage range

• Strong anti-interference capability

• Suitable for harsh industrial environments

Applications:

• Industrial automation systems

• Position and limit detection

• Conveyor systems and object counting

• Machine tools and CNC equipment

• Robotics and automation projects

• Safety and control systems

• Metal detection in manufacturing processes
