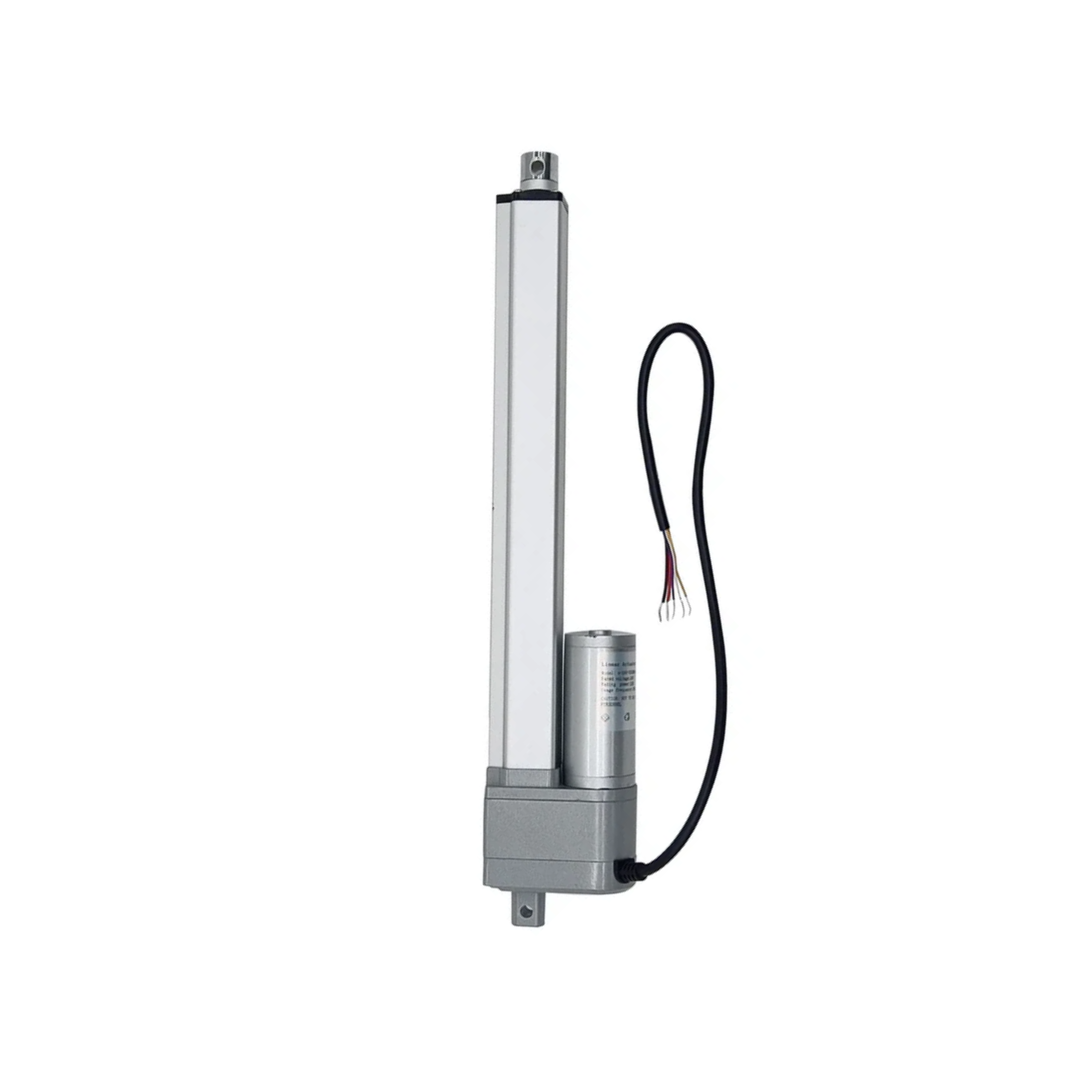

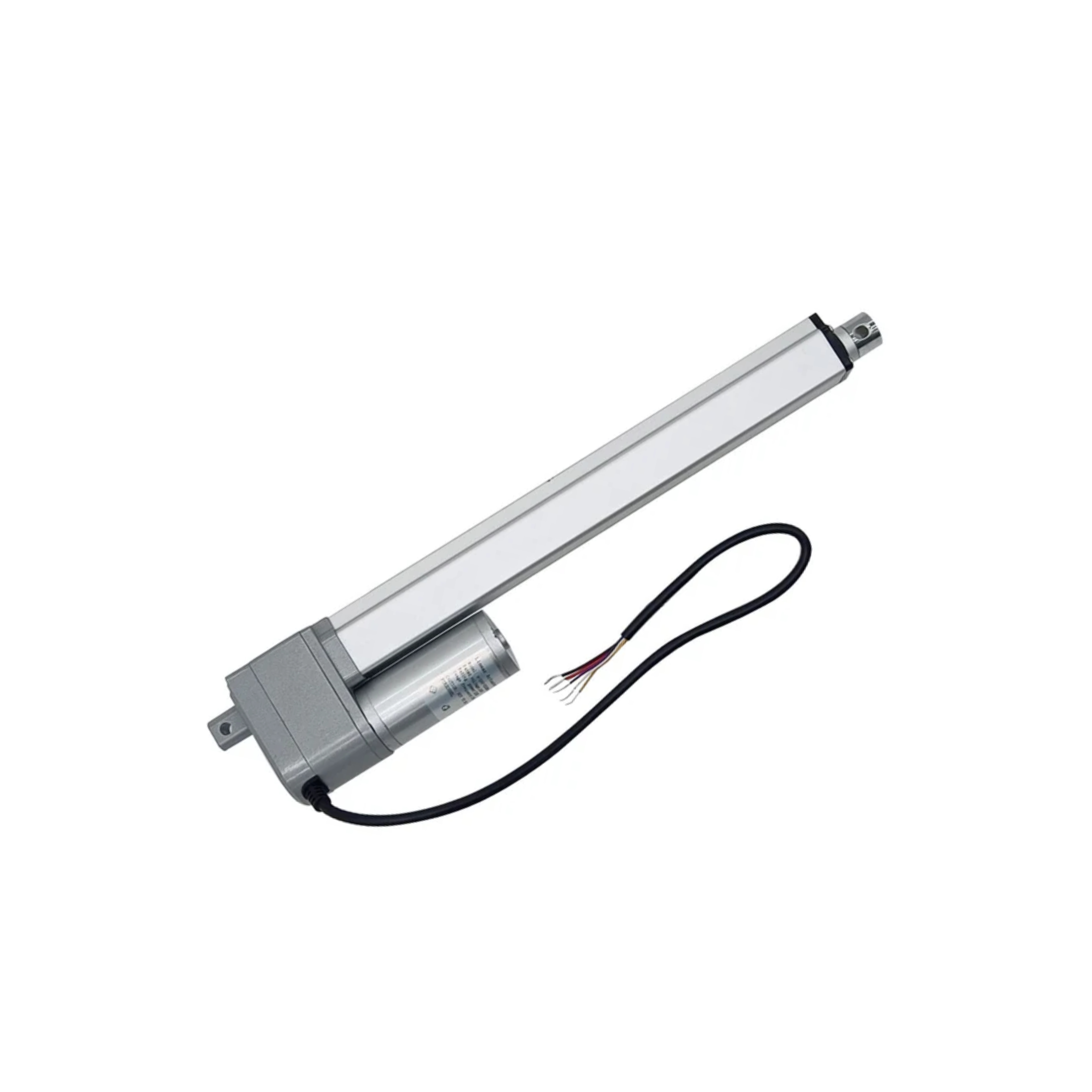

Linear Actuator 300mm

A 300mm linear actuator is an electromechanical device designed to convert rotational motion from a motor into linear motion. It is commonly used in automation systems to push, pull, lift, or position loads with precision. The actuator typically consists of a DC motor, gearbox, and lead screw mechanism enclosed in a durable aluminum housing. With a stroke length of 300mm, it provides extended movement range, making it suitable for applications requiring controlled linear displacement.

Technical Specifications:

• Operating Voltage: 12V or 24V DC (model dependent)

• Stroke Length: 300 mm

• Load Capacity: Typically 100 N to 1500 N (varies by model)

• Speed: ~5 mm/s to 50 mm/s (depending on load and model)

• Duty Cycle: ~20% (e.g., 2 minutes ON, 8 minutes OFF)

• Control Type: DC motor (forward/reverse polarity control)

Features:

• Provides smooth and precise linear motion

• Built-in limit switches for safe operation

• Compact and robust aluminum construction

• Simple control using polarity reversal

• Low noise operation with stable performance

• Wide range of load and speed options

• Maintenance-free design with long service life

Applications:

• Home automation systems (adjustable beds, windows, curtains)

• Industrial automation and machinery

• Robotics and motion control systems

• Solar panel positioning systems

• Medical equipment and rehabilitation devices

• Automotive applications (lifting, seat adjustment)

• DIY and engineering projects
