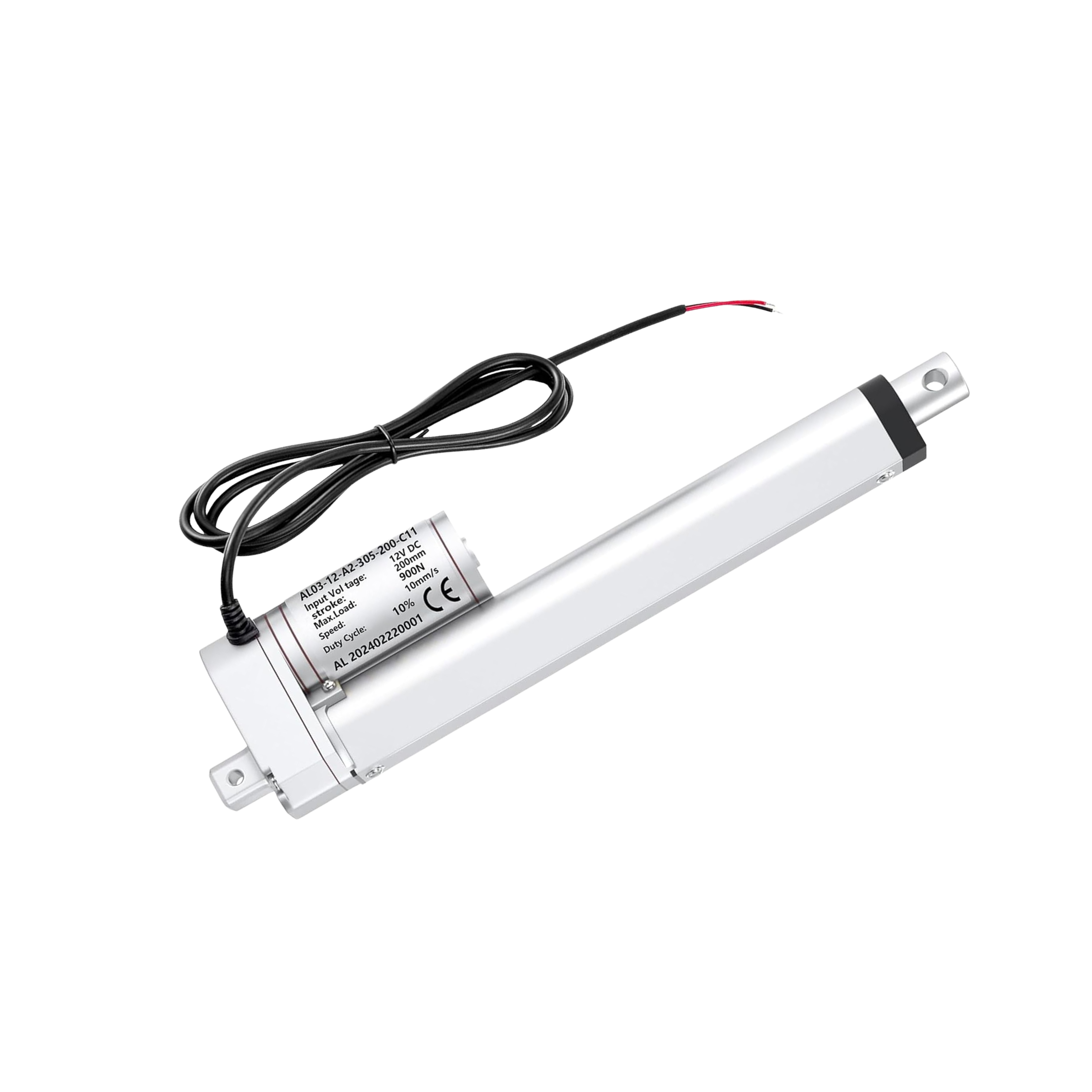

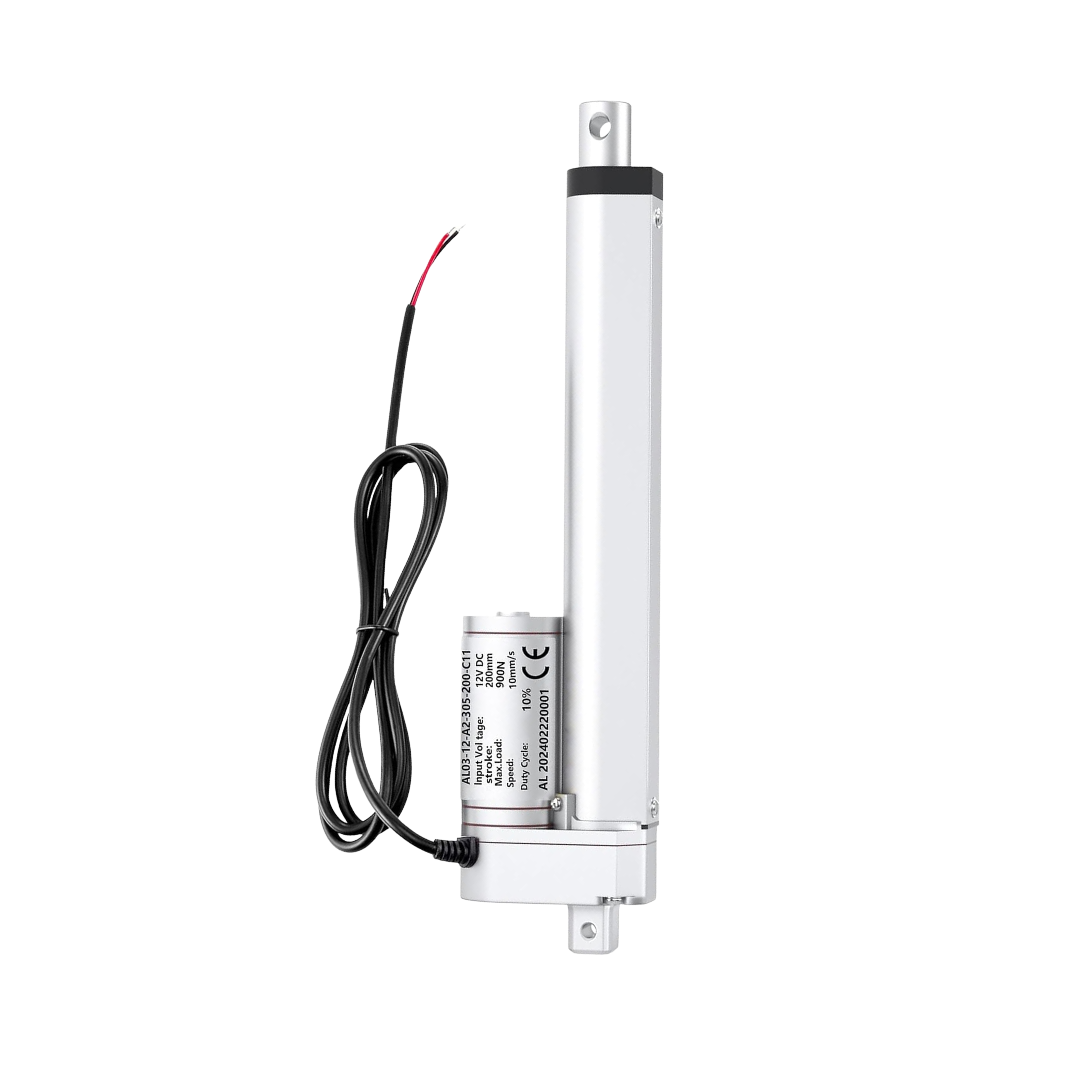

Linear Actuator 200mm

A 200mm linear actuator is a compact electromechanical device that converts rotary motion from a DC motor into linear motion. It is designed for applications requiring controlled push and pull movement over a 200mm stroke length. These actuators are widely used in automation systems, offering reliable performance, precise positioning, and smooth operation in both light-duty and heavy-duty environments. They typically feature a robust aluminum body with an integrated gearbox and lead screw mechanism for efficient motion transfer.

Technical Specifications:

• Operating Voltage: Typically 12V DC (also available in 24V variants)

• Stroke Length: 200 mm

• Load Capacity: Around 100 N to 6000 N (depending on model)

• Speed: ~4 mm/s to 15 mm/s (depending on load and model)

• Duty Cycle: ~10–20%

• Control Method: Polarity reversal (forward/reverse motion)

• Limit Switches: Built-in (automatic stop at end limits)

• Material: Aluminum alloy housing

• Protection Rating: Typically IP54 to IP65

• Operating Temperature: -10°C to +60°C

Features:

• Compact size with 200mm stroke for medium-range motion

• High load handling capability for industrial and DIY use

• Built-in limit switches for safe and automatic stopping

• Simple operation using DC polarity reversal

• Durable and corrosion-resistant aluminum construction

• Low noise and stable performance

• Energy-efficient with minimal maintenance requirements
