Description

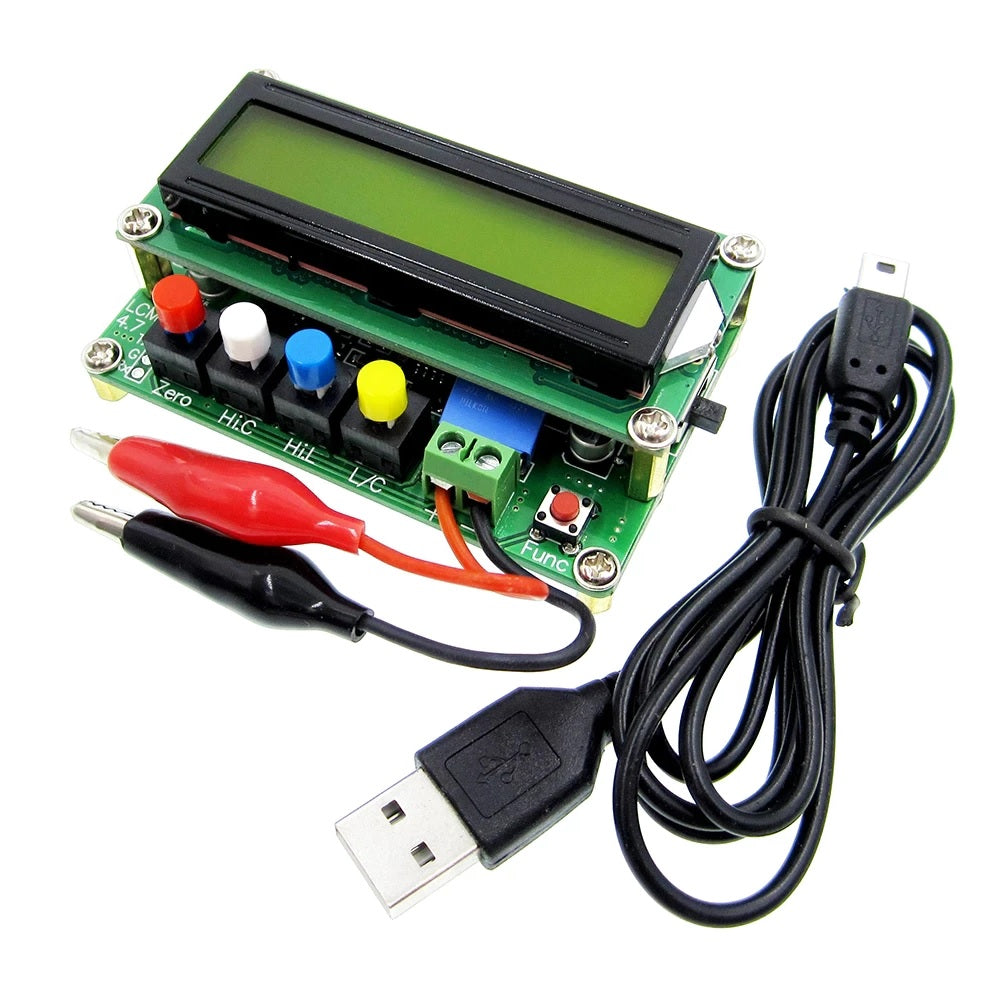

The LC100A 2.5 LCD Digital High Precision Inductance/Capacitance (L/C) Meter can measurevthe capacitance of 1pF-100mF and the inductance of 1uH – 100H. Based on the principle of LC resonance, this instrument incorporates the precision measurement calculation of high-speed microcontroller. It can measure the inductance below 1uH and the small capacitance less than 1pF.
The biggest feature of the LC100A 2.5 LCD Digital High Precision Inductance/Capacitance (L/C) Meter is especially suitable for microwave production and measurement of switching power supply transformers and filter inductors. This product has an absolute advantage over small-value test in comparison with the finished inductor and capacitance meter (such as 6243 series) sold on the market.
Technical Specification:
- Supply voltage: 5V
- Display: 1602 LCD
- Interface to the power supply: Mini USB or Φ5.5 DC Socket
- Effective display digits: 4 digits
- LCD display mode: 1602
- Size: Approx. 85mm*50mm*20mm (L*W*H)
Features:
- LC Resonance measurement method of capacitance, Inductance and Large Inductance
- Charge-discharge method of measurement of large capacitance
- Interfaces with power supply by Mini USB or 5.5 DC Socket
- Detachable LED Display
- Features 5 different buttons including various options
- Small size, light weight and easy to carry
Pin Description:
Test and Measuring InstrumentsTest and Measuring InstrumentsApplications
- Microwave manufacture
- Measuring switching power supply transformer, filter inductance
